UVD60 (UVD6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 000670000 - 000789999) (2008) Weight And Belt Drive Components 72" LAZER below SN 600,000 and all AS Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

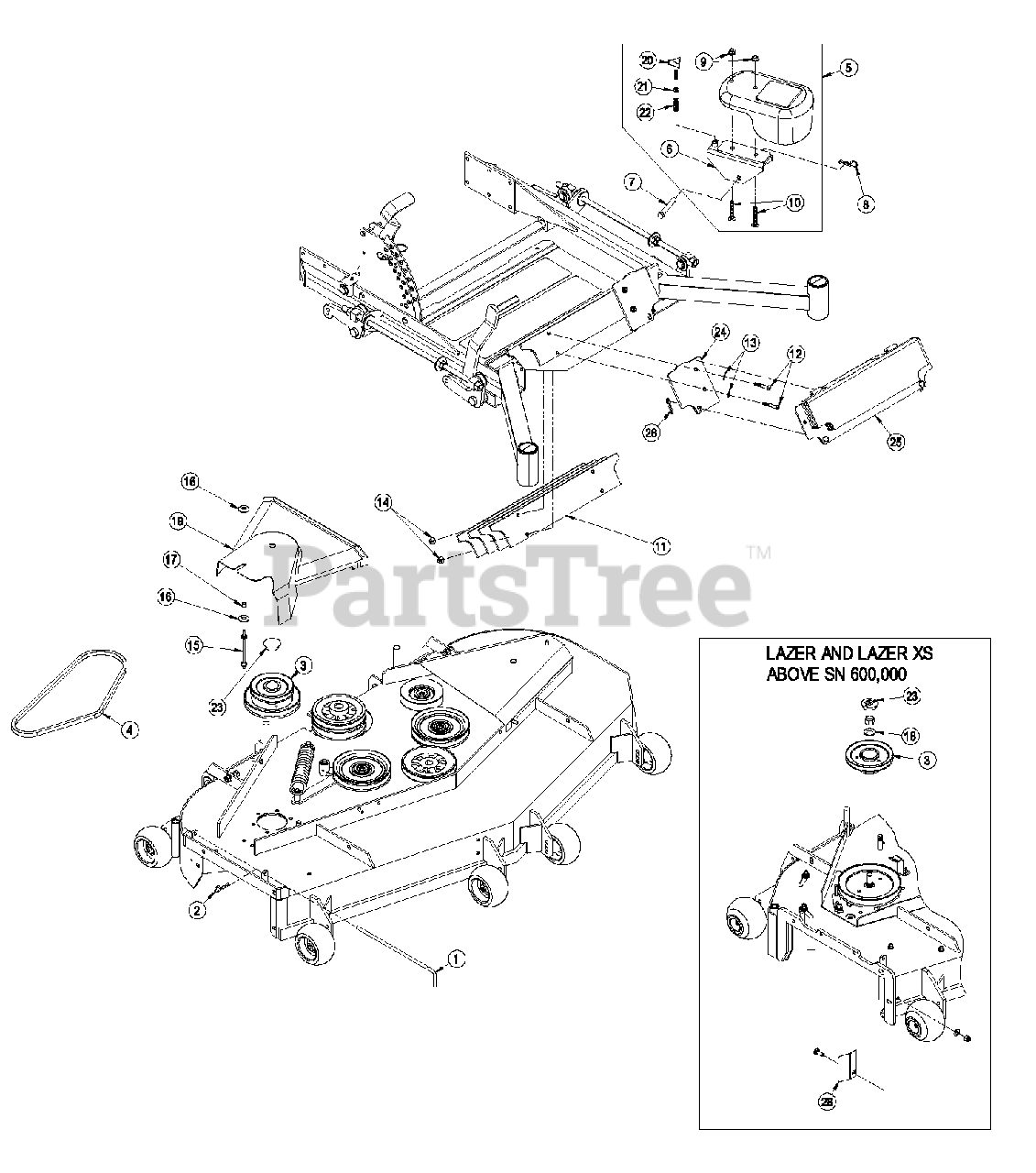

Weight And Belt Drive Components 72" LAZER below SN 600,000 and all AS Parts Diagram

  • Title

1

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 103-2796

JACKSHAFT, LZUV72

$318.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0867

BELT, BLOWER DRIVE 72
(Superseded to 103-0867-SL)

$33.99

$

In Stock, only 1 left!

0

5

Exmark 103-0902

ASM, WEIGHT 2.0" 43 POUND

Note: Includes items 6, 9, 10, 19, 20, 21 weight and decal

$480.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

WLD, BRACKET 2.0 ARM

$85.99

$

Usually ships in 3-6 days

0

7

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

8

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2500

BOLT-SQH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-01

PLATE, WEIGHT

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

STUD,BELT SHIELD 4 INCH

$24.99

$

Usually ships in 3-6 days

0

16

Washer, Spring Disc 7/16

Note: (not used)

$

$

Not available

17

Spacer, Grommet

Note: (not used)

$

$

Not available

18

Washer, 5/8 SAE

Note: (not used)

$

$

Not available

19

Exmark 103-0736

COVER, BELT 72

$259.99

$

Usually ships in 3-6 days

0

20

Exmark 103-2187

KNOB

$6.99

$

In Stock, Qty 12

0

21

Exmark 23256-24

Washer

$

$

Currently unavailable

22

Exmark 103-2188

SPRING

$6.99

$

In Stock, Qty 12

0

23

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 103-5856-01

PLATE, WEIGHT MOUNTING

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 103-5866

ASM, WEIGHT PLATE WITH DE

$

$

Not available

26

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0

27

Exmark 103-5865

Template, Drill

Note: Item not shown. Use to drill holes for floorpan weights

$

$

Currently unavailable

28

Deflector

Note: (not used)

$

$

Not available
