UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Hood And Bag Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

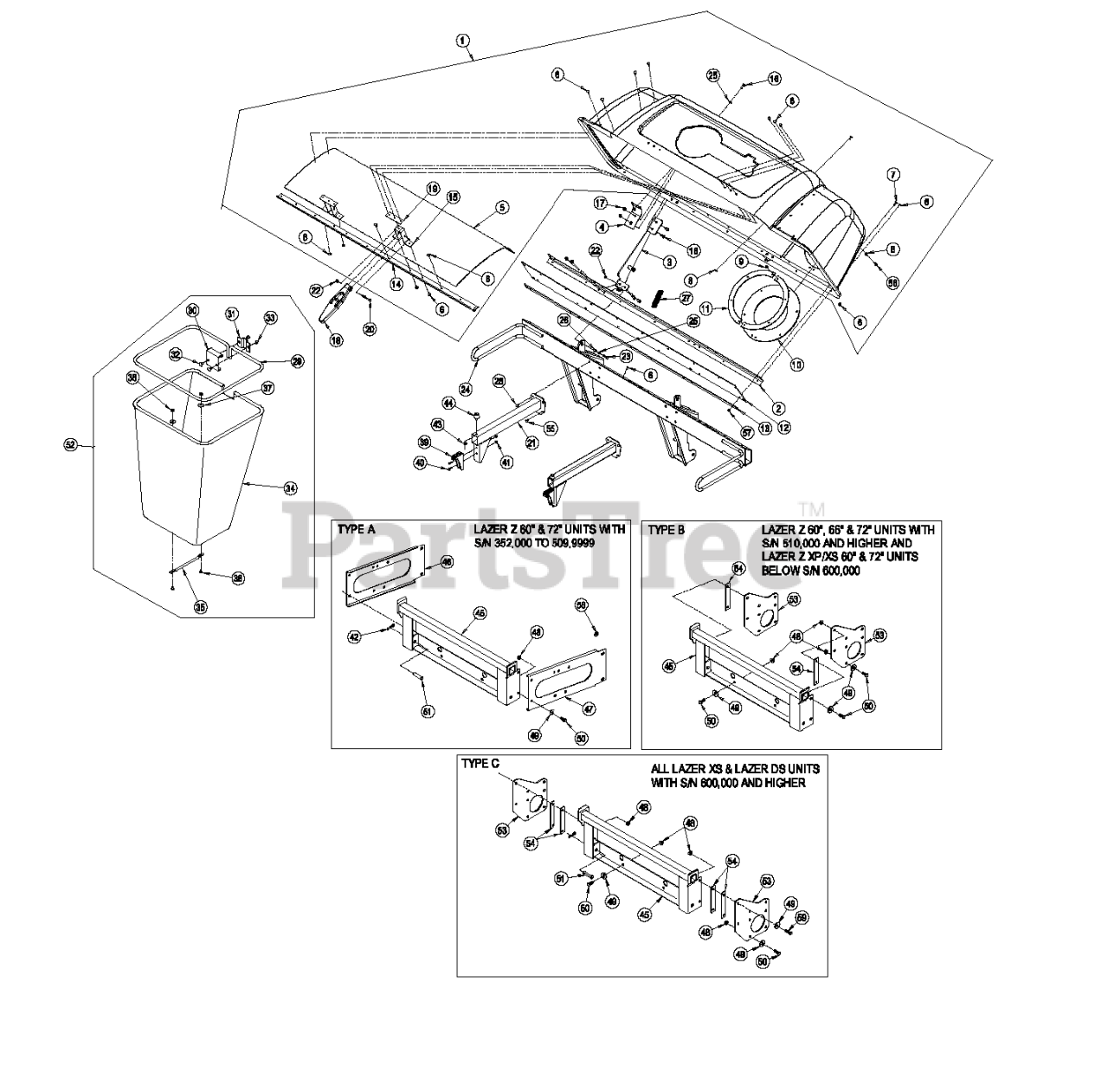

Hood And Bag Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

  • Title

1

Exmark 103-0437

Asm, Hood

$1229.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0382-03

Stiffener, Bagger Top

$66.99

$

Usually ships in 3-6 days

0

3

Exmark 103-0430-03

Wld Hinge

$134.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0391

Reinforcement, Hood

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0440

Screen, Bagger

$30.99

$

Usually ships in 3-6 days

0

6

Exmark 114439

Rivet, Pop 3/16 x 1/2

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-803075

Screw, Truss HD #10-24 x 3/4

$1.49

$

In Stock, Qty 5

0

8

Exmark 3256-61

Washer, 216 x 750 x 049

$2.99

$

In Stock, only 2 left!

0

9

Exmark 3296-2

Nut, Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

10

Exmark 103-0439

Seal, Tube

$45.99

$

In Stock, only 3 left!

0

11

Exmark 103-0378

Clamp, Seal

$33.99

$

In Stock, only 1 left!

0

12

Exmark 103-0451

Seal, Hinge

$281.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0452-03

Plate, Backing

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0380-03

Support, Screen

$58.99

$

Usually ships in 3-6 days

0

15

Exmark 103-0379

Bracket, Mount

$42.99

$

Usually ships in 3-6 days

0

16

Exmark 321-4

Screw, HH 1/4-20 x 3/4

$1.49

$

In Stock, Qty 20+

0

17

Exmark 32128-33

Nut, Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-653403

Latch

$80.99

$

In Stock, Qty 6

0

19

Exmark 103-0376

Plate, Latch Reinforcement

$9.49

$

Usually ships in 3-6 days

0

20

Exmark 321-11

Screw, HH 1/4-20 x 2

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-5124-03

Wld, Bag Support

$165.99

$

Usually ships in 3-6 days

0

22

Exmark 3296-42

Nut, Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

23

Exmark 321-6

Screw, HH 1/4-20 x 1

$0.99

$

In Stock, Qty 20+

0

24

Exmark 103-4735-03

Wld, Bagger Upright

$799.99

$

Usually ships in 3-6 days

0

25

Exmark 3256-2

Washer, 1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-633545

Spacer

$2.99

$

In Stock, Qty 20+

0

27

Exmark 1-653544

Spring

$8.99

$

In Stock, only 2 left!

0

28

Exmark 322-3

Screw, HH 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-653529-03

Frame, Bag

$120.99

$

Usually ships in 3-6 days

0

30

Exmark 114973-03

Hanger, Bag

$26.99

$

In Stock, only 2 left!

0

31

Exmark 114974-03

Clamp

$14.99

$

Usually ships in 3-6 days

0

32

Exmark 3230-1

Bolt, Carriage 5/16-18 x 3/4

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-29

Nut, Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

34

Exmark 116-0757

Bag, Cloth

$103.99

$

In Stock, Qty 20+

0

35

Exmark 1-653566

Handle, Bag

$12.99

$

In Stock, only 2 left!

0

36

Exmark 3229-1

Bolt, Carriage 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

37

Exmark 1-653036

Washer, 344 x 175 x 062 Pltd

$5.49

$

In Stock, only 2 left!

0

38

Exmark 3296-42

Nut, Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-653404

Catch

$37.99

$

In Stock, Qty 7

0

40

Exmark 3290-500

Screw, PPH #10-24 x 5/8

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3290-148

Nut, Whizlock #10-24

$0.99

$

In Stock, Qty 11

0

42

Exmark 1-806005

Hairpin

$2.99

$

In Stock, Qty 20+

0

43

Exmark 32128-33

Nut, Whizlock 1/4-20

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-523420

Bumper

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 103-0429-03

Wld, Bagger Mount

$522.99

$

Usually ships in 3-6 days

0

46

Exmark 103-5612-03

Bracket, Frame LH (Type A)

$99.99

$

Usually ships in 3-6 days

0

47

Exmark 103-0399-03

Bracket, Frame RH (Type A)

$

$

Not available

48

Exmark 3290-357

Nut, Whizlock 3/8-16 (Type A)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 3290-357

Nut, Whizlock 3/8-16 (Type B & C)

$0.99

$

In Stock, Qty 20+

0

49

Exmark 98-5975

Washer, Spring Disc 3/8 (Type A)

$3.49

$

In Stock, Qty 20+

0

50

Exmark 98-5975

Washer, Spring Disc 3/8 (Type B & C)

$3.49

$

In Stock, Qty 20+

0

50

Exmark 323-7

Screw HH 3/8-16 x 1 1/4 (Type A)

$2.99

$

In Stock, Qty 20+

0

50

Exmark 323-7

Screw HH 3/8-16 x 1 1/4 (Type B)

$2.99

$

In Stock, Qty 20+

0

50

Exmark 323-7

Screw HH 3/8-16 x 1 1/4 (Type C)

$2.99

$

In Stock, Qty 20+

0

51

Exmark 283-69

Clevis Pin

$10.99

$

In Stock, only 3 left!

0

52

Exmark 116-0754

Asm, Bag

$191.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2975-03

Plate, Bagger Mount (Type B & C)

$66.99

$

Usually ships in 3-6 days

0

54

Exmark 103-1155-03

Spacer (Type B)

$9.49

$

Usually ships in 3-6 days

0

54

Exmark 103-1155-03

Spacer (Type C)

$9.49

$

Usually ships in 3-6 days

0

55

Exmark 3274-55

Screw, HSBH 5/16-18 x 3/4

$5.49

$

In Stock, Qty 13

0

56

Exmark 3250-27

Screw, PPH #10-24 x 7/8

$0.99

$

In Stock, Qty 9

0

57

Exmark 32153-1

Nut, Side Lock #10-24

$3.99

$

In Stock, only 1 left!

0

58

Exmark 71-9310

Spacer, ROPS (Type A)

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 323-7

Screw 3/8-16 x 125 (Type C)

$2.99

$

In Stock, Qty 20+

0
