UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Blower Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

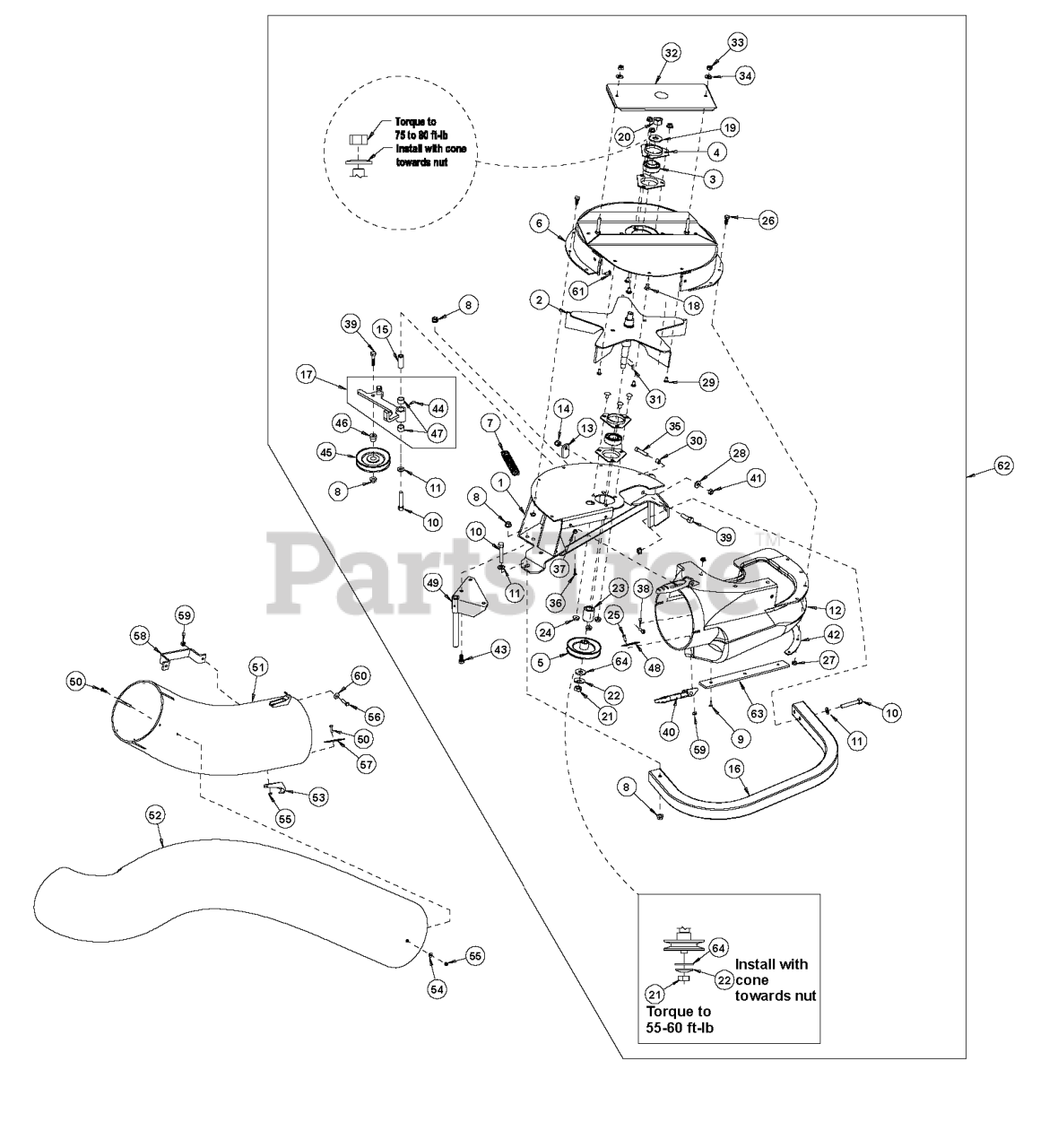

Blower Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

  • Title

1

Exmark 109-1133-03

Wld, Blower Mount 60"&72"

$644.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0455

Wld, Impeller

$441.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

Bearing, SPH OD

$71.99

$

In Stock, Qty 7

0

4

Exmark 1-513013

Housing, Flange

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-0456

Sheave, Blower

$53.99

$

In Stock, only 3 left!

0

6

Exmark 103-3593

Wld, Upper Housing (103-0457-03) With Decals

$547.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653331

Spring, Idler

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

3/8-16 Whizlock Nut

$0.99

$

In Stock, Qty 20+

0

9

Exmark 114439

Rivet

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-11

Screw HH 3/8-16 x 2 1/4

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-4

Washer, Flat 438 x 100 x 083

$1.99

$

In Stock, Qty 20+

0

12

Exmark 109-2954

Asm, Blower Chute

$332.99

$

In Stock, Qty 5

0

13

Exmark 1-353054

Latch, Grass Catcher

$7.99

$

In Stock, only 3 left!

0

14

Exmark 3296-39

Nut, Nyloc 3/8-16

$2.99

$

In Stock, Qty 8

0

15

Exmark 1-603044

Bushing, Idler Pivot

$14.99

$

In Stock, only 4 left!

0

16

Exmark 103-0458-01

Bumper

$123.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0448

Asm , Idler W/Bushings (103-0462-03) Zerk, & Decal

$154.99

$

In Stock, only 1 left!

0

18

Exmark 3230-18

Bolt, Carriage 5/16-18 x 5/8

$5.49

$

In Stock, Qty 5

0

19

Exmark 1-513208

Washer, Spring Disc

$8.99

$

In Stock, only 2 left!

0

20

Exmark 3219-6

Nut, 5/8-18

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3220-5

Nut, Jam 1/2-20

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-513435

Washer, Spring Disc

$5.49

$

In Stock, Qty 13

0

23

Exmark 103-0460

Spacer

$20.99

$

In Stock, only 1 left!

0

24

Exmark 32128-20

Nut, Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

25

Exmark 321-4

Screw, HH 1/4-20 x 3/4

$1.49

$

In Stock, Qty 20+

0

26

Exmark 321-3

Screw, HH 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32128-33

Nut, Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

0

28

Exmark 1-303334

Washer, Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

0

29

Exmark 3229-11

Bolt, Carriage 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-0126

Bushing, Locator

$6.99

$

In Stock, Qty 11

0

31

Exmark 3257-32

Key, Woodruff #61 5/8 x 3/16

$2.99

$

In Stock, Qty 11

0

32

Exmark 103-3583

Cover, Bearing (103-3584-03)With Decal

$98.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-47

Nut, Nyloc 5/16-18 (thin)

$3.99

$

In Stock, Qty 8

0

34

Exmark 3256-3

Washer, Flat 5/16 x 7/8 OD

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3274-18

Screw, Socket HD 5/16-18 x 1 1/4

$9.49

$

In Stock, Qty 7

0

36

Exmark 1-803075

Screw, CRTH #10-24 x 3/4

$1.49

$

In Stock, Qty 5

0

37

Exmark 3290-148

Nut, Whizlock #10-24

$0.99

$

In Stock, Qty 11

0

38

Exmark 1-803076

Screw, CRTH 1/4-20 x 3/4

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 323-8

Screw HH 3/8-16 x 1 1/2

$1.49

$

In Stock, Qty 20+

0

40

Exmark 103-2898

Latch, Rubber

$34.99

$

In Stock, only 3 left!

0

41

Exmark 3217-6

Nut 5/16-18

$1.49

$

In Stock, Qty 12

0

42

Exmark 103-0461-03

Plate, Blower Backing

$15.99

$

In Stock, only 1 left!

0

43

Exmark 323-4

Screw HH 3/8-16 x 3/4

$3.99

$

In Stock, only 1 left!

0

44

Exmark 302-19

Zerk, 1/8-28 Straight

$2.49

$

In Stock, Qty 8

0

45

Exmark 103-0483

Pulley, Idler

$53.99

$

In Stock, only 4 left!

0

46

Exmark 1-653367

Hub, Spacer

$23.99

$

Usually ships in 3-6 days

0

47

Exmark 1-653600

Bearing

$20.99

$

In Stock, only 1 left!

0

48

Exmark 103-3093

Plate, Backing

$8.49

$

Usually ships in 3-6 days

0

49

Exmark 103-0445-03

Wld, Mount Pin

$72.99

$

In Stock, only 2 left!

0

50

Exmark 32105-13

Screw, HWH #10-24 x 3/4

$1.99

$

In Stock, Qty 5

0

51

Exmark 109-1974

Tube, Lower

$223.99

$

Usually ships in 3-6 days

0

52

Exmark 109-3525

Tube, Upper 60"

$466.99

$

Usually ships in 3-6 days

0

52

Exmark 109-1968

Tube, Upper 66" & 72"

$354.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2897

Latch, Catch

$8.49

$

In Stock, only 3 left!

0

54

Exmark 3256-61

Washer, Flat 216 x 75 x 05

$2.99

$

In Stock, only 2 left!

0

55

Exmark 3296-2

Nut, Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

56

Exmark 321-6

Screw, HH 1/4-20 x 1

$0.99

$

In Stock, Qty 20+

0

57

Exmark 103-3079

Plate, Backing

$8.49

$

Usually ships in 3-6 days

0

58

Exmark 1-353005-03

Handle

$15.99

$

In Stock, only 1 left!

0

59

Exmark 3296-42

Nut, Nyloc 1/4-20

$0.99

$

In Stock, Qty 12

0

60

Exmark 3256-55

Washer, Flat 26 x 125

$5.49

$

In Stock, only 1 left!

0

61

Exmark 3229-1

Bolt, Carriage 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

62

Exmark 109-1986

Asm, Blower (Includes Items 1-49,61, 63 & Decals)

$

$

Currently unavailable

63

Exmark 103-4751-03

Plate, Reinforcement

$20.99

$

Usually ships in 3-6 days

0

64

Exmark 3256-26

Washer-1/2 SAE

$0.99

$

In Stock, Qty 20+

0

65

Exmark 3296-28

Nut-Nyloc

$1.99

$

In Stock, only 4 left!

0
