Exmark UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Blower Assembly - Lazer Z 52" Parts Lookup with Diagrams

1

Exmark 109-1119-03

Wld, Blower Mount

$748.99

$

Usually ships in 3-6 days

2

Exmark 103-3815

Wld, Impeller

$310.99

$

In Stock, Qty 5

3

Exmark 1-653346

Bearing, SPH OD

$71.99

$

In Stock, Qty 9

4

Exmark 1-513013

Housing, Flange

$5.49

$

Usually ships in 3-6 days

5

Exmark 103-1047

Sheave, Blower

$75.99

$

In Stock, Qty 6

6

Exmark 103-3592

Wld, Upper Housing (1-652345-03) With Decals

$616.99

$

Usually ships in 3-6 days

7

Exmark 1-653331

Spring, Idler

$12.99

$

In Stock, only 3 left!

8

Exmark 3290-357

Nut, Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

9

Exmark 323-7

Screw, HH 3/8-16 x 1 1/4

$2.99

$

In Stock, Qty 20+

10

Exmark 323-11

Screw, HH 3/8-16 x 2 1/4

$2.49

$

In Stock, Qty 20+

11

Exmark 323-12

Screw, HH 3/8-16 x 2 1/2

$2.49

$

In Stock, Qty 13

12

Exmark 3256-4

Washer, 3/8 Std

$1.99

$

In Stock, Qty 20+

13

Exmark 103-4171

Chute, Blower

$347.99

$

Usually ships in 3-6 days

14

Exmark 1-353054

Latch, Grass Catcher

$7.99

$

In Stock, only 3 left!

15

Exmark 3296-39

Nut, Nyloc 3/8-16

$2.99

$

In Stock, Qty 16

16

Exmark 1-653322

Pulley, Idler

$64.99

$

In Stock, only 2 left!

17

Exmark 103-0130

Bushing, Idler Pivot

$18.99

$

In Stock, Qty 6

18

Exmark 109-1122-01

Bumper

$119.99

$

In Stock, only 1 left!

19

Exmark 103-2876

Asm , Idler W/Bushings Zerk, & Decal

$164.99

$

In Stock, only 3 left!

20

Exmark 3230-18

Bolt, Carriage 5/16-18 x 5/8

$5.49

$

In Stock, Qty 7

21

Exmark 1-513208

Washer, Spring Disc

$8.99

$

In Stock, only 2 left!

22

Exmark 3219-6

Nut, Hex 5/8-18

$3.99

$

In Stock, Qty 20+

23

Exmark 3220-5

Nut, Jam 1/2-20

$1.99

$

In Stock, Qty 20+

24

Exmark 1-513435

Washer, Spring Disc

$5.49

$

In Stock, Qty 13

25

Exmark 1-653365

Spacer

$27.99

$

Usually ships in 3-6 days

26

Exmark 1-653366

Hub

$25.99

$

In Stock, only 1 left!

27

Exmark 32128-20

Nut, Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

28

Exmark 3290-500

Screw, PPH #10-24 x 5/8

$1.49

$

In Stock, Qty 20+

29

Exmark 321-3

Screw, HH 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

30

Exmark 32128-33

Nut, Whizlock 1/4-20

$0.99

$

In Stock, Qty 6

31

Exmark 1-303334

Washer, Spring Disc 5/16

$2.99

$

In Stock, only 4 left!

32

Exmark 3229-11

Bolt, Carriage 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

33

Exmark 103-0126

Bushing, Locator

$6.99

$

In Stock, Qty 11

34

Exmark 3257-32

Key, Woodruff #61 5/8 x 3/16

$2.99

$

In Stock, Qty 11

35

Exmark 103-3585

Cover, Bearing (103-3586-03) With Decal

$119.99

$

In Stock, only 1 left!

36

Exmark 3296-47

Nut, Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 12

37

Exmark 3256-3

Washer, 5/16 Std

$0.99

$

In Stock, Qty 20+

38

Exmark 3274-18

Screw, Socket HD 5/16-18 x 1 1/4

$9.49

$

In Stock, Qty 7

39

Exmark 1-803075

Screw, CRTH #10-24 x 3/4

$1.49

$

In Stock, Qty 5

40

Exmark 3290-148

Nut, Whizlock #10-24

$0.99

$

In Stock, Qty 11

41

Exmark 1-803076

Screw, CRTH 1/4-20 x 3/4

$1.49

$

Usually ships in 3-6 days

42

Exmark 3274-107

Screw, Socket But HD 3/8-16 x 1 3/4

$5.49

$

In Stock, only 4 left!

43

Exmark 1-353050

Pin, Grass Catcher

$17.99

$

In Stock, only 2 left!

44

Exmark 1-806323

Roll pin

$1.49

$

In Stock, only 3 left!

45

Exmark 1-653596-03

Plate, Blower Backing

$50.99

$

In Stock, only 1 left!

46

Exmark 302-19

Zerk, 1/8-28 Straight

$2.49

$

In Stock, Qty 8

47

Exmark 3256-24

Washer, 3/8 SAE

$0.99

$

In Stock, Qty 20+

48

Exmark 1-653443-03

Plate, Filler (Below S/N 260,000)

$55.99

$

In Stock, only 1 left!

49

Exmark 103-1042-03

Plate, Blocker

$70.99

$

In Stock, only 1 left!

50

Exmark 3217-6

Nut, Hex 5/16-18

$1.49

$

In Stock, Qty 12

51

Exmark 103-1103

Pulley, Idler

$68.99

$

In Stock, only 1 left!

52

Exmark 1-653429

Asm, Latch

$70.99

$

In Stock, only 2 left!

53

Exmark 323-8

Screw, HH 3/8-16 x 1 1/2

$1.49

$

In Stock, Qty 20+

54

Exmark 1-653600

Bearing

$20.99

$

In Stock, only 1 left!

55

Exmark 3256-14

Washer, #10 Std

$0.99

$

In Stock, Qty 20+

56

Exmark 103-4752-03

Plate, Reinforcing (Below S/N 260,000)

$13.99

$

Usually ships in 3-6 days

57

Exmark 3290-500

Screw, PPH #10-24 x 5/8

$1.49

$

In Stock, Qty 20+

58

Exmark 3296-2

Nut, Nyloc #10-24

$2.49

$

In Stock, Qty 20+

59

Exmark 3256-14

Washer, #10 Std

$0.99

$

In Stock, Qty 20+

60

Exmark 109-2041

Tube, Lower

$194.99

$

Usually ships in 3-6 days

61

Exmark 109-2036

Tube, Upper 52"

$287.99

$

Usually ships in 3-6 days

62

Exmark 32105-13

Screw, Slotted HH #10-24 x 3/4

$1.99

$

In Stock, Qty 5

63

Exmark 103-1209

Asm, Blower, (Includes Items 1-56 & Decals)

$1918.99

$

In Stock, only 1 left!

64

Exmark 1-523157

Washer

$1.49

$

In Stock, Qty 20+

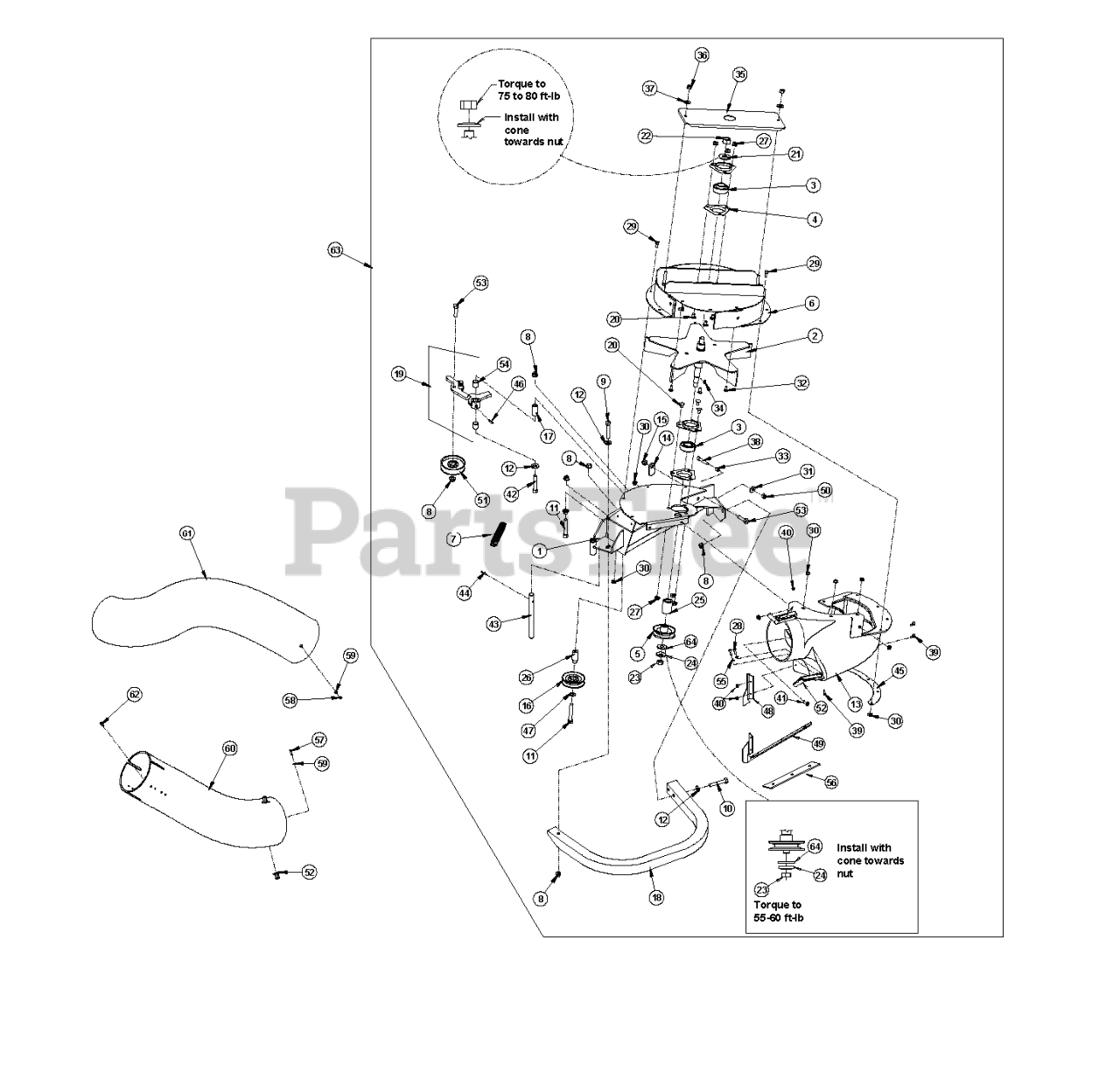

UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Blower Assembly - Lazer Z 52" Parts Diagram

Blower Assembly - Lazer Z 52" Parts Diagram
