UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 400000000 - 402082299) (2017) Blower Assembly - Lazer Z 52" Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

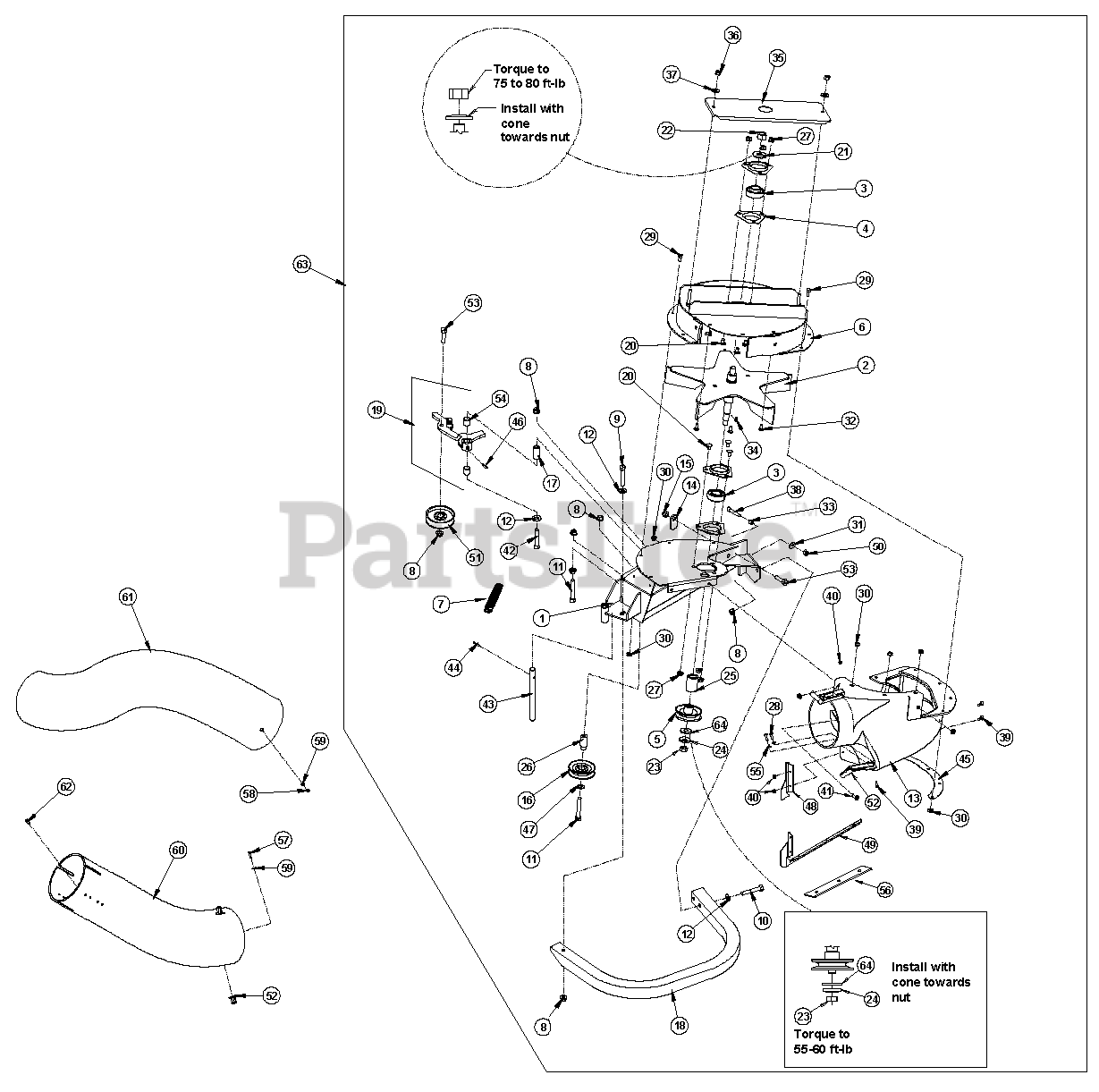

Blower Assembly - Lazer Z 52" Parts Diagram

  • Title
1

Exmark 109-1119-03

WLD,BLOWER MOUNT

Note: Includes items 43 and 44.

$830.99

$

Usually ships in 3-6 days

0

2

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

0

3

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$71.99

$

In Stock, Qty 20+

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

0

5

Exmark 103-1047

SHEAVE-BLOWER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$76.99

$

In Stock, Qty 5

0

6

Exmark 103-3592

ASM, UPPER HOUSING LZUV52

$684.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Exmark 103-4171

CHUTE-BLOWER, SMALL

$347.99

$

Usually ships in 3-6 days

0

14

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

15

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-653322

IDLER-INSIDE

$64.99

$

In Stock, only 2 left!

0

17

Exmark 103-0130

BUSHING-PIVOT, IDLER

$18.99

$

In Stock, Qty 6

0

18

$119.99

$

In Stock, only 1 left!

0

19

Exmark 103-2876

ASM, IDLER ARM - SERVICE

$172.99

$

In Stock, only 3 left!

0

20

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

21

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

22

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Exmark 3220-5

NUT-JAM

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$1.99

$

In Stock, Qty 19

0

24

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

25

$27.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

27

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

32

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

34

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

35

Exmark 103-3585

ASM, BEARING COVER

$132.99

$

In Stock, only 1 left!

0

36

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

37

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

39

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

40

$0.99

$

In Stock, Qty 11

0

41

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 3274-107

SCREW-HSBH

$5.49

$

In Stock, only 4 left!

0

43

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

44

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

45

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$50.99

$

In Stock, only 1 left!

0

46

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-653443-03

PLATE, FILLER

$55.99

$

In Stock, only 1 left!

0

49

Exmark 103-1042-03

PLATE, BLOCKER

$78.99

$

In Stock, only 1 left!

0

50

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

51

Exmark 103-1103

IDLER-FLAT

$68.99

$

Usually ships in 3-6 days

0

52

Exmark 1-653429

LATCH DRAW

$78.99

$

In Stock, only 2 left!

0

53

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 3 left!

0

55

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

0

57

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

58

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

59

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Exmark 109-2041

KIT,LOWER TUBE

$194.99

$

Usually ships in 3-6 days

0

61

Exmark 109-2036

TUBE-UPPER

$287.99

$

Usually ships in 3-6 days

0

62

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

63

Exmark 103-1209

ASM, BLOWER LZUV52 - SERV

Note: (Includes Items 1-56 & Decals)

$2129.99

$

In Stock, only 1 left!

0

64

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0
