UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 315000000 - 315999999) (2015) Hood And Bag Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

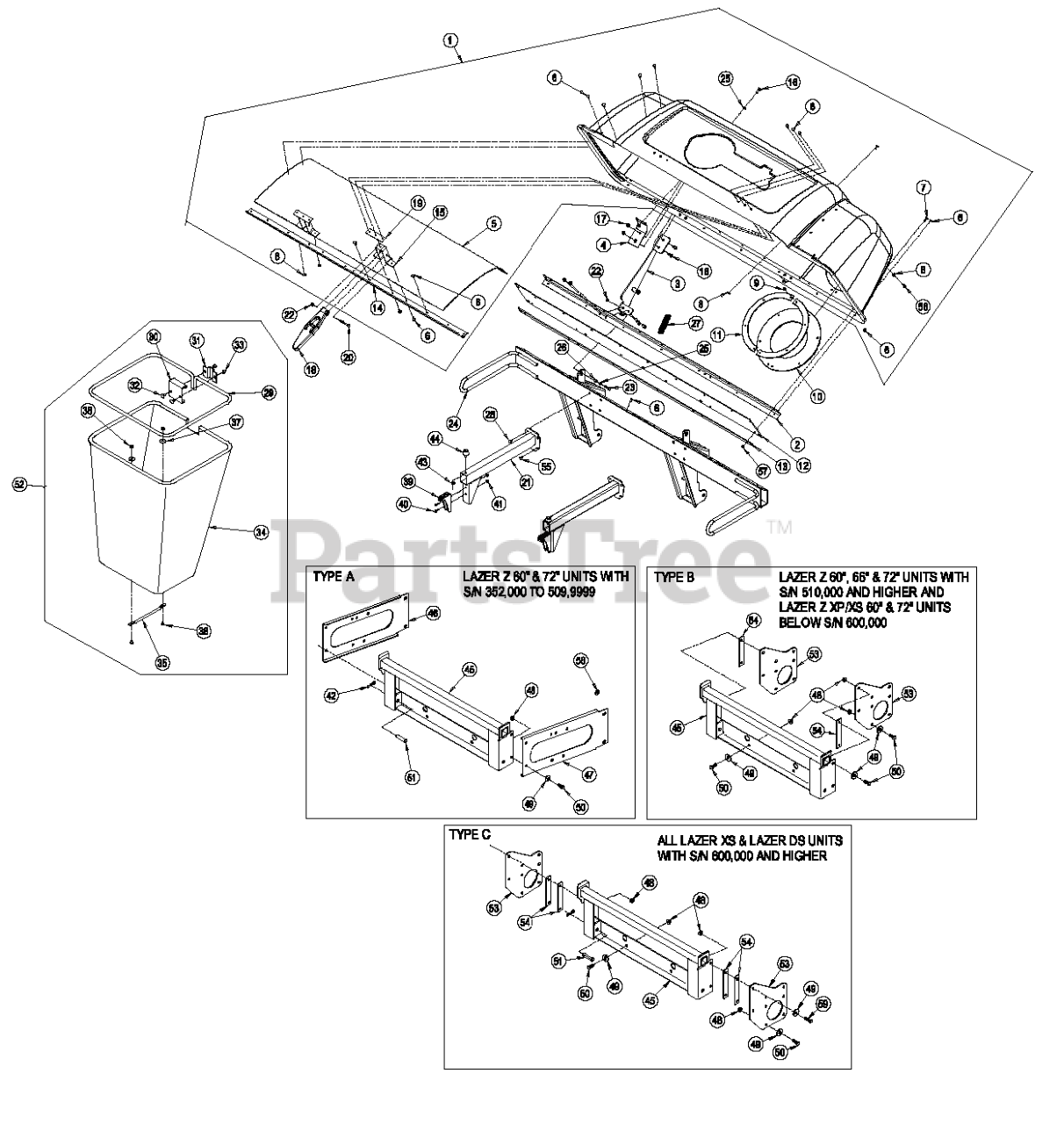

Hood And Bag Assembly - Lazer Z, Lazer XP, Lazer XS, & Lazer DS (60", 66" & 72") Parts Diagram

  • Title

1

Exmark 103-0437

ASM, HOOD

Note: Includes items 2,5,6,8,14,15,19 riveted together and Decal.

$1107.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0382-03

STIFFENER-BAGGER, TOP

$66.99

$

Usually ships in 3-6 days

0

3

Exmark 103-0430-03

HINGE ASM

$134.99

$

Usually ships in 3-6 days

0

4

Exmark 103-0391

REINFORCEMENT-HOOD, BAGGE

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 103-0440

SCREEN-BAGGER

$30.99

$

Usually ships in 3-6 days

0

6

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

8

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

9

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 103-0439

SEAL-TUBE

$45.99

$

In Stock, only 2 left!

0

11

Exmark 103-0378

CLAMP-SEAL

$33.99

$

In Stock, only 1 left!

0

12

Exmark 103-0451

SEAL-HINGE

$281.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0452-03

PLATE-BACKING

$41.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0380-03

SUPPORT-SCREEN

$58.99

$

Usually ships in 3-6 days

0

15

Exmark 103-0379

BRACKET-MOUNT

$42.99

$

Usually ships in 3-6 days

0

16

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

18

Exmark 1-653403

LATCH

$80.99

$

In Stock, Qty 6

0

19

Exmark 103-0376

PLATE-LATCH, REINFORCEMEN

$9.49

$

Usually ships in 3-6 days

0

20

Exmark 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-5124-03

SUPPORT-BAG

$165.99

$

Usually ships in 3-6 days

0

22

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

23

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 103-4735-03

UPRIGHT BAGGER ASM

$799.99

$

Usually ships in 3-6 days

0

25

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

27

Exmark 1-653544

SPRING-EXTENSION

$8.49

$

In Stock, only 2 left!

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Exmark 1-653529-03

FRAME-BAG

$120.99

$

Usually ships in 3-6 days

0

30

Exmark 114973-03

HANGER-BAG

$26.99

$

In Stock, only 1 left!

0

31

Exmark 114974-03

CLAMP

$14.99

$

Usually ships in 3-6 days

0

32

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 116-0757

BAG

$103.99

$

In Stock, Qty 13

0

35

Exmark 1-653566

HANDLE-BAG

$12.99

$

In Stock, only 2 left!

0

36

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

37

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

38

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

39

Exmark 1-653404

CATCH

$37.99

$

In Stock, Qty 7

0

40

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

42

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

43

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

44

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

45

Exmark 103-0429-03

MOUNT-BAGGER

$522.99

$

Usually ships in 3-6 days

0

46

Exmark 103-5612-03

BRACKET-FRAME, LH

$99.99

$

Usually ships in 3-6 days

0

47

Exmark 103-0399-03

BRACKET-FRAME, RH

$119.99

$

Usually ships in 3-6 days

0

48

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

49

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

50

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

51

Exmark 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

52

Exmark 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2975-03

PLATE-MOUNT, BAGGER

$60.99

$

Usually ships in 3-6 days

0

54

Exmark 103-1155-03

SPACER

$9.49

$

Usually ships in 3-6 days

0

Exmark 103-1155-03

SPACER

$9.49

$

Usually ships in 3-6 days

0

55

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

56

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

57

Exmark 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

58

Exmark 71-9310

SPACER

Note: Used on units with ROPS installed only.

$2.99

$

Usually ships in 3-6 days

0

59

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
