UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 315000000 - 315999999) (2015) Blower Assembly - Lazer Z, Lazer Xp, Lazer Xs, & Lazer Ds (60", 66" & 72") Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

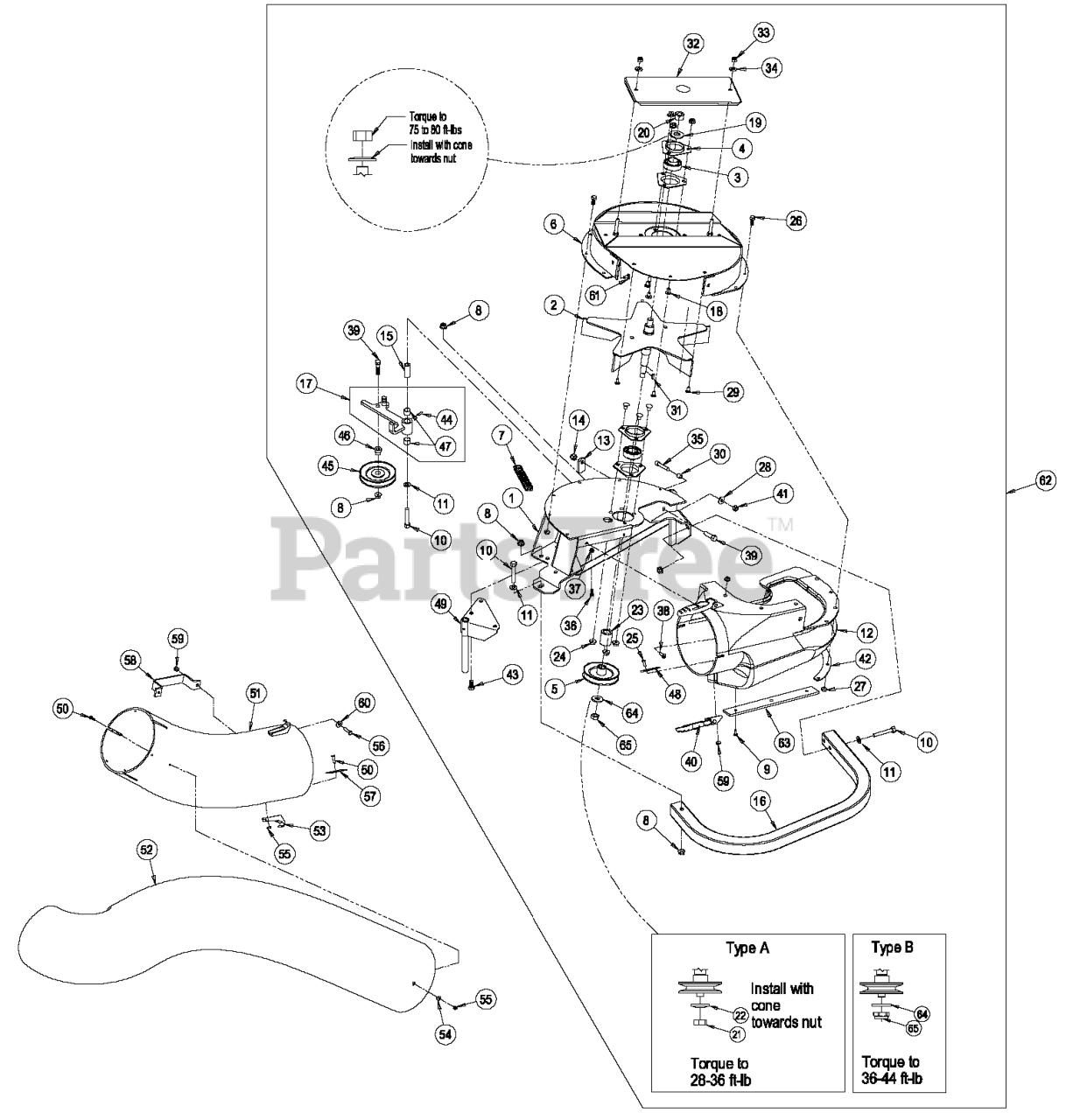

Blower Assembly - Lazer Z, Lazer Xp, Lazer Xs, & Lazer Ds (60", 66" & 72") Parts Diagram

  • Title

1

Exmark 109-1133-03

WLD,BLOWER MOUNT

$644.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0455

IMPELLER

$441.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$71.99

$

In Stock, Qty 7

0

4

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 103-0456

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) on bore of sheave and bearings.

$53.99

$

In Stock, only 3 left!

0

6

Exmark 103-3593

ASM, UPPER HSG

$547.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

8

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Exmark 109-2954

ASM,BLOWER CHUTE LZ

Note: Includes items 9 & 63.

$332.99

$

In Stock, Qty 5

0

13

Exmark 1-353054

LATCH-CATCHER, GRASS

$7.99

$

In Stock, only 3 left!

0

14

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Exmark 103-0458-01

BUMPER

$123.99

$

Usually ships in 3-6 days

0

17

Exmark 103-0448

ASM, IDLER ARM - SERVICE

$154.99

$

In Stock, only 1 left!

0

18

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

19

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

20

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3220-5

NUT-JAM

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$1.99

$

In Stock, Qty 20+

0

22

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

23

Exmark 103-0460

SPACER

$20.99

$

In Stock, only 1 left!

0

24

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

28

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

29

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Exmark 103-0126

BUSHING, LOCATOR

$6.99

$

In Stock, Qty 11

0

31

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

32

Exmark 103-3583

ASM, BEARING COVER

$98.99

$

Usually ships in 3-6 days

0

33

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

34

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

36

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

37

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

38

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 103-2898

LATCH-RUBBER

$34.99

$

In Stock, only 3 left!

0

41

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

42

Exmark 103-0461-03

PLATE-BACKING, BLOWER

$15.99

$

In Stock, only 1 left!

0

43

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

44

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

45

Exmark 103-0483

IDLER

$53.99

$

In Stock, only 4 left!

0

46

Exmark 1-653367

HUB,SPACER

$23.99

$

Usually ships in 3-6 days

0

47

Exmark 1-653600

BUSHING

$20.99

$

In Stock, only 1 left!

0

48

Exmark 103-3093

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

49

Exmark 103-0445-03

PIN-MOUNT

$72.99

$

In Stock, only 2 left!

0

50

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

51

Exmark 109-1974

TUBE-LOWER

$223.99

$

Usually ships in 3-6 days

0

52

Exmark 109-3525

TUBE-UPPER

$466.99

$

Usually ships in 3-6 days

0

Exmark 109-1968

TUBE-UPPER

$354.99

$

Usually ships in 3-6 days

0

53

Exmark 103-2897

LATCH-CATCH

$8.49

$

In Stock, only 3 left!

0

54

Exmark 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

55

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

57

Exmark 103-3079

PLATE-BACKING

$8.49

$

Usually ships in 3-6 days

0

58

Exmark 1-353005-03

HANDLE

$15.99

$

In Stock, only 1 left!

0

59

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

60

Exmark 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 1 left!

0

61

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

62

Exmark 109-1986

Asm, Blower

Note: (Includes Items 1-49,61, 63 & Decals)

$

$

Currently unavailable

63

Exmark 103-4751-03

PLATE,REINFORCEMENT LARGE

$20.99

$

Usually ships in 3-6 days

0

64

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

65

Exmark 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0
