UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton WIRING HARNESS- UV & UVG Models Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

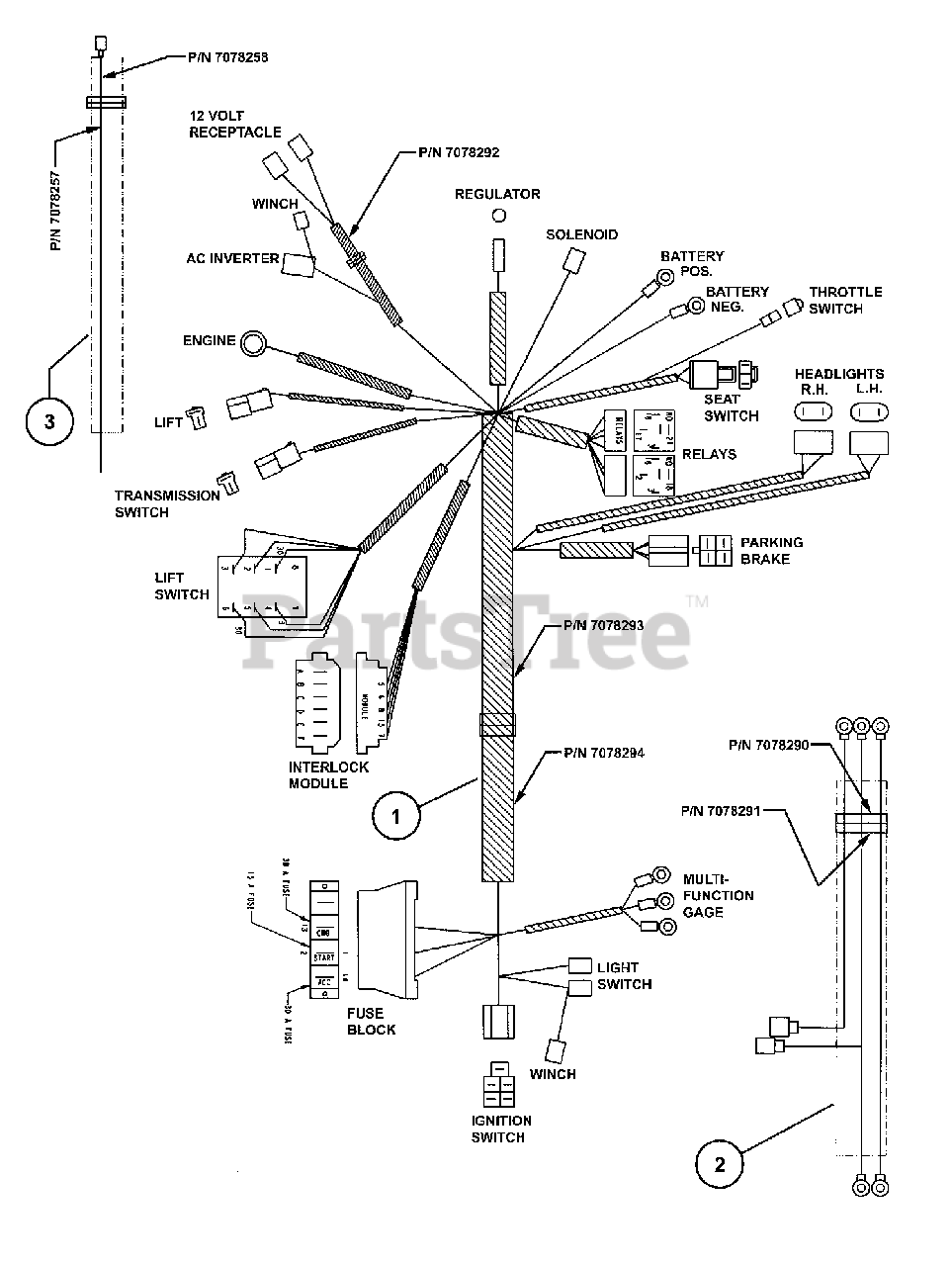

WIRING HARNESS- UV & UVG Models Parts Diagram

  • Title
1

Snapper 7073639

WIRING HARNESS, UV2, Main

Note: incl. 7078294 (dash harness); 7078293 (main harness); & 7078292 (console harness)

$

$

Not available

2

Snapper 7073678

WIRING HARNESS, UV2, Speed/Fuel

Note: incl. 7078291 (speedometer main harness) & 7078290 (speedometer dash harness)

$

$

Not available

3

Snapper 7073819

WIRING HARNESS, UV2, Tachometer

Note: incl. 7078258 (tach dash harness) & 7078257 (tach main harness)

$

$

Not available
