UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton ROPS/ACCESSORY GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

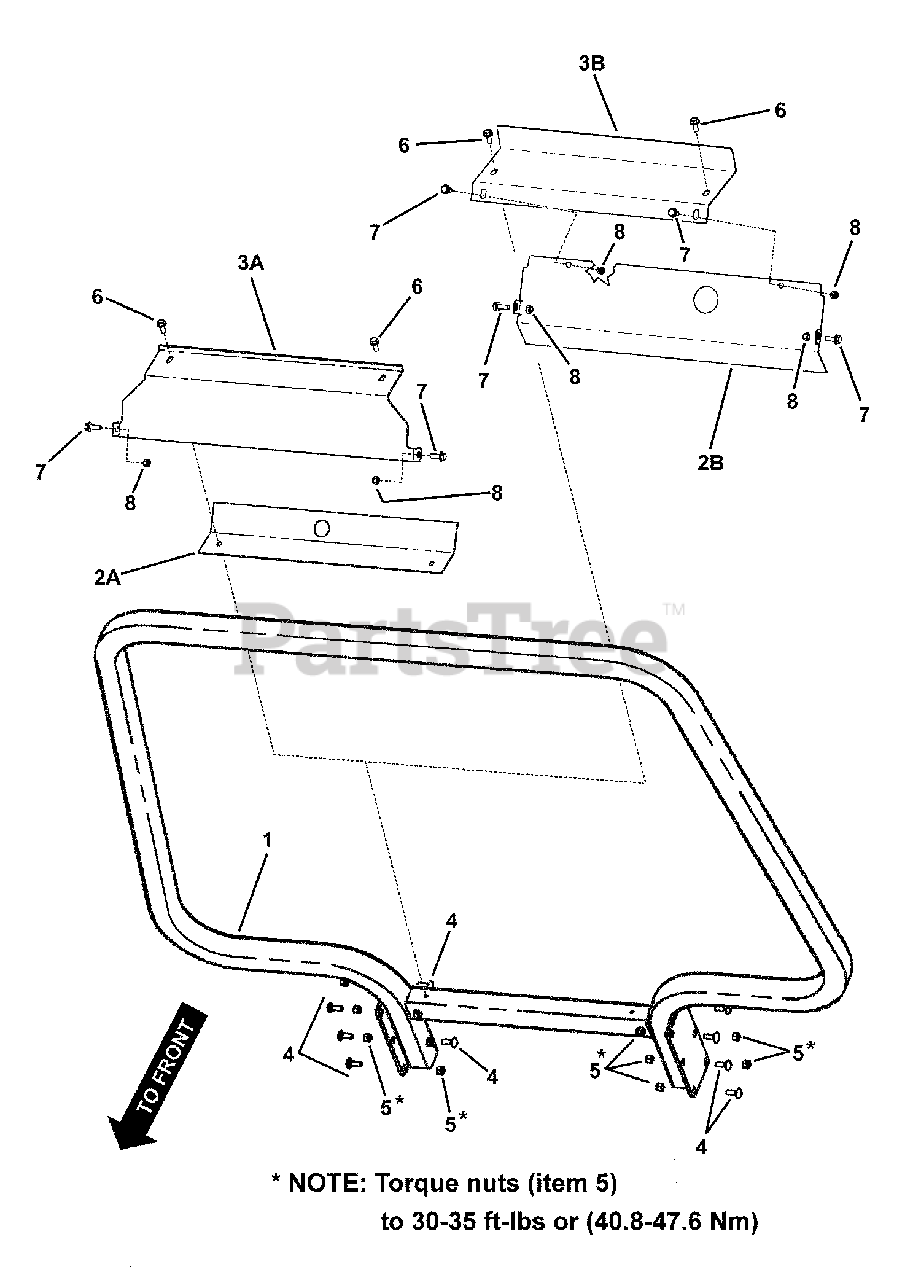

ROPS/ACCESSORY GROUP Parts Diagram

  • Title

1

Snapper 7058752

WELDMENT, ROPS
(Superseded to 7058752YP)

$1424.99

$

Usually ships in 2-12 days

0

2A

Snapper 7044936

* HEAT SHIELD, Cab (UV-2)
(Superseded to 7044936YP)

$34.99

$

Usually ships in 2-12 days

0

2B

Snapper 7043288

HEAT SHIELD (Red)

$

$

Not available

2B

Snapper 7043289

HEAT SHIELD (Green)
(Superseded to 7043289YP)

$58.99

$

Usually ships in 2-12 days

0

3A

Snapper 7073024

* SHIELD, Heat/Debris (Red)
(Superseded to 7073024YP)

$82.99

$

Usually ships in 2-12 days

0

3A

Snapper 7063349

* SHIELD, Heat/Debris (Green)

$

$

Not available

3B

Snapper 7043290

HEAT SHIELD, Top (Red)
(Superseded to 7043290YP)

$47.99

$

Usually ships in 2-12 days

0

3B

Snapper 7043291

HEAT SHIELD, Top (Green)
(Superseded to 7043291YP)

$46.99

$

Usually ships in 2-12 days

0

4

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
