UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton REAR FRAME GROUP, RH Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

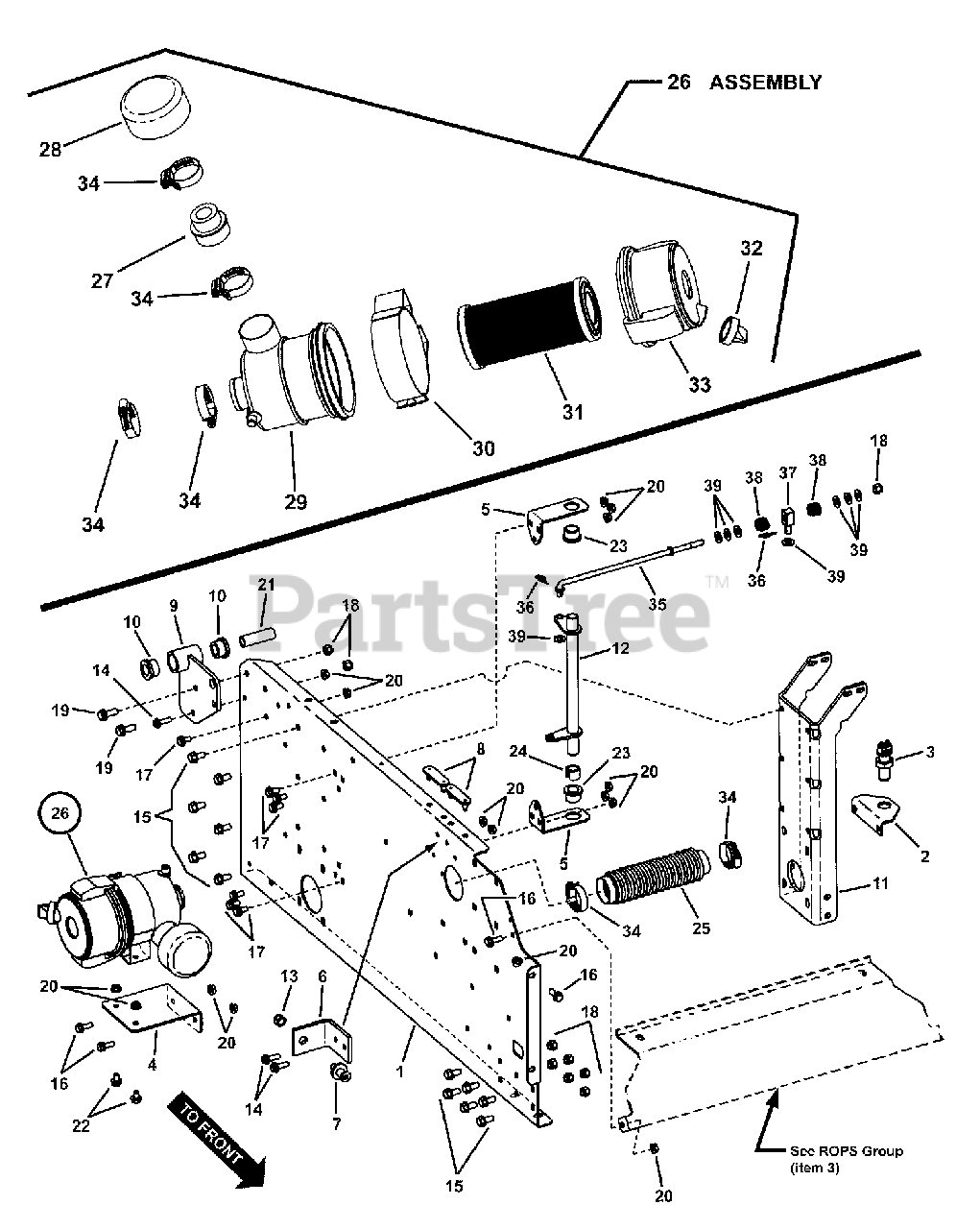

REAR FRAME GROUP, RH Parts Diagram

  • Title

1

Snapper 7027331

FRAME, Rear RH (Red)
(Superseded to 7027331YP)

Note: 7072571 is the un-painted part

$170.99

$

Usually ships in 2-12 days

0

1

Snapper 7068000

FRAME, Rear, RH (Green)
(Superseded to 7068000YP)

Note: Trailmaster version of 7072571

$165.99

$

Usually ships in 2-12 days

0

2

Snapper 7027967

BRACKET, Speed Sensor (weldment)

$

$

Not available

3

Snapper 7026570

SENSOR, Speed
(Superseded to 7026570YP)

Note: ref: Electrical Components Group

$149.99

$

Usually ships in 2-12 days

0

4

Snapper 7034054

BRACKET, Air Filter
(Superseded to 7034054YP)

$25.99

$

Usually ships in 2-12 days

0

5

Snapper 7072563

BRACKET, Transmission Shift
(Superseded to 7072563YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7028354

BRACKET, Bed Latch
(Superseded to 7028354YP)

Note: 1 per side

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 7073190

PIN, Bed Latch Striker (7/16-14 thread)
(Superseded to 7073190YP)

Note: 1 per side

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7072962

BUMPER, Rubber

Note: 2 per side

$

$

Not available

9

Snapper 7027328

WELDMENT, Dump Bed Pivot, Red
(Superseded to 7027328YP)

Note: 1 per side; 7058686 is the un-painted part

$70.99

$

Usually ships in 2-12 days

0

9

Snapper 7063351

WELDMENT, Dump Bed Pivot (Green)
(Superseded to 7063351YP)

Note: Trailmaster version of 7058686

$67.99

$

Usually ships in 2-12 days

0

10

Snapper 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

Note: 2 per side

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 7027324

STIFFENER, CVT Frame (Red)
(Superseded to 7027324YP)

Note: 1 per side; 7072945 is the un-painted part

$136.99

$

Usually ships in 2-12 days

0

11

Snapper 7035762

STIFFENER, CVT Frame (Green)
(Superseded to 7035762YP)

Note: Trailmaster version of 7072945

$136.99

$

Usually ships in 2-12 days

0

12

Snapper 7058636

WELDMENT, Shifter Shaft
(Superseded to 7058636YP)

$62.99

$

Usually ships in 2-12 days

0

13

Snapper 7091917

NUT, 7/16-14, Hex Nyloc
(Superseded to 7091917YP)

Note: 1 per side

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091681

BOLT, 5/16-18 x 1" Hex Flange Lock
(Superseded to 703410)

Note: 3 per side

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

Note: 12 per side

$5.49

$

In Stock, only 3 left!

0

16

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

Note: 11 per side

$3.99

$

In Stock, Qty 5

0

18

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: 8 on left side

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

Note: 2 on left side

$5.99

$

In Stock, only 2 left!

0

20

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: 16 on left side

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

Note: 1 per side

$24.99

$

In Stock, Qty 12

0

22

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

23

Snapper 7035496

BEARING, .750 I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

24

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 7026737

FLEX TUBE, 1.75 x 1.75 x 12"

$

$

Not available

26

Snapper 7058912

ASSEMBLY, Air Filter (Includes Ref. #'s 27 thru 34)
(Superseded to 7058912YP)

$433.99

$

Usually ships in 2-12 days

0

27

Snapper 7073435

RESTRICTER, Air Cleaner
(Superseded to 7073435YP)

$93.99

$

Usually ships in 2-12 days

0

28

Snapper 7073436

PRECLEANER, Air Filter
(Superseded to 7073436YP)

$136.99

$

Usually ships in 2-12 days

0

29

Snapper 7073437

HOUSING, Air Filter
(Superseded to 7073437YP)

$78.99

$

Usually ships in 2-12 days

0

30

Snapper 7073438

BRACKET, Air Filter Mounting
(Superseded to 7073438YP)

$55.99

$

Usually ships in 2-12 days

0

31

Snapper 7073439

ELEMENT, Air Filter
(Superseded to 7073439YP)

$

$

Not available

32

Snapper 7073440

VALVE, Air Filter Drain
(Superseded to 7073440YP)

$35.99

$

In Stock, only 1 left!

0

33

Snapper 7073443

CAP, Air Filter
(Superseded to 7073443YP)

$121.99

$

Usually ships in 2-12 days

0

34

Snapper 7073488

CLAMP, Hose
(Superseded to 7073488YP)

$6.99

$

Usually ships in 2-12 days

0

35

Snapper 7073002

ROD, Transmission Shift (3/8-16 thread)

$

$

Not available

36

Snapper 7091593

COTTER PIN, 3/8 Self Lock
(Superseded to 703355)

Note: was 7024159

$3.99

$

In Stock, Qty 14

0

37

Snapper 7072495

SWIVEL, 3/8 w/thru hole
(Superseded to 7072495SM)

$24.99

$

In Stock, only 1 left!

0

38

Snapper 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

39

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
