UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton FRONT FRAME GROUP- Sub-Assembly Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

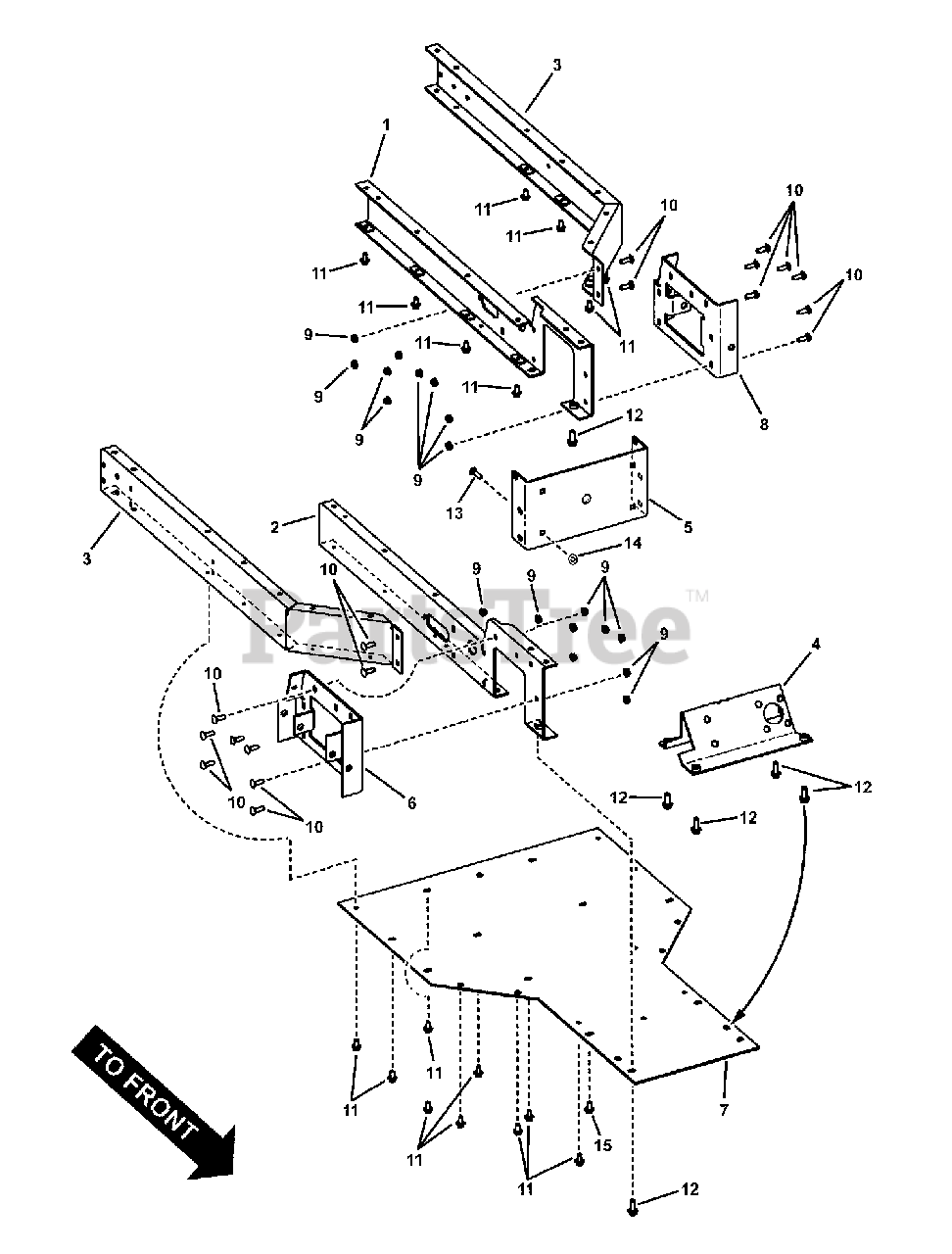

FRONT FRAME GROUP- Sub-Assembly Parts Diagram

  • Title

1

Snapper 7058505

WELDMENT, Inner LH Frame Rail
(Superseded to 7058505YP)

Note: NOTE: 7058667, Front Frame Pre-Paint Sub-assy. Is made up of parts 1 thru 12.

$205.99

$

Usually ships in 2-12 days

0

2

Snapper 7058551

WELDMENT, Inner RH Frame Rail

$

$

Not available

3

Snapper 7058694

WELDMENT, Outer CVT Frame
(Superseded to 7058694YP)

$159.99

$

Usually ships in 2-12 days

0

4

Snapper 7058739

WELDMENT, Steering Bracket
(Superseded to 7058739YP)

$92.99

$

Usually ships in 2-12 days

0

5

Snapper 7072464

END, Frame
(Superseded to 7072464YP)

$49.99

$

Usually ships in 2-12 days

0

6

Snapper 7072473

SUSPENSION PIVOT, RH
(Superseded to 7072473YP)

$82.99

$

Usually ships in 2-12 days

0

7

Snapper 7072516

STIFFENER, Frame

$

$

Not available

8

Snapper 7072619

SUSPENSION PIVOT, LH
(Superseded to 7072619YP)

$82.99

$

Usually ships in 2-12 days

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7091714

BOLT, 5/16-18 x 1" Square Neck Carriage, GR5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

11

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

12

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

13

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage, GR 5

$

$

Not available

14

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, GR 5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0
