UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton FRONT CLIP GROUP (Pedals) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

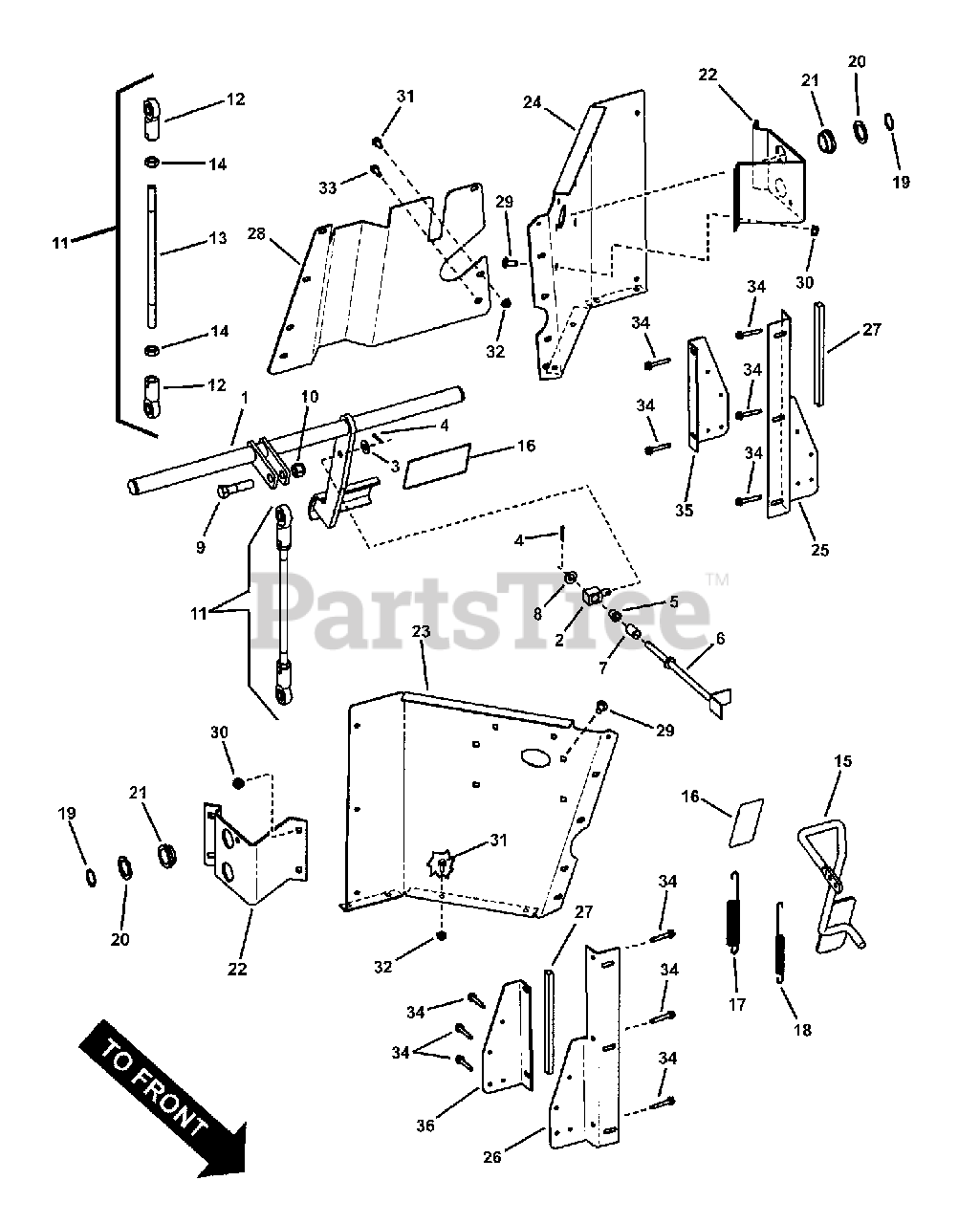

FRONT CLIP GROUP (Pedals) Parts Diagram

  • Title

1

Snapper 7058125

WELDMENT, CVT Brake Pedal
(Superseded to 7058125YP)

$233.99

$

Usually ships in 2-12 days

0

2

Snapper 7073876

SWIVEL, Brake Rod
(Superseded to 7073876YP)

$18.99

$

Usually ships in 2-12 days

0

3

Snapper 7091528

WASHER, .375 x .875 x .083 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7012306

FLANGE BUSHING, .381 x .625 x .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

6

Snapper 7058753

WELDMENT, Brake Switch Rod
(Superseded to 7058753YP)

$46.99

$

Usually ships in 2-12 days

0

7

Snapper 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7091922

NUT, 1/2-13 Hex Nyloc
(Superseded to 703453)

Note: or 7091121

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7058556

ASSEMBLY, Upper Brake Rod

Note: composed of 7072988, 7073012 (2) and 7090559 (2)

$

$

Not available

12

Snapper 7073012

ROD END, Female 1/2-20 thread
(Superseded to 7073012YP)

Note: part of item 12 assembly

$66.99

$

Usually ships in 2-12 days

0

13

Snapper 7072988

ROD, Upper CVT Brake (1/2-20 thread)
(Superseded to 7072988SM)

Note: part of item 12 assembly

$24.99

$

Usually ships in 2-12 days

0

14

Snapper 7090559

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

Note: part of item 12 assembly

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7058748

WELDMENT, Throttle Pedal

$

$

Not available

16

Snapper 7072502

PEDAL GRIP
(Superseded to 7072502YP)

$2.49

$

Usually ships in 2-12 days

0

17

Snapper 7072600

SPRING, Throttle Pedal Return
(Superseded to 7072600YP)

$18.99

$

Usually ships in 2-12 days

0

18

Snapper 7072602

SPRING, Inner Throttle Return
(Superseded to 7072602YP)

$16.99

$

Usually ships in 2-12 days

0

19

Snapper 7012709

RING, 1.00 Dia. External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

20

Snapper 7016561

BUSHING, 14 Gage Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

21

Snapper 7072645

BEARING, 1" I.D.
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

22

Snapper 7050520

BRACKET, Brake Support (Red)
(Superseded to 7050520YP)

Note: 7072518 is the un-painted part

$40.99

$

Usually ships in 2-12 days

0

22

Snapper 7035752

BRACKET, Brake Support (Green)
(Superseded to 7035752YP)

Note: Trailmaster version of 7072518

$39.99

$

Usually ships in 2-12 days

0

23

Snapper 7050522

FIREWALL, LH (Red)
(Superseded to 7050522YP)

Note: 7075870 is the un-painted part

$84.99

$

Usually ships in 2-12 days

0

23

Snapper 7035754

FIREWALL, LH (Green)
(Superseded to 7035754YP)

Note: Trailmaster version of 7075870

$83.99

$

Usually ships in 2-12 days

0

24

Snapper 7050523

FIREWALL, RH (Red)
(Superseded to 7050523YP)

Note: 7075871 is the un-painted part

$84.99

$

Usually ships in 2-12 days

0

24

Snapper 7035755

FIREWALL, RH (Green)
(Superseded to 7035755YP)

Note: Trailmaster version of 7075871

$83.99

$

Usually ships in 2-12 days

0

25

Snapper 7078098

FILLER, Firewall LH (Red)

$

$

Currently unavailable

25

Snapper 7078103

FILLER, Firewall LH (Green)
(Superseded to 7078103YP)

$31.99

$

Usually ships in 2-12 days

0

26

Snapper 7078099

FILLER, Firewall RH (Red)

$

$

Currently unavailable

26

Snapper 7078104

FILLER, Firewall RH (Green)
(Superseded to 7078104YP)

$31.99

$

Usually ships in 2-12 days

0

27

Snapper 7078031

GASKET, Closed Cell, Adhesive Back
(Superseded to 7078031YP)

$18.99

$

Usually ships in 2-12 days

0

28

Snapper 7050521

PEDAL SHIELD (Red)
(Superseded to 7050521YP)

Note: 7072588 is the un-painted part

$64.99

$

Usually ships in 2-12 days

0

28

Snapper 7035753

PEDAL SHIELD (Green)
(Superseded to 7035753YP)

Note: Trailmaster version of 7072588

$61.99

$

Usually ships in 2-12 days

0

29

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

30

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock, GR 5
(Superseded to 7091579SM)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

33

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

34

Snapper 7092133

SCREW, #10-16 x 1-1/4" Truss Head Sheet Metal
(Superseded to 7092133YP)

Note: was 7092106

$2.49

$

Usually ships in 2-12 days

0

35

Snapper 7034741

* KICK PLATE, LH

$

$

Not available

36

Snapper 7034648

* KICK PLATE, RH
(Superseded to 7034648YP)

$22.99

$

Usually ships in 2-12 days

0
