UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton DRIVE BASE GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

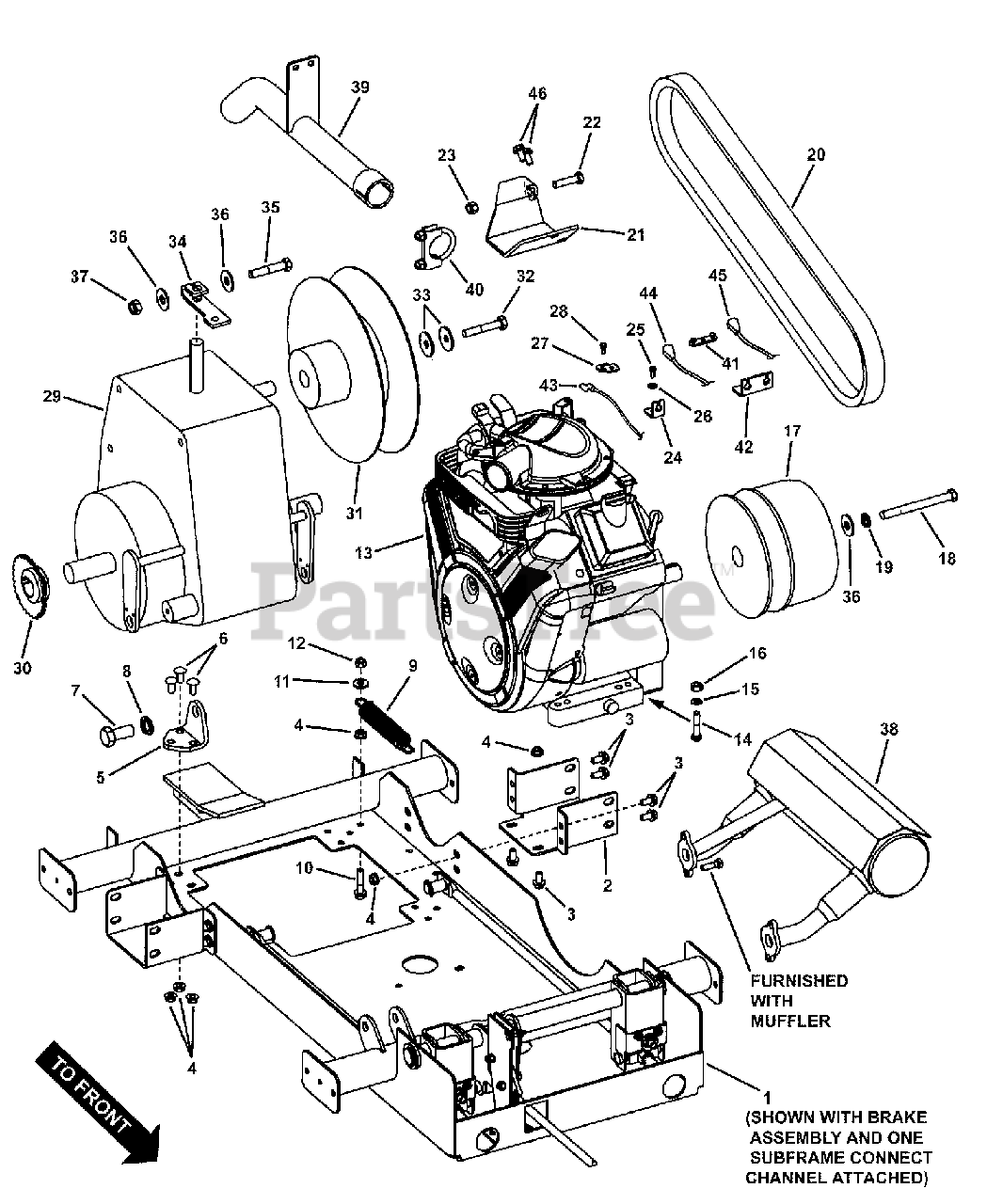

DRIVE BASE GROUP Parts Diagram

  • Title

1

Snapper 7046206

WELDMENT, Drive Base
(Superseded to 7046206YP)

Note: also shown on REAR FRAME GROUP, LH page

$490.99

$

Usually ships in 2-12 days

0

2

Snapper 7073106

CHANNEL, Subframe Connect
(Superseded to 7073106YP)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7074227

BRACKET, Transmission Mount w/Sq. Holes (Black)
(Superseded to 7074227YP)

Note: was 7074015

$17.99

$

Usually ships in 2-12 days

0

6

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7092041

SCREW, M16 x 2 x 35MM Hex Head Cap
(Superseded to 7092041YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7092042

WASHER, 16MM Split Lock
(Superseded to 7092042YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7073470

SPRING, Brake Return
(Superseded to 7073470YP)

$18.99

$

Usually ships in 2-12 days

0

10

Snapper 7091602

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR 5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

11

Snapper 7091528

WASHER, .375 x .875 x .083 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

* ENGINE, B&S 16 HP Vanguard Mod. 305447-0110-E1 (not shown)

Note: UV

$

$

Not available

13

* ENGINE, B&S 16 HP w/Generator Mod. 30544A-0111-E1 (shown)

Note: UVG & UVGT (or UVGC)

$

$

Not available

14

Snapper 7091609

SCREW, 5/16-24 x 1-1/2 Hex Head Cap, GR 5
(Superseded to 7091609SM)

$4.99

$

Usually ships in 2-12 days

0

15

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091297

NUT, 5/16-24 Hex, GR 5 or B
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7072970

CLUTCH, CVT Drive

$

$

Not available

17

Snapper 7100131

CLUTCH, CVT Drive

Note: upgraded 7072970

$

$

Not available

18

Snapper 7092130

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7092130SM)

$

$

Not available

19

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7072935

BELT, CVT (Cogged; 58.15 effective length)
(Superseded to 7072935SM)

Note: Dayco #1-7741

$121.99

$

In Stock, only 4 left!

0

21

Snapper 7071764

TORQUE BRACKET, Utility Vehicle
(Superseded to 7071764YP)

$49.99

$

Usually ships in 2-12 days

0

22

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

23

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7035651

ANCHOR, Throttle
(Superseded to 7035651YP)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7092050

SCREW, #10-32 x 1/2" Pan Head, Phillips

$

$

Not available

26

Snapper 7090601

WASHER, #10 External Tooth Lock
(Superseded to 7090601YP)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper 7029378

THROTTLE PLATE, B&S Vanguard

$

$

Not available

28

Snapper 7092121

SCREW, #10-32 x 1/2" Hex Head Shoulder
(Superseded to 7092121YP)

Note: UVG & UVGT (or UVGC)

$26.99

$

Usually ships in 2-12 days

0

29

Snapper 7072812

TRANSAXLE, Tuff Torq KT35C
(Superseded to 7072812YP)

$3362.99

$

Usually ships in 2-12 days

0

30

Snapper 7027959

SPROCKET, # 35- 3/8 Pitch
(Superseded to 7027959YP)

$87.99

$

Usually ships in 2-12 days

0

31

Snapper 7072971

PULLEY, CVT Drive
(Superseded to 7072971YP)

$

$

Not available

31

Snapper 7100154

PULLEY, CVT Drive
(Superseded to 7100154YP)

Note: Part has splined bore to fit Snapper p/n 7072812.

$695.99

$

Usually ships in 2-12 days

0

32

Snapper 7091029

SCREW, M10-1.5 x 60 Hex Head Cap (w/nyloc patch)
(Superseded to 7091029YP)

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

34

Snapper 7072982

SHIFT ARM, CVT
(Superseded to 7072982YP)

$20.99

$

Usually ships in 2-12 days

0

35

Snapper 7091028

SCREW, 7/16-20 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 7091028YP)

$

$

Not available

36

Snapper 7090991

WASHER, 7/16" Flat (Type A, Wide)
(Superseded to 7090991YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7090970

NUT, 7/16-20 Hex Top Lock
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7050498

MUFFLER, 16 HP B&S Vanguard
(Superseded to 7050498YP)

Note: was 7036514

$359.99

$

Usually ships in 2-12 days

0

39

Snapper 7036511

TAILPIPE, UV-2
(Superseded to 7036511YP)

$76.99

$

Usually ships in 2-12 days

0

40

Snapper 3039123

MUFFLER CLAMP, 1-5/8"
(Superseded to 3039123YP)

$5.49

$

Usually ships in 2-12 days

0

41

Snapper 7046898

THROTTLE LINK, B&S Vanguard
(Superseded to 7046898YP)

Note: UVG & UVGT (or UVGC)

$39.99

$

Usually ships in 2-12 days

0

42

Snapper 7046972

BRACKET, Throttle Adjustment
(Superseded to 7046972YP)

Note: UVG & UVGT (or UVGC)

$15.99

$

Usually ships in 2-12 days

0

43

Snapper 7029377

CABLE, Throttle, 16 HP Vanguard
(Superseded to 7029377YP)

$65.99

$

Usually ships in 2-12 days

0

44

Snapper 7027497

CABLE, Throttle, Pedal, Powerlink
(Superseded to 7027497YP)

Note: UVG & UVGT (or UVGC)

$53.99

$

Usually ships in 2-12 days

0

45

Snapper 7027498

THROTTLE, Remote, Powerlink
(Superseded to 7027498YP)

Note: UVG & UVGT (or UVGC); also shown on SEAT PEDESTAL GROUP- Frame page

$61.99

$

Usually ships in 2-12 days

0

46

Snapper 7091925

SCREW, M8-1.25 x 16, Hex Head Cap
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

47

Snapper 7072545

FUEL HOSE, 1/4" I.D. x 18" long
(Superseded to 7072545YP)

Note: was 7033693 (17")(not shown)

$10.99

$

In Stock, Qty 20+

0
