UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton BUMPER GROUP (Late Production) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

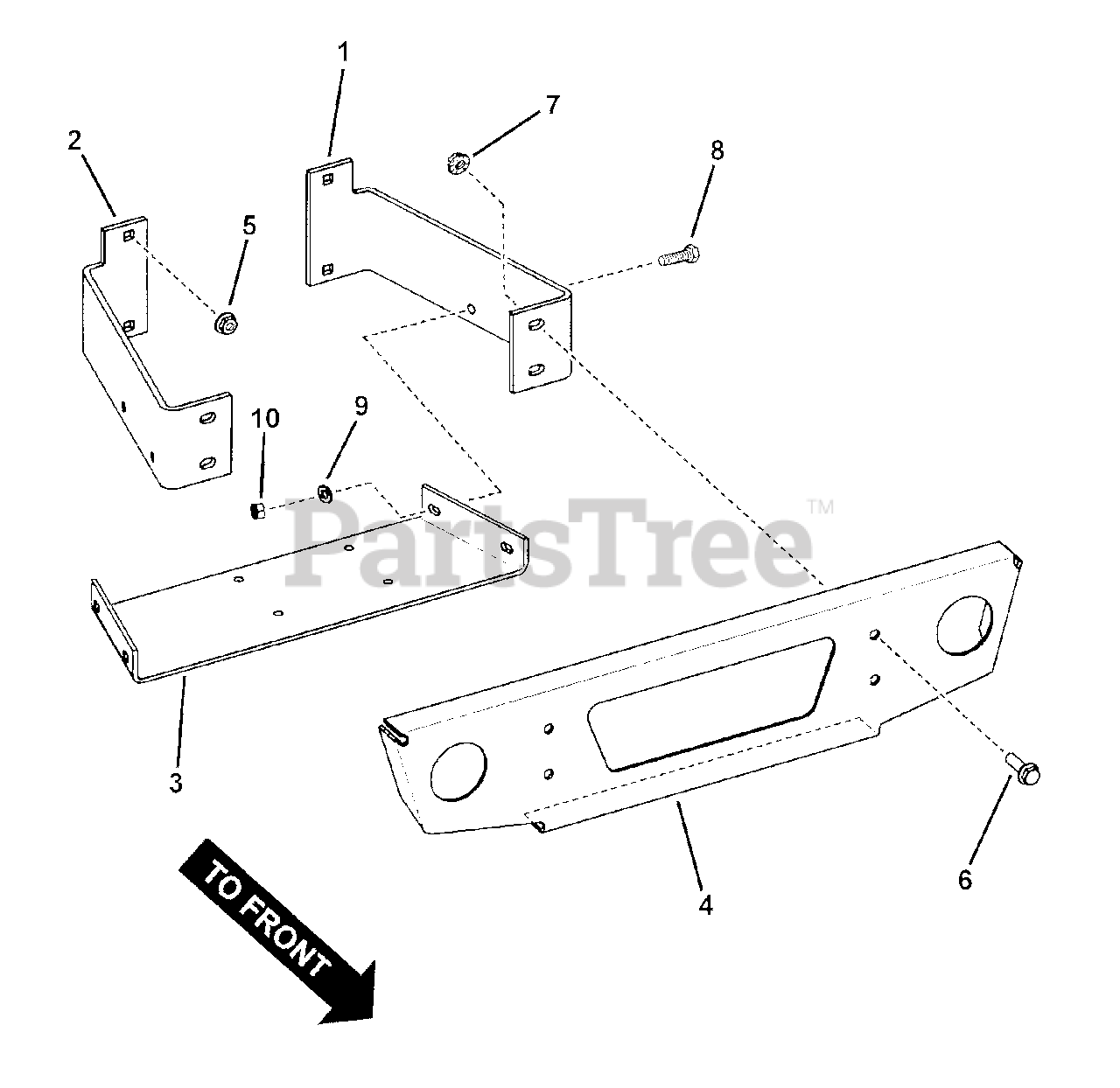

BUMPER GROUP (Late Production) Parts Diagram

  • Title

1

Snapper 7078209

BUMPER SUPPORT, Left
(Superseded to 7078209YP)

$83.99

$

Usually ships in 2-12 days

0

2

Snapper 7078208

BUMPER SUPPORT, Right
(Superseded to 7078208YP)

$83.99

$

Usually ships in 2-12 days

0

3

Snapper 7078201

PLATE, Winch Mounting
(Superseded to 7078201YP)

$74.99

$

Usually ships in 2-12 days

0

4

Snapper 7078210

BUMPER
(Superseded to 7078210YP)

Note: late production UV1621BV & UVG1621BV & all UVGT(or UVGC)621BV

$131.99

$

Usually ships in 2-12 days

0

5

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

7

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
