UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton BED ASSEMBLY (Dump Bed) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

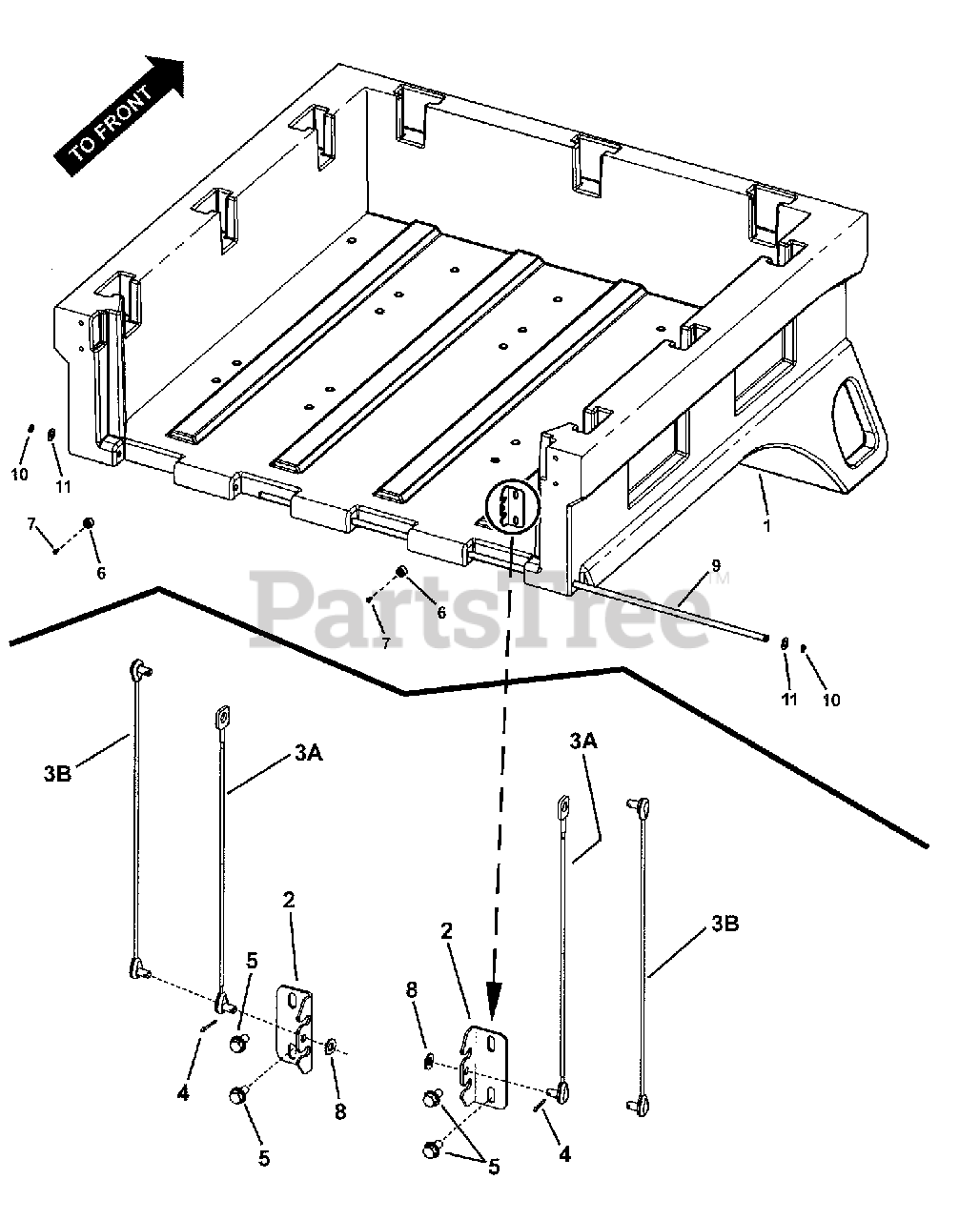

BED ASSEMBLY (Dump Bed) Parts Diagram

  • Title
1

Snapper 7075881

BED, Plastic

$

$

Not available

2

Snapper 7043202

BRACKET, Latch LH

$

$

Not available

3A

Snapper 7026456

* LANYARD, Tailgate (1 pin & 1 hole end)
(Superseded to 7026456YP)

$23.99

$

Usually ships in 2-12 days

0

3B

Snapper 7043321

LANYARD, Tailgate (2 pin ends)
(Superseded to 7043321YP)

$12.99

$

Usually ships in 2-12 days

0

4

Snapper 7090037

COTTER PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

6

Snapper 7033795

BUMPER, Recess Style
(Superseded to 7033795YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7092106

SCREW, #10 x 5/8" HiLo Nail Point
(Superseded to 7092106YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091076

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7026779

ROD, Tailgate
(Superseded to 7026779YP)

$36.99

$

Usually ships in 2-12 days

0

10

Snapper 7010776

RETAINING RING, 1/2", Heavy Duty
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

11

Snapper 7091733

WASHER, .5 x 1.0 x .03 Flat
(Superseded to 7091733YP)

$4.49

$

Usually ships in 2-12 days

0
