UV 1621 BV (7085668) - Simplicity Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton Frame Group - RH Rear (179rfgr) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

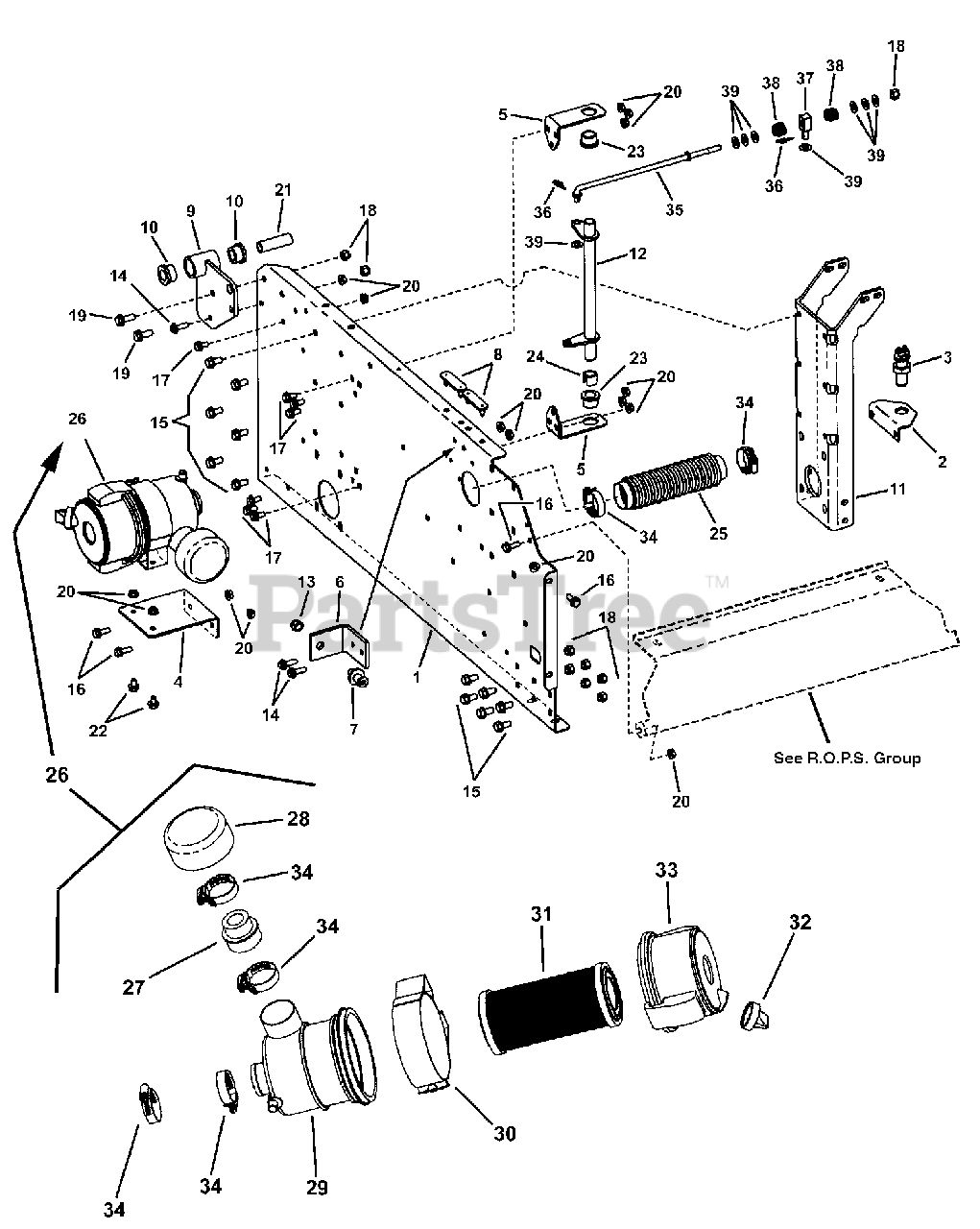

Frame Group - RH Rear (179rfgr) Parts Diagram

  • Title

1

Simplicity 7072571

FRAME, Rear, RH, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

1

Simplicity 7068000

FRAME, Rear, RH, Used on Trail Cruiser Model 85903
(Superseded to 7068000YP)

$165.99

$

Usually ships in 2-12 days

0

2

Simplicity 7027967

BRACKET, Speed Sensor (weldment)

$

$

Not available

3

Simplicity 7026570

SENSOR, Speed
(Superseded to 7026570YP)

$149.99

$

Usually ships in 2-12 days

0

4

Simplicity 7034054

BRACKET, Air Filter
(Superseded to 7034054YP)

$25.99

$

Usually ships in 2-12 days

0

5

Simplicity 7072563

BRACKET, Transmission Shift
(Superseded to 7072563YP)

$18.99

$

Usually ships in 2-12 days

0

6

Simplicity 7028354

BRACKET, Bed Latch
(Superseded to 7028354YP)

$24.99

$

Usually ships in 2-12 days

0

7

Simplicity 7073190

PIN, Bed Latch Striker
(Superseded to 7073190YP)

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 7072962

BUMPER, Rubber

$

$

Not available

9

Simplicity 7058686

PIVOT ASSEMBLY, Dump Bed, Used on Turf Cruiser Models 85632 & 85668
(Superseded to 7058686YP)

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 7063351

PIVOT ASSEMBLY, Dump Bed, Used on Trail Cruiser Model 85903
(Superseded to 7063351YP)

$67.99

$

Usually ships in 2-12 days

0

10

Simplicity 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 7072945

STIFFENER, CVT Frame, Used on Turf Cruiser Models 85632 & 85668

$

$

Not available

11

Simplicity 7035762

STIFFENER, CVT Frame, Used on Trail Cruiser Model 85903
(Superseded to 7035762YP)

$136.99

$

Usually ships in 2-12 days

0

12

Simplicity 7058636

SHAFT ASSEMBLY, Shifter
(Superseded to 7058636YP)

$62.99

$

Usually ships in 2-12 days

0

13

Simplicity 7091917

NUT, Hex Nyloc, 7/16-14
(Superseded to 7091917YP)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 7091681

BOLT, Hex Flange Lock, 5/16-18 x 1
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 7090815

SCREW, Hex Washer Self-Tap, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

16

Simplicity 7091905SM

BOLT, Hex Flange Lock, 5/16-18 x 7/8

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8 GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

18

Simplicity 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 7027198

BOLT, Hex Flange Lock, 3/8-16 x 1 GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16-18 GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 7029263

SLEEVE, Suspension
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 16

0

22

Simplicity 7090721

BOLT, Hex Flange Lock, 5/16-18 x 1/2
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

23

Simplicity 7035496

BEARING, .750 I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

24

Simplicity 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

25

Simplicity 7026737

FLEX TUBE, 1.75 x 1.75 x 12

$

$

Not available

26

Simplicity 7058912

ASSEMBLY, Air Filter (Includes Ref. Nos. 27 thru 34)
(Superseded to 7058912YP)

$433.99

$

Usually ships in 2-12 days

0

27

Simplicity 7073435

RESTRICTER, Air Cleaner
(Superseded to 7073435YP)

$93.99

$

Usually ships in 2-12 days

0

28

Simplicity 7073436

PRECLEANER, Air Filter
(Superseded to 7073436YP)

$136.99

$

Usually ships in 2-12 days

0

29

Simplicity 7073437

HOUSING, Air Filter
(Superseded to 7073437YP)

$78.99

$

Usually ships in 2-12 days

0

30

Simplicity 7073438

BRACKET, Air Filter Mounting
(Superseded to 7073438YP)

$55.99

$

Usually ships in 2-12 days

0

31

Simplicity 7073439

ELEMENT, Air Filter
(Superseded to 7073439YP)

$

$

Not available

32

Simplicity 7073440

VALVE, Air Filter Drain
(Superseded to 7073440YP)

$35.99

$

In Stock, only 1 left!

0

33

Simplicity 7073443

CAP, Air Filter
(Superseded to 7073443YP)

$121.99

$

Usually ships in 2-12 days

0

34

Simplicity 7073488

CLAMP, Hose
(Superseded to 7073488YP)

$6.99

$

Usually ships in 2-12 days

0

35

Simplicity 7073002

ROD, Transmission Shift (3/8-16 thread)

$

$

Not available

36

Simplicity 7024159

COTTER PIN, 3/8 Self Lock
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

37

Simplicity 7072495SM

SWIVEL, 3/8 w/thru hole

$24.99

$

In Stock, only 1 left!

0

38

Simplicity 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

39

Simplicity 1924940SM

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
