UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Water Pump Assembly Parts Diagram

700S Utility Vehicle

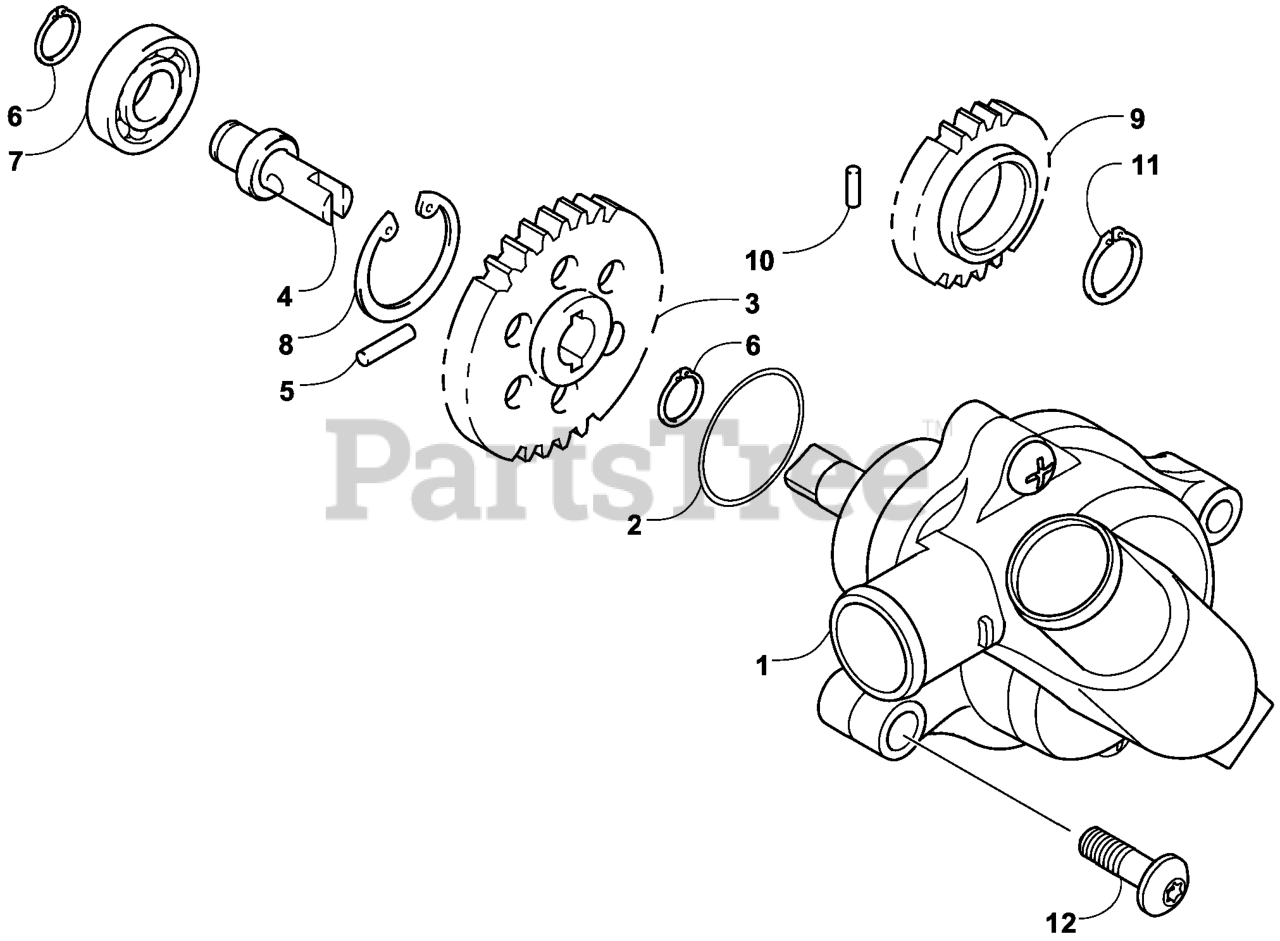

Water Pump Assembly Parts Diagram

  • Title

1

Exmark 132-2237

PUMP-WATER

Note: (inc. 2)

$

$

Not available

2

Exmark 132-2473

O-RING

$

$

Not available

3

Exmark 132-2238

GEAR-DRIVEN

$

$

Not available

4

Exmark 132-2239

SHAFT-DRIVEN GEAR

$

$

Not available

5

Exmark 132-2450

PIN

$

$

Not available

6

Exmark 132-2521

RING-RETAINING, EXTERNAL

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 132-2549

BEARING-SHAFT

$

$

Not available

8

Exmark 132-2522

CIRCLIP-SHAFT BEARING

$

$

Not available

9

Exmark 132-2208

GEAR-DRIVEN, OIL AND WATE

$

$

Not available

10

Exmark 132-2449

DOWEL-SOLID

$

$

Not available

11

Exmark 132-2523

RING-RETAINING, EXTERNAL

$

$

Not available

12

Exmark 1-323097

LEVER,TRANSMISSION

$

$

Not available
