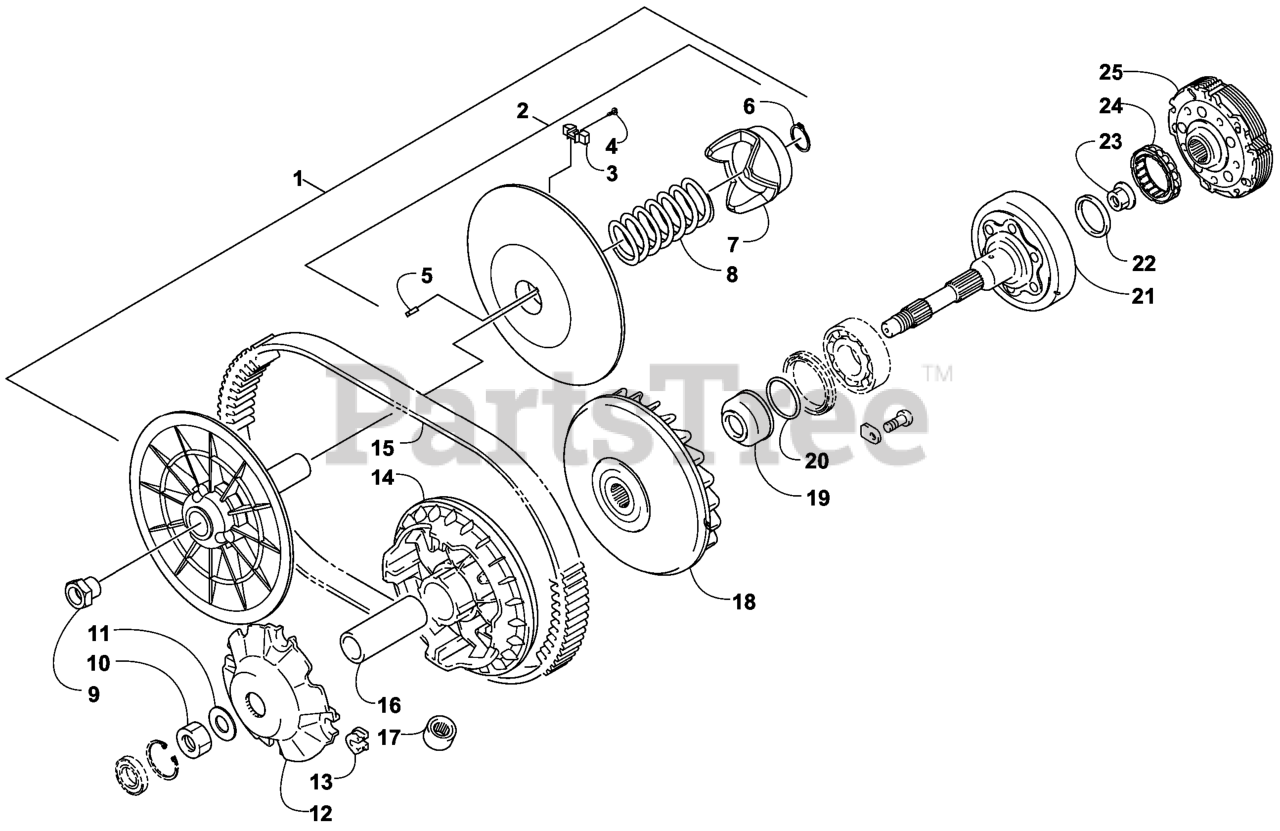

UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Transmission Assembly Parts Diagram

700S Utility Vehicle

Transmission Assembly Parts Diagram

  • Title

1

Exmark 1-323208

1-323298
(Superseded to 1-323298)

Note: (inc. 2-9)

$90.99

$

Usually ships in 3-6 days

0

2

Exmark 132-3209

Pulley, Driven - Uncalibrated

Note: (inc. 3-6)

$896.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2339

SHOE-CAM, DRIVEN PULLEY

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2317

SCREW-CAM SHOE

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2336

KEY

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2340

RING-SNAP, EXTERNAL

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2338

CAM-DRIVEN CLUTCH, 45 DEG

$235.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2335

SPRING-DRIVEN CLUTCH

$50.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2318

NUT

$28.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2393

NUT-HH, COUNTERSUNK

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 132-2441

WASHER

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2327

PLATE

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2328

DAMPER-MOVABLE DRIVE-Z

$6.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2326

SHEAVE-MOVABLE DRIVE

$206.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2313

BELT-DRIVE

$186.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2324

SPACER-MOVABLE DRIVE FACE

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2316

ROLLER-MOVABLE DRIVE

$

$

Not available

18

Exmark 132-2325

SHEAVE-STATIONARY, DRIVE

$93.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2314

SPACER-FIXED DRIVE

$107.99

$

Usually ships in 3-6 days

0

20

Exmark 132-1998

O-RING

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 132-2334

CLUTCH-HOUSING, 6-PLATE A

$428.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2506

SEAL-DRUM SHAFT

$

$

Not available

23

Exmark 132-2394

NUT-HHF, CCW

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 1-323223

1-403092
(Superseded to 1-403092)

$

$

Not available

25

Exmark 132-2342

CLUTCH-CENTRIFICAL, 6 PLA

$363.99

$

Usually ships in 3-6 days

0
