UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Steering Assembly Parts Diagram

700S Utility Vehicle

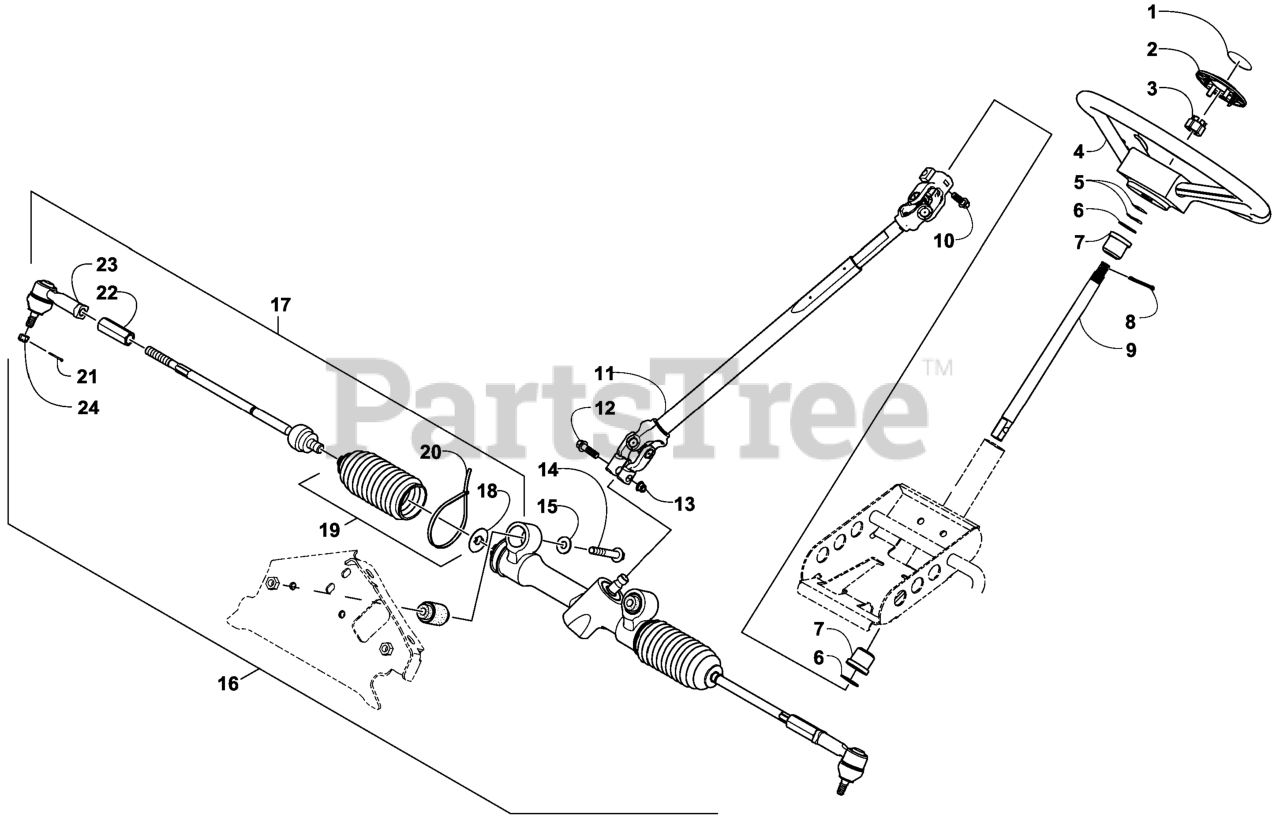

Steering Assembly Parts Diagram

  • Title
1

Exmark 132-3005

DECAL-STEERING WHEEL

$47.99

$

Usually ships in 3-6 days

0

2

Exmark 132-1813

CAP-HUB, STEERING WHEEL

$28.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1956

NUT-HH, SLOTTED

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1814

WHEEL-STEERING

$334.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2429

WASHER-BELLEVILLE

$8.99

$

Usually ships in 3-6 days

0

6

$5.99

$

Usually ships in 3-6 days

0

7

Exmark 132-1809

BUSHING-STEERING

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2634

CLIP-STEERING WHEEL

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 132-1812

SHAFT-STEERING WHEEL

$93.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2635

BOLT-PINCH

$22.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1817

SHAFT-LOWER STEERING

$416.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2637

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 132-3085

NUT-HHF, LOCK, (NI)

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 1-323053

DISCONTINUED EXMARK

$

$

Not available

15

Exmark 132-2105

WASHER-FLAT, HRDND

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 132-2058

STEERING ASM KIT (RACK AN

Note: (inc. 17-23)

$

$

Not available

17

Exmark 132-2061

TIE ROD KIT (INNER-W/ ROD

Note: (inc. 18-23)

$174.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1816

PLATE-LOCK, STEERING RACK

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2060

BOOT KIT (RACK AND PINION

Note: (inc. 20-21)

$47.99

$

Usually ships in 3-6 days

0

20

Exmark 132-1755

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 1-322098

103-0234
(Superseded to 103-0234)

$

$

Not available

22

Exmark 132-2056

NUT-HEX, JAM

Note: (inc. one No. 21)

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2059

ROD END KIT

Note: (inc. one No. 21)

$87.99

$

Usually ships in 3-6 days

0

24

Exmark 132-1895

NUT-HH, CASTLE

$4.99

$

Usually ships in 3-6 days

0
