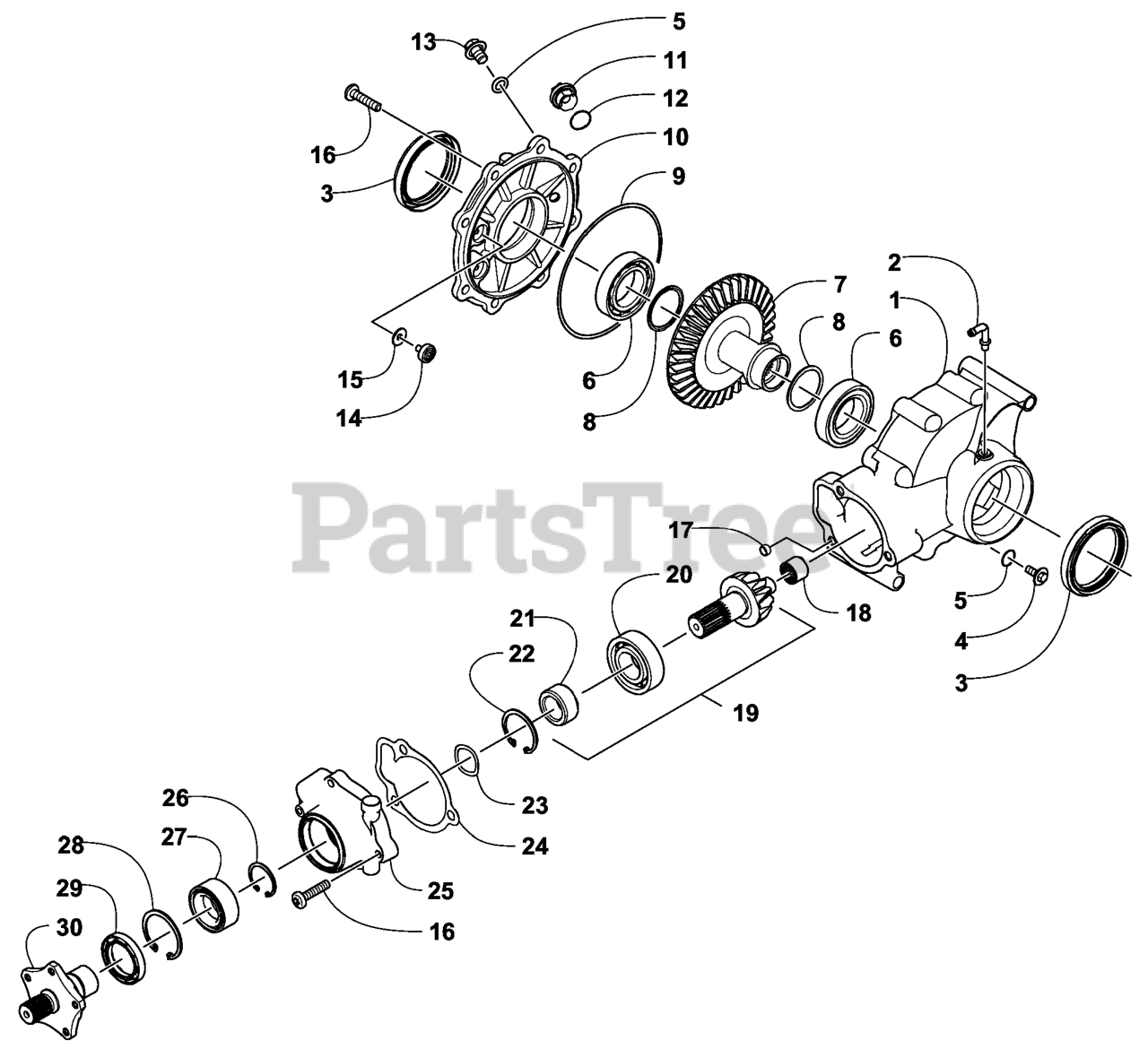

UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Rear Drive Gearcase Assembly Parts Diagram

700S Utility Vehicle

Rear Drive Gearcase Assembly Parts Diagram

  • Title

Exmark 1-323218

DISCONTINUED

$

$

Not available

1

Exmark 132-2693

HOUSING-GEARCASE, REAR

$

$

Not available

2

Exmark 132-2720

FITTING-BARB, 90 DEG

$

$

Not available

3

Exmark 132-3212

SEAL

$

$

Not available

4

Exmark 132-2582

PLUG-DRAIN, MAGNETIC

Note: (inc. one No. 5)

$

$

Not available

5

Exmark 132-1902

O-RING

$15.99

$

Usually ships in 3-6 days

0

6

Exmark 132-1769

BEARING-BALL

$32.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2567

GEAR-REAR, 36T)

$

$

Not available

8

Exmark 132-1770

SHIM

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1771

SHIM

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1772

SHIM

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1773

SHIM

$22.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1774

SHIM

$19.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1901

O-RING

$32.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2694

COVER-GEARCASE, REAR

$

$

Not available

11

Exmark 132-1766

PLUG-FILL

Note: (inc. 12)

$41.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1903

O-RING

$5.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2583

PLUG-OIL LEVEL

Note: (inc. one No. 5)

$

$

Not available

14

Exmark 132-1763

BUTTON-THRUST

$

$

Not available

15

Exmark 132-1778

SHIM

$

$

Not available

15

Exmark 132-1779

SHIM

$

$

Not available

15

Exmark 132-1780

SHIM

$

$

Not available

15

Exmark 132-1781

SHIM

$

$

Not available

15

Exmark 132-1782

SHIM

$

$

Not available

16

Exmark 132-1899

SCREW-TSPNH, SELF TAP

$

$

Not available

17

Exmark 132-1775

PIN-DOWEL

$

$

Not available

18

Exmark 132-1765

BEARING-NEEDLE

$32.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2691

GEARPINION, 10T

Note: (inc. 20-21)

$

$

Not available

20

Exmark 132-1764

BEARING-BALL

$47.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2608

COLLAR-RETAINING

$

$

Not available

22

Exmark 132-2640

RING-RETAIN, INT

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 132-1789

WASHER-SPRING

$13.99

$

Usually ships in 3-6 days

0

24

Exmark 132-1786

GASKET-FLANGE

$5.99

$

Usually ships in 3-6 days

0

25

Exmark 1-322038

ARM - IDLER

$

$

Not available

26

Exmark 132-1937

RING-RETAINING

$33.99

$

Usually ships in 3-6 days

0

27

Exmark 132-1762

BEARING-BALL

$60.99

$

Usually ships in 3-6 days

0

28

Exmark 132-1768

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 132-2587

SEAL

$47.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2688

SHAFT-INPUT

$

$

Not available
