UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Drive Train Assembly Parts Diagram

700S Utility Vehicle

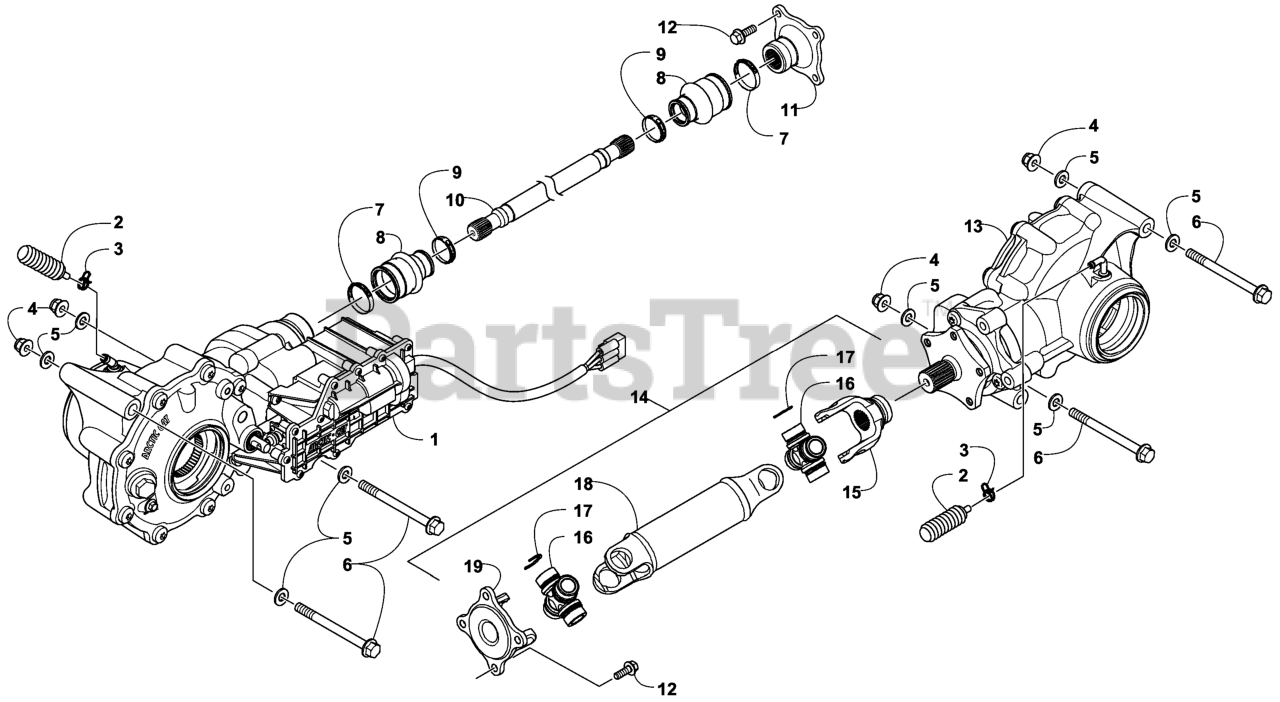

Drive Train Assembly Parts Diagram

  • Title

1

Exmark 132-3217

GEARCASE ASM-FRONT DRIVE

$2713.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2593

BLADDER-CASE

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1906

CLAMP-HOSE, DOUBLE WIRE

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

5

Exmark 132-1924

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 132-1916

SCREW-HFH

$5.99

$

Usually ships in 3-6 days

0

7

Exmark 132-1912

CLAMP

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 132-1790

BOOT-COUPLER

$10.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1919

CLAMP

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2605

SHAFT-PROPELLER, FRONT

$337.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1787

FLANGE-OUTPUT

$151.99

$

Usually ships in 3-6 days

0

12

Exmark 132-3057

SCREW-HFH

$1.49

$

In Stock, Qty 9

0

13

Exmark 1-323218

DISCONTINUED

$

$

Not available

14

Exmark 132-2687

DRIVESHAFT-REAR

Note: (inc. 15-19)

$455.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2592

YOKE-SLIP

$131.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1785

CROSS-UNIVERSAL

Note: (inc.17)

$41.99

$

In Stock, only 4 left!

0

17

Exmark 132-1913

RETAINER-CROSS

$5.99

$

In Stock, only 2 left!

0

18

Exmark 132-2686

DRIVESHAFT-REAR

$187.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2595

YOKE-FLANGE

$98.99

$

Usually ships in 3-6 days

0
