UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Dash Assembly Parts Diagram

700S Utility Vehicle

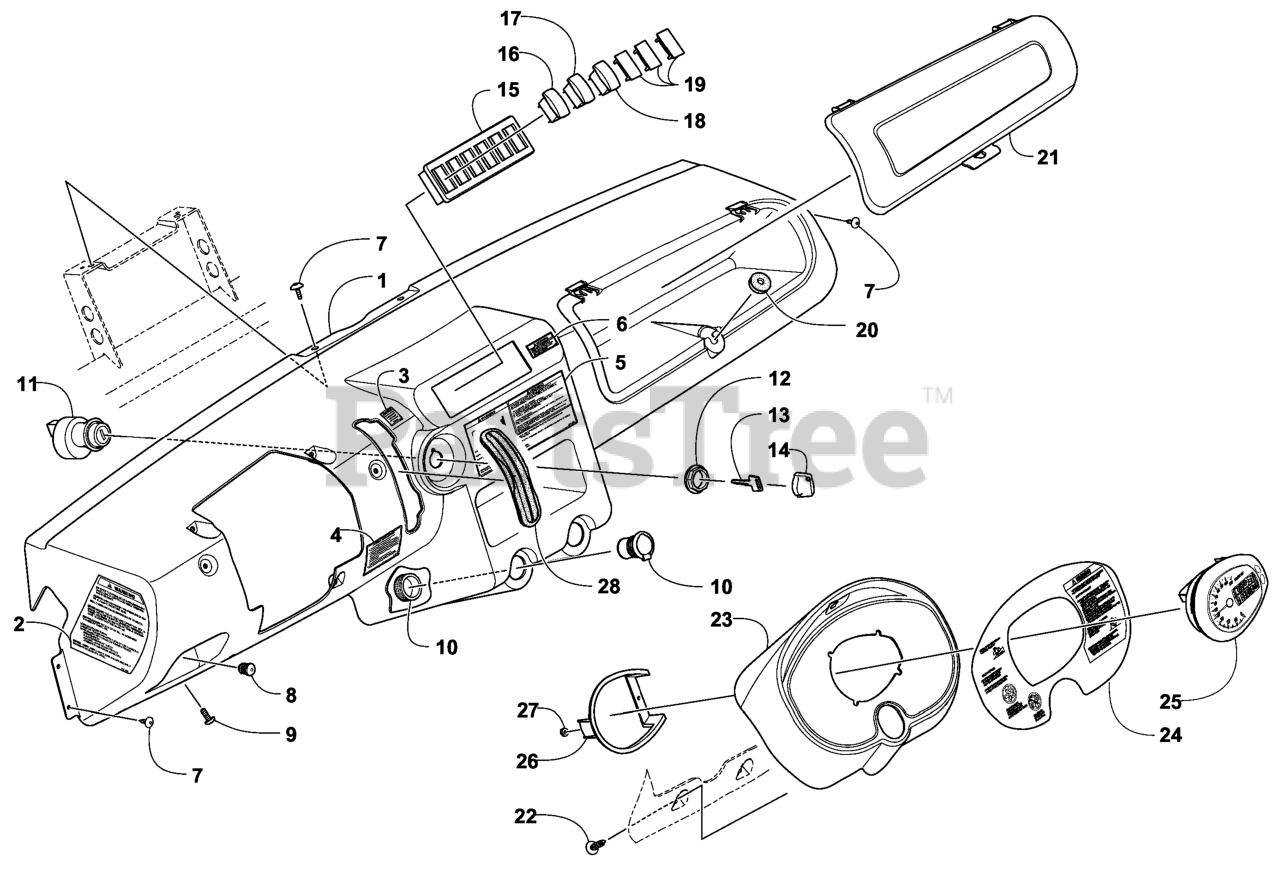

Dash Assembly Parts Diagram

  • Title

1

Exmark 132-3021

PANEL-DASH, NON TILT/DASH

$902.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2973

DECAL-WARNING, TIRE PRESS

$31.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2733

DECAL-CAUTION, ENGINE RPM

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 132-2732

DECAL-STARTING INSTRUCTIO

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2953

DECAL-WARNING, DASH CENTE

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2624

DECAL-WARNING, DIFFERENTI

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

In Stock, Qty 6

0

8

Exmark 132-2712

PLUG-TUBE

$6.49

$

Usually ships in 3-6 days

0

9

Exmark 132-1945

SCREW

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 132-2111

OUTLET-12V DC

$39.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1982

SWITCH-IGNITION, START

Note: (inc. 12-14)

$87.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1986

NUT

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1983

KEY-BLANK

$36.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1984

KEY-BLANK

$36.99

$

Usually ships in 3-6 days

0

14

Exmark 132-1985

COVER-KEY

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1832

PANEL-SWITCH MOUNT

$37.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1826

SWITCH-LIGHTS

$102.99

$

Usually ships in 3-6 days

0

17

Exmark 132-1824

SWITCH

$60.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1828

SWITCH-REVERSE, OVERRIDE

$87.99

$

Usually ships in 3-6 days

0

19

Exmark 132-1827

PLUG-SWITCH HOLE

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 132-1935

GROMMET-LATCH, GLOVE BOX

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 132-2972

COVER-GLOVE BOX

$51.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1907

SCREW-SELF TAPPING

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 132-2616

POD-INSTRUMENT

$58.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2976

DECAL-WARNING, DASH

$41.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2078

GAUGE

$978.99

$

Usually ships in 3-6 days

0

26

Exmark 132-1888

CLAMP-PLASTIC

$8.49

$

Usually ships in 3-6 days

0

27

Exmark 132-1929

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 132-1989

KIT-SHIFT BOOT

$46.99

$

Usually ships in 3-6 days

0
