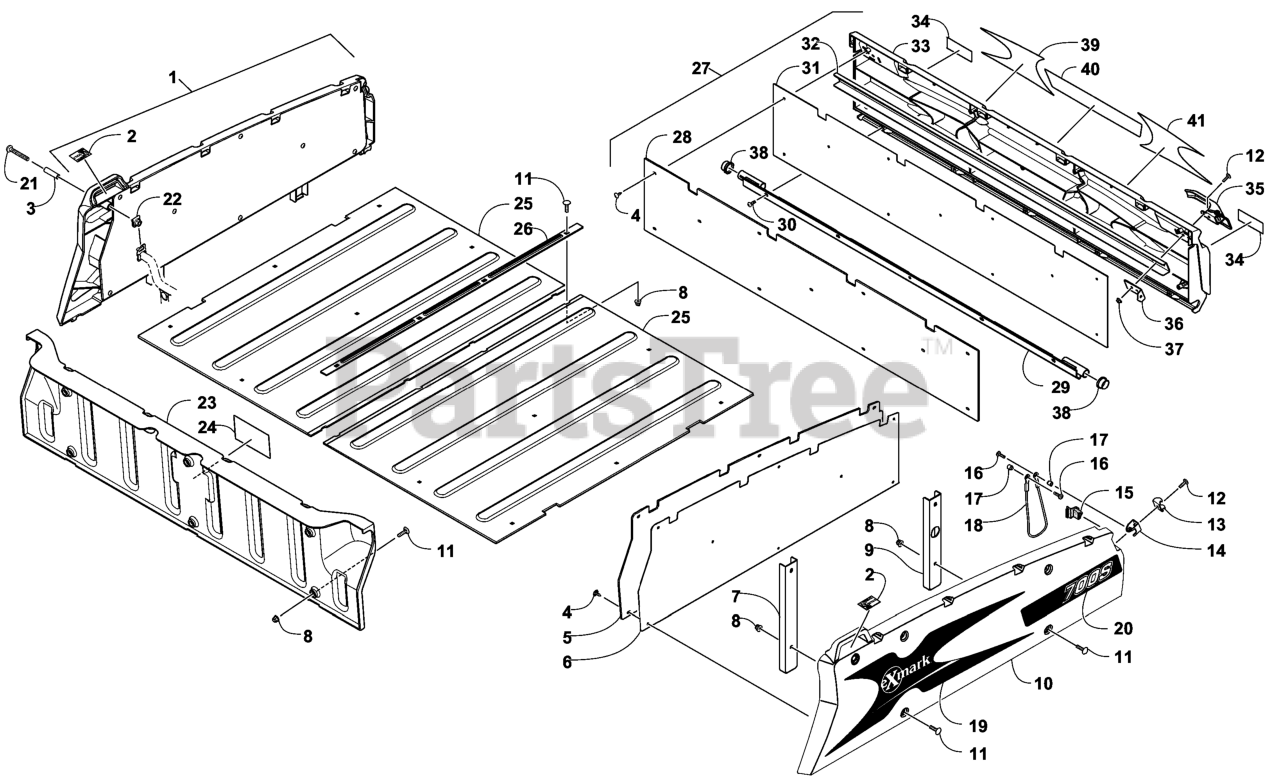

UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Cargo Box And Tailgate Assembly Parts Diagram

700S Utility Vehicle

Cargo Box And Tailgate Assembly Parts Diagram

  • Title

1

Exmark 132-2983

RH SIDE CARGO BOX ASM

Note: (inc. 2-15)

$649.99

$

Usually ships in 3-6 days

0

1

Exmark 132-2984

LH SIDE CARGO BOX ASM

Note: (inc. 2-15)

$649.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2975

DECAL-WARNING, BOX

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 132-2742

TUBE-SPACER

$10.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2628

SCREW-TSTRH, SELFTAP

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 132-2985

PANEL-INNER, CARGO BOX

$240.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2760

PAD-FOAM, SIDE PANEL

$27.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2979

BRACKET-SIDE MOUNT, REAR

$65.99

$

Usually ships in 3-6 days

0

8

Exmark 132-3081

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 132-2978

BRACKET-SIDE MOUNT, FRONT

$65.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2748

PANEL-SIDE, RH

$181.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2749

PANEL-SIDE, LH

$240.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1948

BOLT-CARR

$2.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2631

SCREW-TSPRH

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2786

BRACKET-LATCH

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2745

BRACKET-LATCH

$31.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2746

PAD-TAILGATE, RH

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 132-2747

PAD-TAILGATE, LH

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 132-3103

SCREW-TSPNH

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 132-2626

SPACER-TAILGATE CABLE

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 132-2028

CABLE-TAILGATE

$31.99

$

Usually ships in 3-6 days

0

19

Exmark 1-323006

1-323410
(Superseded to 1-323410)

$6.99

$

In Stock, only 3 left!

0

19

Exmark 132-3007

DECAL-BOX-X LH

$167.99

$

Usually ships in 3-6 days

0

20

Exmark 132-3015

DECAL-BOX, RH SIDE 700

$78.99

$

Usually ships in 3-6 days

0

20

Exmark 132-3016

DECAL-BOX, LH SIDE 700

$78.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2627

SCREW-TSPNH

$14.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2744

CLIP-SIDE PANEL MOUNTING

$24.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2967

PANEL-FRONT

$181.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2974

DECAL-WARNING, CARGO

$31.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2751

PANEL-BED, CARGO BOX

$346.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2795

STRIP-BOX BOT CENTER

$60.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2987

TAILGATE ASM

Note: (inc. 28-37)

$797.99

$

Usually ships in 3-6 days

0

28

Exmark 132-2986

PANEL-INNER, TAILGATE

$181.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2989

PIVOT-TAILGATE

$210.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2642

SCREW-TSPH

$2.49

$

Usually ships in 3-6 days

0

31

Exmark 132-2761

PAD-FOAM, TAILGATE

$24.99

$

Usually ships in 3-6 days

0

32

Exmark 132-2762

SUPPORT-TAILGATE

$87.99

$

Usually ships in 3-6 days

0

33

Exmark 132-2750

PANEL-TAILGATE

$240.99

$

Usually ships in 3-6 days

0

34

Exmark 132-2730

REFLECTOR-REAR

$11.99

$

Usually ships in 3-6 days

0

35

Exmark 132-2789

LATCH-TAILGATE

$96.99

$

Usually ships in 3-6 days

0

36

Exmark 132-2743

BRACKET-LATCH, SUPPORT

$33.99

$

Usually ships in 3-6 days

0

37

Exmark 132-3079

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 132-2737

BUSHING-PIVOT, TAILGATE

$11.99

$

Usually ships in 3-6 days

0

39

Exmark 132-3010

DECAL-TAILGATE, RH SIDE

$36.99

$

Usually ships in 3-6 days

0

40

Exmark 132-3014

DECAL-TAILGATE, CENTER

$31.99

$

Usually ships in 3-6 days

0

41

Exmark 132-3011

DECAL-TAILGATE, LH SIDE

$36.99

$

Usually ships in 3-6 days

0
