UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Wiring Harness Assembly Parts Diagram

500S Utility Vehicle

Wiring Harness Assembly Parts Diagram

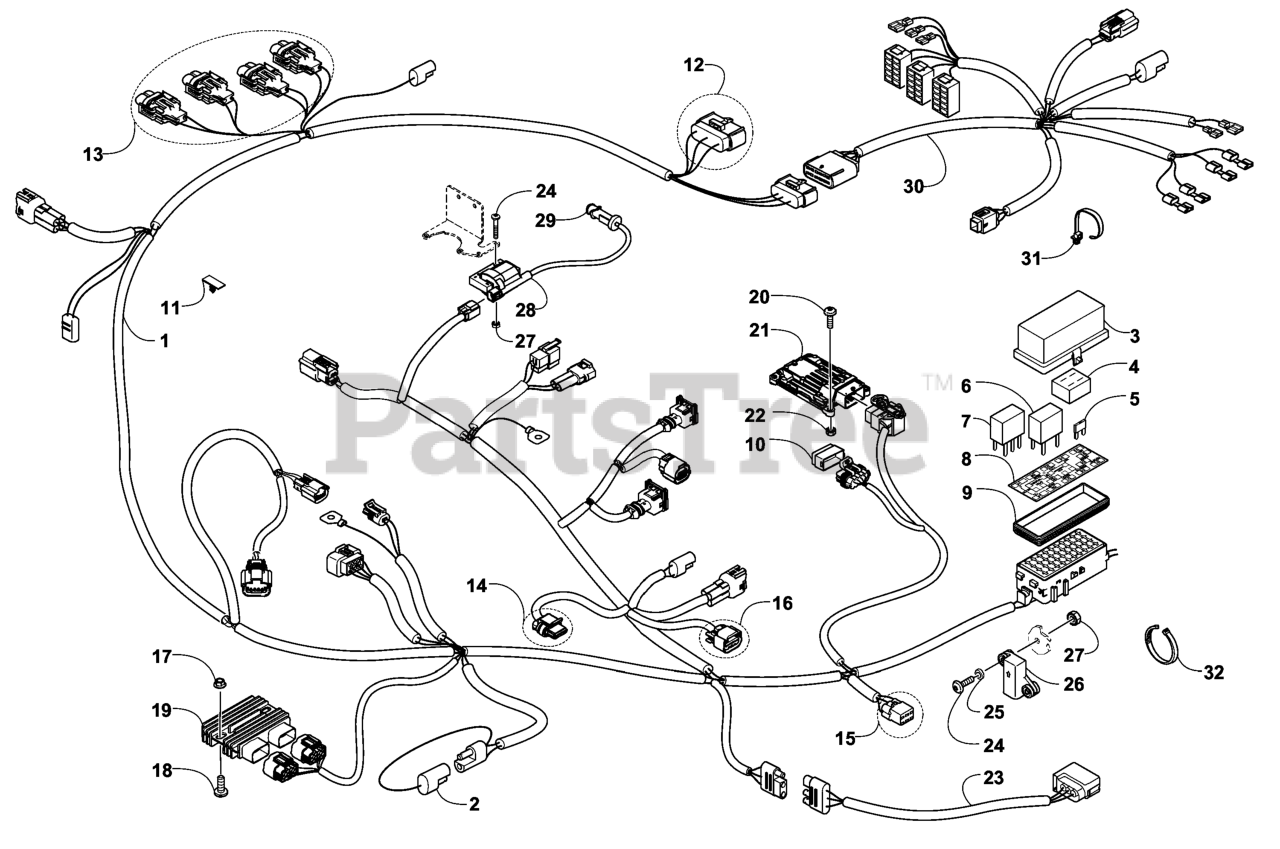

  • Title

1

Exmark 132-2024

HARNESS-DIA, MAIN

Note: (inc. 2-11)

$929.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2021

TETHER-REAR ACCESSORY CON

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1977

COVER

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1971

HOLDER-SPARE FUSE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 132-1969

FUSE-MINI, 10A

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 132-1968

FUSE-MINI, 15A

$8.49

$

Usually ships in 3-6 days

0

5

Exmark 132-1967

FUSE-MINI, 30A

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 132-1972

RELAY-SPST

$54.99

$

Usually ships in 3-6 days

0

7

Exmark 132-1970

RELAY-SPDT

$47.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2954

DECAL-PDM

$27.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1978

SEAL-PDM

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 132-1981

COVER ASM

$22.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1980

RETAINER-CLIP, HARNESS

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2667

KIT-CAN GAUGE CONNECTOR

$125.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2657

KIT-HL CONNECTOR REPAIR (

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 132-1988

KIT-REPAIR, ISC

$78.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2659

KIT-TILT SENSOR CONNECTOR

$47.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2666

KIT-REPAIR, 4P TMAP CONNE

$55.99

$

Usually ships in 3-6 days

0

17

Exmark 132-3079

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 132-3107

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2352

REGULATOR-VOLTAGE

$279.99

$

Usually ships in 3-6 days

0

20

Exmark 132-3106

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 132-2079

ECM-PROGRAMMED

$1293.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2094

NUT-HH, SEMS

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 132-2022

HARNESS-ADAPTER, TAIL LIG

$64.99

$

Usually ships in 3-6 days

0

24

Exmark 132-3088

SCREW-TSPNH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 132-1754

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

26

Exmark 132-1825

SENSOR-INCLINATION

$125.99

$

Usually ships in 3-6 days

0

27

Exmark 132-1929

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2350

COIL/CAP, IGNITION ASM

Note: (inc. 29)

$362.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2348

CAP-SPARK PLUG

$64.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2025

HARNESS-CONSOLE

$181.99

$

Usually ships in 3-6 days

0

31

Exmark 132-1897

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 132-1753

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 132-1755

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 132-2097

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
