UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Water Pump Assembly Parts Diagram

500S Utility Vehicle

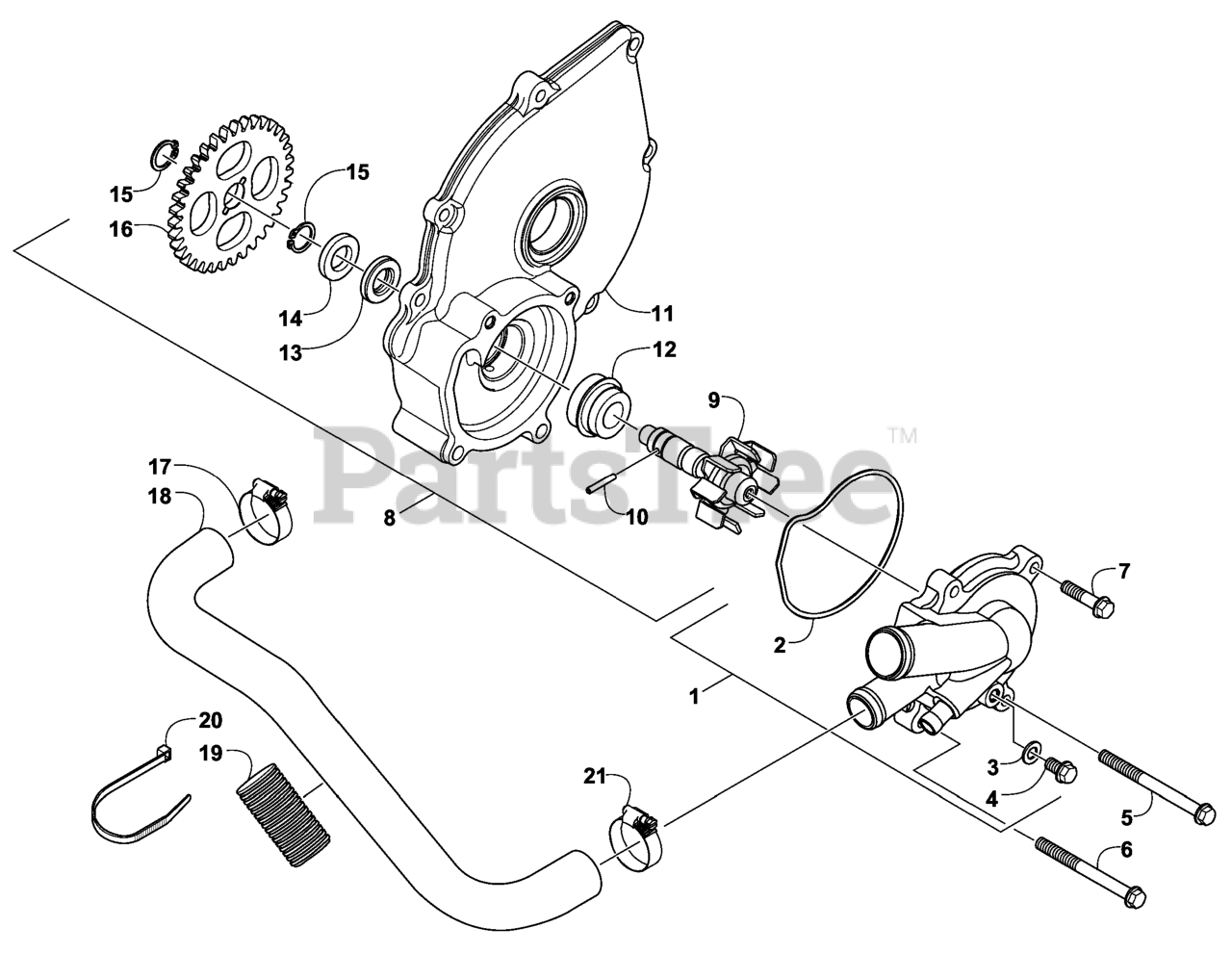

Water Pump Assembly Parts Diagram

  • Title

1

Exmark 132-2242

COVER ASM, WATER PUMP

Note: (inc. 2-4)

$78.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2514

RING-WATER PUMP

$10.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2828

WASHER

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 132-2835

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 132-2372

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2387

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2814

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 132-2241

COVER-L, WATER PUMP

Note: (inc. 9-16)

$387.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2243

SHAFT-IMPELLER, WATER PUM

$96.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2462

ROLLER

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 1-322158

DISCONTINUED

$

$

Not available

12

Exmark 132-2848

SEAL-MECHANICAL

$41.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2513

SEAL-OIL

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 132-2443

WASHER-THRUST

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 132-2533

CLIP-CIR

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2215

GEAR-DRIVEN, WATER PUMP

$128.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2625

CLAMP

$10.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1838

HOSE-WATER

$60.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2707

CONDUIT-FLEXIBLE, HI TEMP

$63.99

$

Usually ships in 3-6 days

0

20

Exmark 132-1753

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 132-2849

CLAMP

$8.99

$

Usually ships in 3-6 days

0
