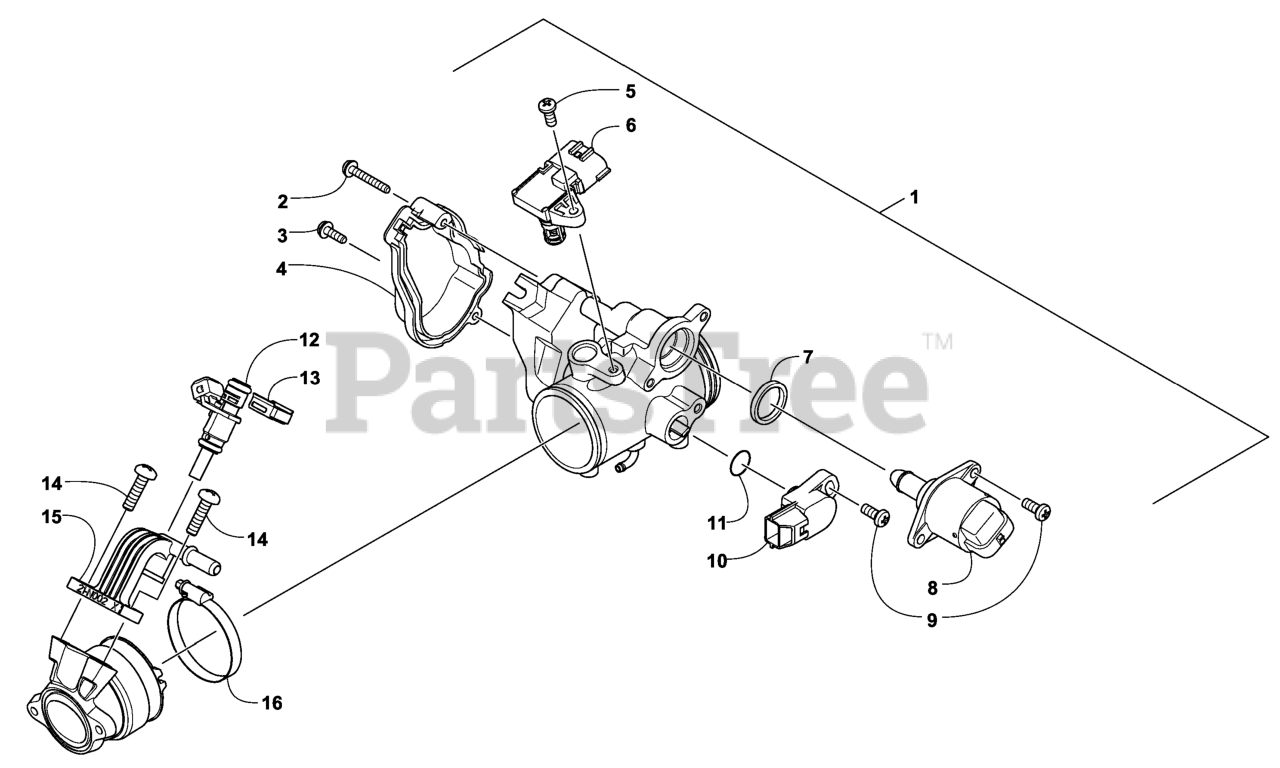

UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Throttle Body Assembly Parts Diagram

500S Utility Vehicle

Throttle Body Assembly Parts Diagram

  • Title

1

Exmark 132-2083

THROTTLE BODY ASM

Note: (inc. 2-11)

$1626.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2907

SCREW

$

$

Not available

3

Exmark 132-2906

SCREW

$

$

Not available

4

Exmark 132-2349

COVER-WIRE STAY

$

$

Not available

5

Exmark 132-2564

SCREW-WASHER

$

$

Not available

6

Exmark 132-2345

SENSOR-T MAP

$488.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2562

SEAL-IDLE SPEED ACTUATOR

$

$

Not available

8

Exmark 132-2347

ACTUATOR-IDLE SPEED

$467.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2855

SCREW

$

$

Not available

10

Exmark 132-2346

SENSOR-THROTTLE POSITION

Note: (inc. 11)

$

$

Not available

11

Exmark 132-2902

O-RING

$

$

Not available

12

Exmark 1-322017

1-322049-01
(Superseded to 1-322049-01)

$

$

Not available

13

Exmark 132-2019

CLIP-INJECTOR

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 1-323091

DISCONTINUED (EXMARK)

$

$

Not available

15

Exmark 132-2018

RAIL-FUEL

$109.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1894

CLAMP-WORM, HOSE

$

$

Not available
