UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Secondary Drive Assembly Parts Diagram

500S Utility Vehicle

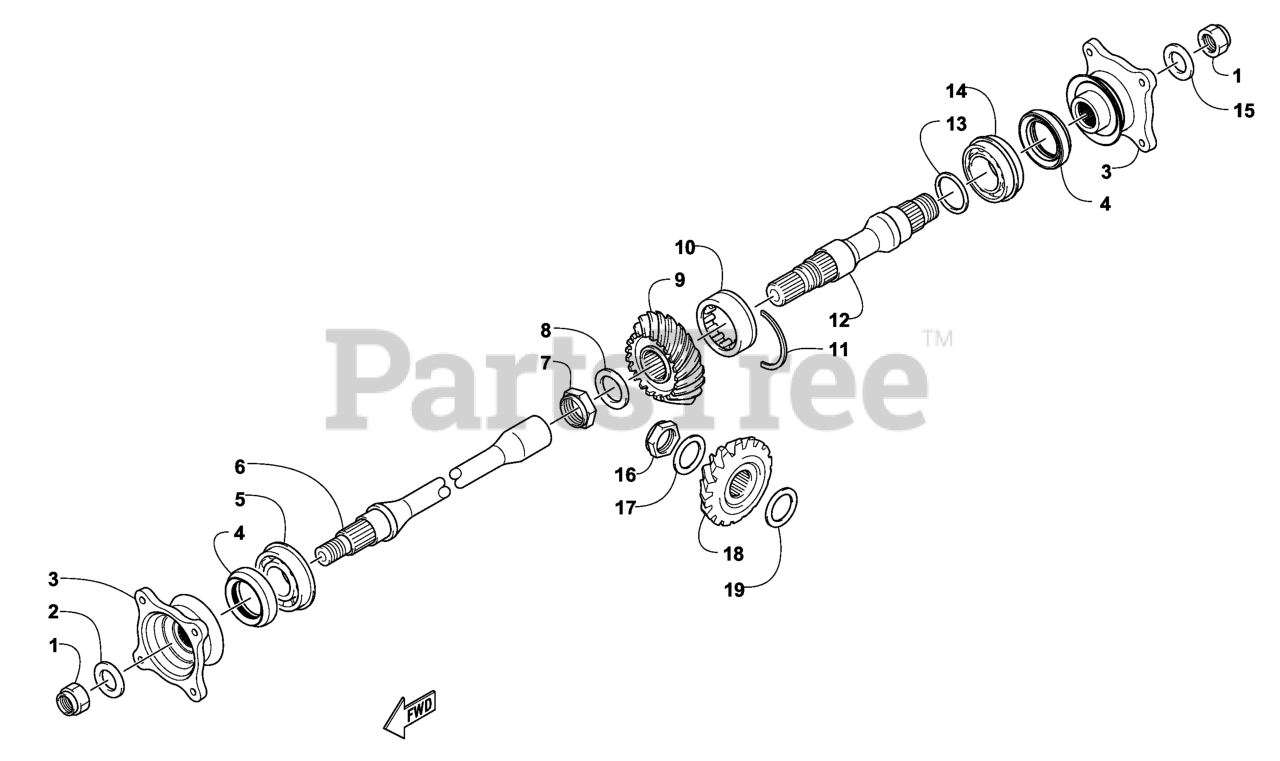

Secondary Drive Assembly Parts Diagram

  • Title

1

Exmark 132-2908

NUT

$

$

Not available

2

Exmark 132-2847

WASHER

$

$

Not available

3

Exmark 132-2277

FLANGE-OUTPUT JOINT, REAR

$158.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2493

SEAL-OIL, REAR SECONDARY

$

$

Not available

5

Exmark 132-2543

BEARING

$

$

Not available

6

Exmark 132-2275

SHAFT-SECONDARY, DRIVEN (

$

$

Not available

7

Exmark 132-2397

NUT

$

$

Not available

8

Exmark 132-2438

WASHER

$

$

Not available

9

Exmark 132-2274

GEAR-DRIVEN, SECONDARY

$

$

Not available

10

Exmark 132-2545

BEARING-NEEDLE, ROLLER (W

$

$

Not available

11

Exmark 132-2279

C-RING-DRIVEN BEARING

$

$

Not available

12

Exmark 132-2276

SHAFT-SECONDARY DRIVEN, R

$

$

Not available

13

Exmark 132-2857

SHIM (A DRIVEN BEVEL GEAR

$

$

Not available

13

Exmark 132-2858

SHIM (B DRIVEN BEVEL GEAR

$

$

Not available

13

Exmark 132-2859

SHIM (C DRIVEN BEVEL GEAR

$

$

Not available

13

Exmark 132-2860

SHIM (D DRIVEN BEVEL GEAR

$

$

Not available

13

Exmark 132-2861

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2862

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2863

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2864

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2865

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2866

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2867

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2437

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2868

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

13

Exmark 132-2869

SHIM (DRIVEN BEVEL GEAR)

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 132-2546

BEARING-CONRAD,WITH SNAPR

$

$

Not available

15

Exmark 132-2903

WASHER

$

$

Not available

16

Exmark 132-2400

NUT-HH, COLLARD

$

$

Not available

17

Exmark 132-2825

WASHER-THRUST

$

$

Not available

18

Exmark 132-2273

GEAR-DRIVEN, SECONDARY

$

$

Not available

19

Exmark 132-2870

SHIM (DRIVEN BEVEL GEAR)

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2871

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2872

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2873

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2874

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2875

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2876

SHIM (DRIVEN BEVEL GEAR)

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2877

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2878

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2879

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2880

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2881

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available

19

Exmark 132-2882

SHIM (DRIVEN BEVEL GEAR)

$8.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2883

SHIM (DRIVEN BEVEL GEAR)

$

$

Not available
