UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Rops And Taillight Assembly Parts Diagram

500S Utility Vehicle

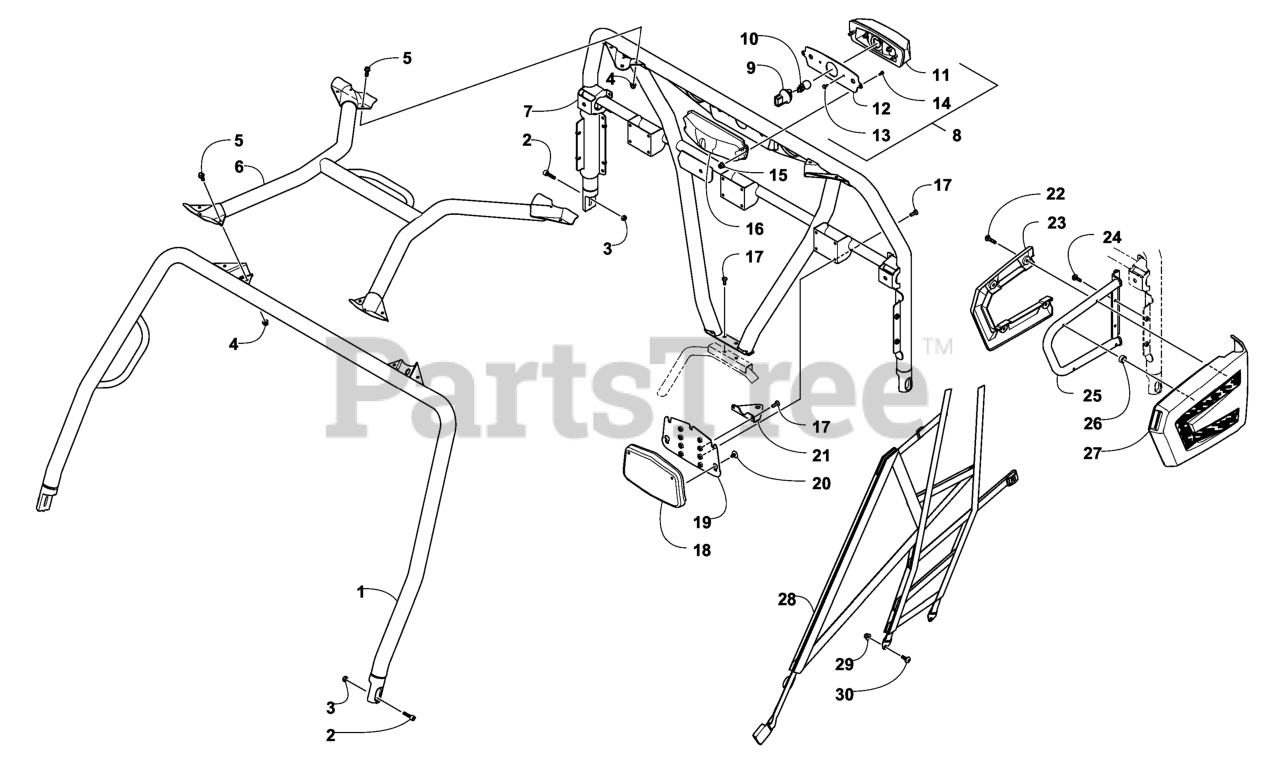

Rops And Taillight Assembly Parts Diagram

  • Title

1

Exmark 132-2992

HOOP-CANOPY, FRONT

$451.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2643

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2645

NUT-HH, LOCK

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 132-3083

NUT-HHF, LOCK (NI)

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 132-2644

SCREW-HFH

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2993

CANOPY-TOP

$451.99

$

Usually ships in 3-6 days

0

7

Exmark 132-3046

HOOP-CANOPY, REAR

$1012.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2062

TAIL LIGHT ASM

Note: (inc. 9-11)

$147.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1823

SOCKET-TAIL LIGHT

$23.99

$

Usually ships in 3-6 days

0

10

Exmark 132-1822

BULB-TAIL LIGHT

$31.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2063

HOUSING-TAIL LIGHT

$87.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2726

BRACKET-MOUNT, TAILLIGHT

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2099

SCREW-HWH, SELF TAP

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 132-3090

SCREW-TSPNH

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 1-323084

LINKAGE,LOWER CALIPER RH

$21.99

$

In Stock, only 1 left!

0

16

Exmark 132-2796

COVER-TAILLIGHT

$

$

Not available

17

Exmark 132-1911

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 132-2969

PAD-HEADREST

$41.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2701

MOUNT-HEADREST

$43.99

$

Usually ships in 3-6 days

0

20

Exmark 1-322103

DISCONTINUED

$

$

Not available

21

Exmark 132-2982

BRACKET-MOUNT, FLAG

$31.99

$

Usually ships in 3-6 days

0

22

Exmark 132-3115

SCREW-TSPRH

$23.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2960

GUARD-SHOULDER INNER, RH

$38.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2961

GUARD-SHOULDER INNER, LH

$38.99

$

Usually ships in 3-6 days

0

24

Exmark 132-3114

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 132-2990

SUPPORT-SHOULDER GUARD, R

$167.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2991

SUPPORT-SHOULDER GUARD, L

$167.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2647

SLEEVE-METAL

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 132-2958

GUARD-SHOULDER, RH

$206.99

$

Usually ships in 3-6 days

0

28

Exmark 132-2959

GUARD-SHOULDER, LH

$206.99

$

Usually ships in 3-6 days

0

28

Exmark 132-2962

GUARD-SHOULDER NET, RH

$206.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2963

GUARD-SHOULDER NET, LH

$206.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2646

NUT-HHF, LOCK (NI)

$2.49

$

Usually ships in 3-6 days

0

30

Exmark 132-2650

BOLT-SHOULDER

$7.99

$

Usually ships in 3-6 days

0
