UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Oil Pump And Strainer Assembly Parts Diagram

500S Utility Vehicle

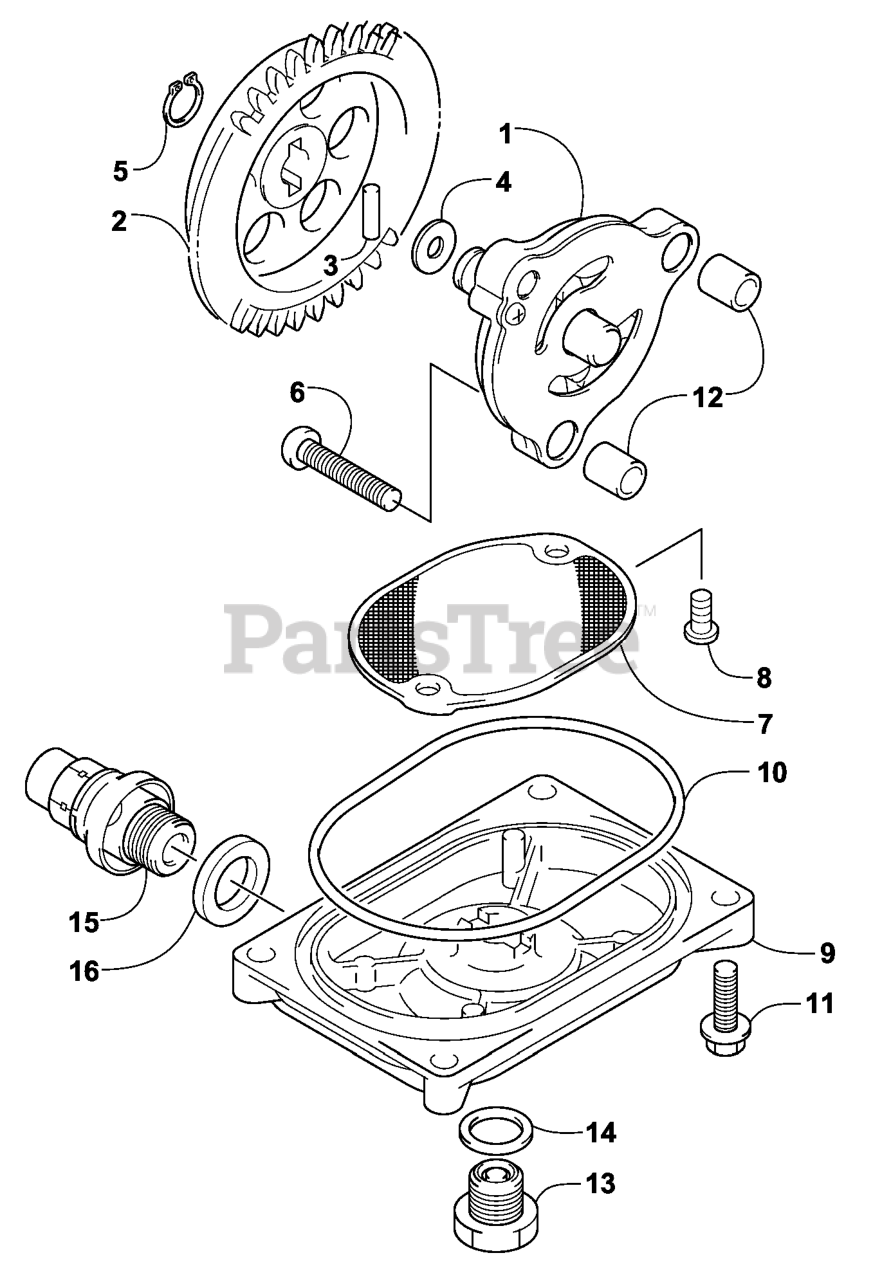

Oil Pump And Strainer Assembly Parts Diagram

  • Title

1

Exmark 1-322230

ARM-ASSIST

$44.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2218

GEAR-DRIVEN

$47.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2221

PIN-DRIVEN GEAR

$5.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2408

SHIM

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2833

CLIP-CIR, EXTERNAL

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 132-2381

BOLT-FLANGE

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 1-322223

116-6131
(Superseded to 116-6131)

$948.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2929

BOLT-WASH

$5.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2222

CAP-STRAINER, OIL

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2499

O-RING

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2814

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2455

DOWEL-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2227

PLUG-DRAIN, MAGNETIC

$24.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2492

WASHER-COMPRESSION

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 1-322229

1-324387
(Superseded to 1-324387)

Note: (inc. 16)

$

$

Not available

16

Exmark 132-2503

O-RING

$27.99

$

Usually ships in 3-6 days

0
