UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Hood And Headlight Assembly Parts Diagram

500S Utility Vehicle

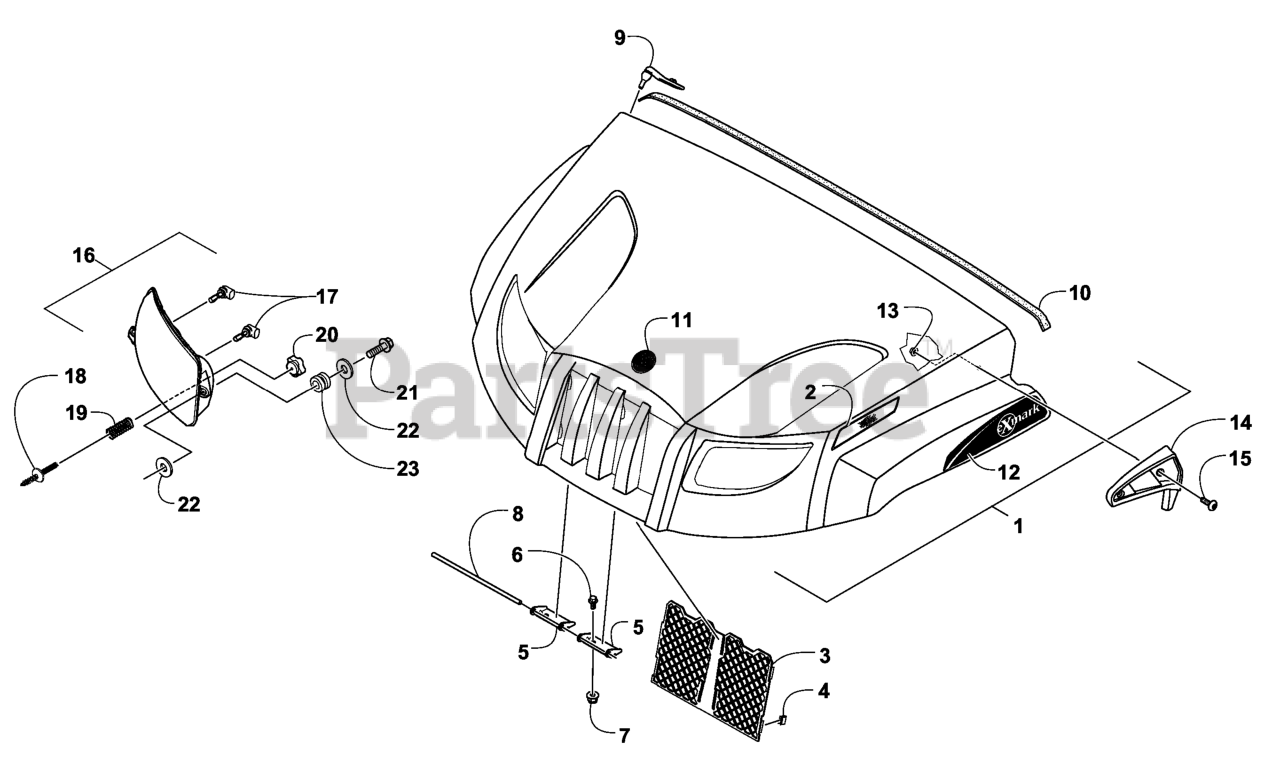

Hood And Headlight Assembly Parts Diagram

  • Title

1

Exmark 1-323041

DISCONTINUED (EXMARK)

Note: (inc. 2)

$

$

Not available

2

Exmark 132-1851

REFLECTOR-FRONT, RH

$11.99

$

Usually ships in 3-6 days

0

2

Exmark 132-1852

REFLECTOR-FRONT, LH

$11.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2617

GRILL-SCREEN

$37.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1756

CLIP-U TYPE

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 132-2782

BRACKET-HOOD HINGE

$24.99

$

Usually ships in 3-6 days

0

6

Exmark 132-3057

SCREW-HFH

$1.49

$

In Stock, Qty 9

0

7

Exmark 132-3085

NUT-HHF, LOCK, (NI)

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 132-2620

PIN-HOOD

$19.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2797

STRAP-HOLDDOWN, HOOD

$16.99

$

Usually ships in 3-6 days

0

10

Exmark 132-1886

SEAL-HOOD

$10.99

$

Usually ships in 3-6 days

0

11

Exmark 132-3004

DECAL-EXMARK

$37.99

$

Usually ships in 3-6 days

0

12

Exmark 132-3012

DECAL-BOX HOOD, RH

$60.99

$

Usually ships in 3-6 days

0

12

Exmark 132-3013

DECAL-BOX HOOD, LH

$60.99

$

Usually ships in 3-6 days

0

13

Exmark 1-323084

LINKAGE,LOWER CALIPER RH

$21.99

$

In Stock, only 1 left!

0

14

Exmark 132-2758

LOUVER-HOOD, RH

$78.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2759

LOUVER-HOOD, LH

$78.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1909

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 132-2065

HEADLIGHT-RH

Note: (inc. two No. 17)

$302.99

$

Usually ships in 3-6 days

0

16

Exmark 1-322064

DISCONTINUED (EXMARK)

Note: (inc. two No. 17)

$

$

Not available

17

Exmark 132-1821

BULB-HEADLIGHT

$36.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1933

STUD-DOUBLE END

$7.49

$

Usually ships in 3-6 days

0

19

Exmark 132-1934

SPRING-ADJUSTMENT, HEADLI

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 132-1932

KNOB-ADJUSTMENT

$10.99

$

Usually ships in 3-6 days

0

21

Exmark 1-322108

BELLCRANK ASM

$172.99

$

Usually ships in 3-6 days

0

22

Exmark 132-3049

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 132-1925

GROMMET-GAUGE MOUNT

$3.99

$

Usually ships in 3-6 days

0
