UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Front Drive Gearcase Assembly Parts Diagram

500S Utility Vehicle

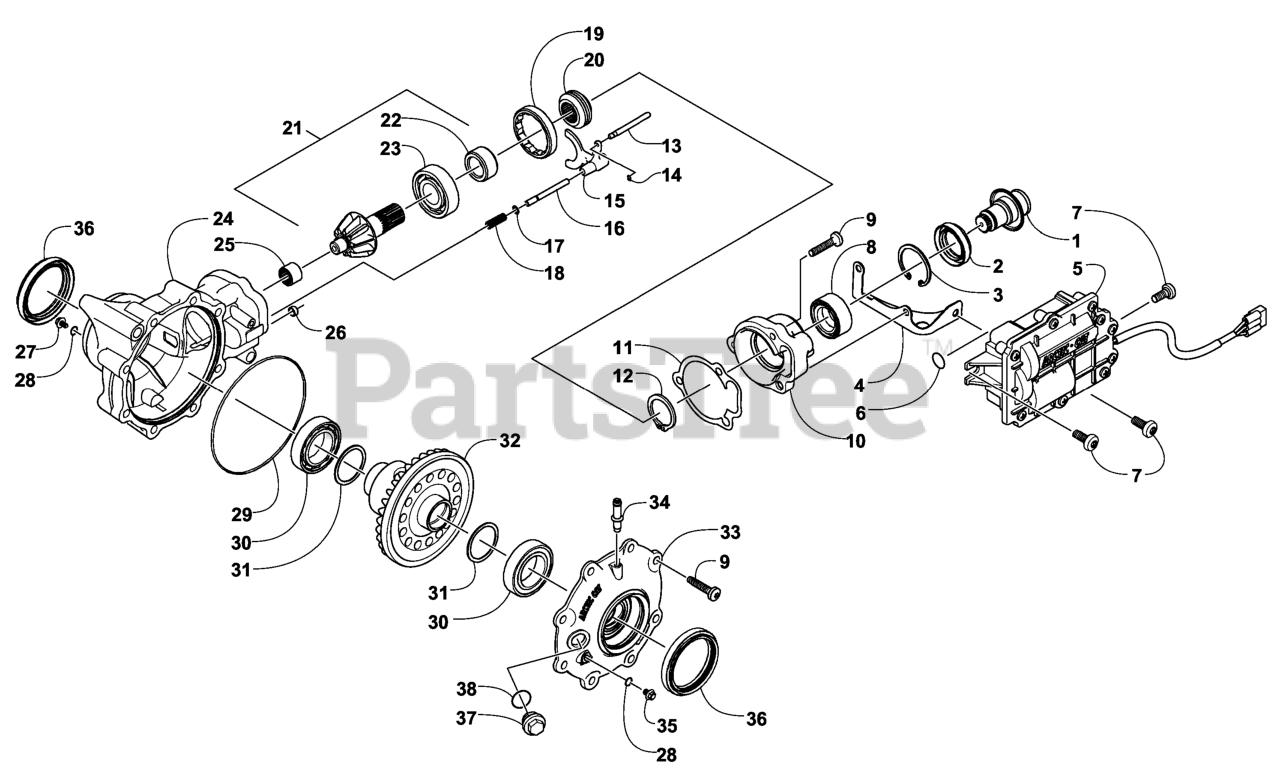

Front Drive Gearcase Assembly Parts Diagram

  • Title

Exmark 132-2913

GEARCASE-FRONT

$3980.99

$

Usually ships in 3-6 days

0

1

Exmark 132-2892

SHAFT-INPUT

$131.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2949

SEAL

$8.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2891

RING-RETAINING

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2951

BRACKET-ACTUATOR

$16.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2905

ACTUATOR ASM

$844.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2937

O-RING, ACTUATOR

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2940

BOLT-FLANGE

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2950

BEARING-BALL, DOUBLE ROW

$131.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2819

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2948

HOUSING-PINION

$71.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2945

GASKET-FLANGE

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2890

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 132-2946

PUSHROD-SELECTOR

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2936

RING-RETAINING

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2947

FORK-SELECTOR

$71.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2944

SHAFT-SHUTTLE

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2935

O-RING

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 132-2934

SPRING-RETURN, 4WD

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2933

COLLAR-LOCK

$58.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2943

COUPLER-DRIVE

$50.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2914

PINION

Note: (inc. 22-23)

$271.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1767

COLLAR-RETAINING

$71.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2889

BEARING-BALL, RADIAL

$37.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2938

HOUSING-GEARCASE, FRONT

$515.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2888

BEARING-NEEDLE

$65.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2893

PIN-DOWEL

$6.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2884

PLUG-DRAIN

Note: (inc. one No. 28)

$27.99

$

Usually ships in 3-6 days

0

28

Exmark 132-1902

O-RING

$15.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2885

O-RING

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2911

BEARING-BALL

$87.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2894

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2895

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2896

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2897

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2898

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2899

SHIM

$8.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2900

SHIM

$10.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2901

SHIM

$8.99

$

Usually ships in 3-6 days

0

32

Exmark 132-2915

GEAR-36 T, 4.0

$1178.99

$

Usually ships in 3-6 days

0

33

Exmark 132-2939

COVER-GEARCASE

$96.99

$

Usually ships in 3-6 days

0

34

Exmark 132-2721

FITTING-BARB, STRAIGHT

$50.99

$

Usually ships in 3-6 days

0

35

Exmark 132-2887

PLUG-OIL LEVEL

Note: (inc. one No. 28)

$14.99

$

Usually ships in 3-6 days

0

36

Exmark 132-2718

SEAL-GEARCASE

$41.99

$

Usually ships in 3-6 days

0

37

Exmark 132-2886

PLUG-FILL

Note: (inc. 38)

$41.99

$

Usually ships in 3-6 days

0

38

Exmark 132-1903

O-RING

$5.99

$

Usually ships in 3-6 days

0
