UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Front Brake Assembly Parts Diagram

500S Utility Vehicle

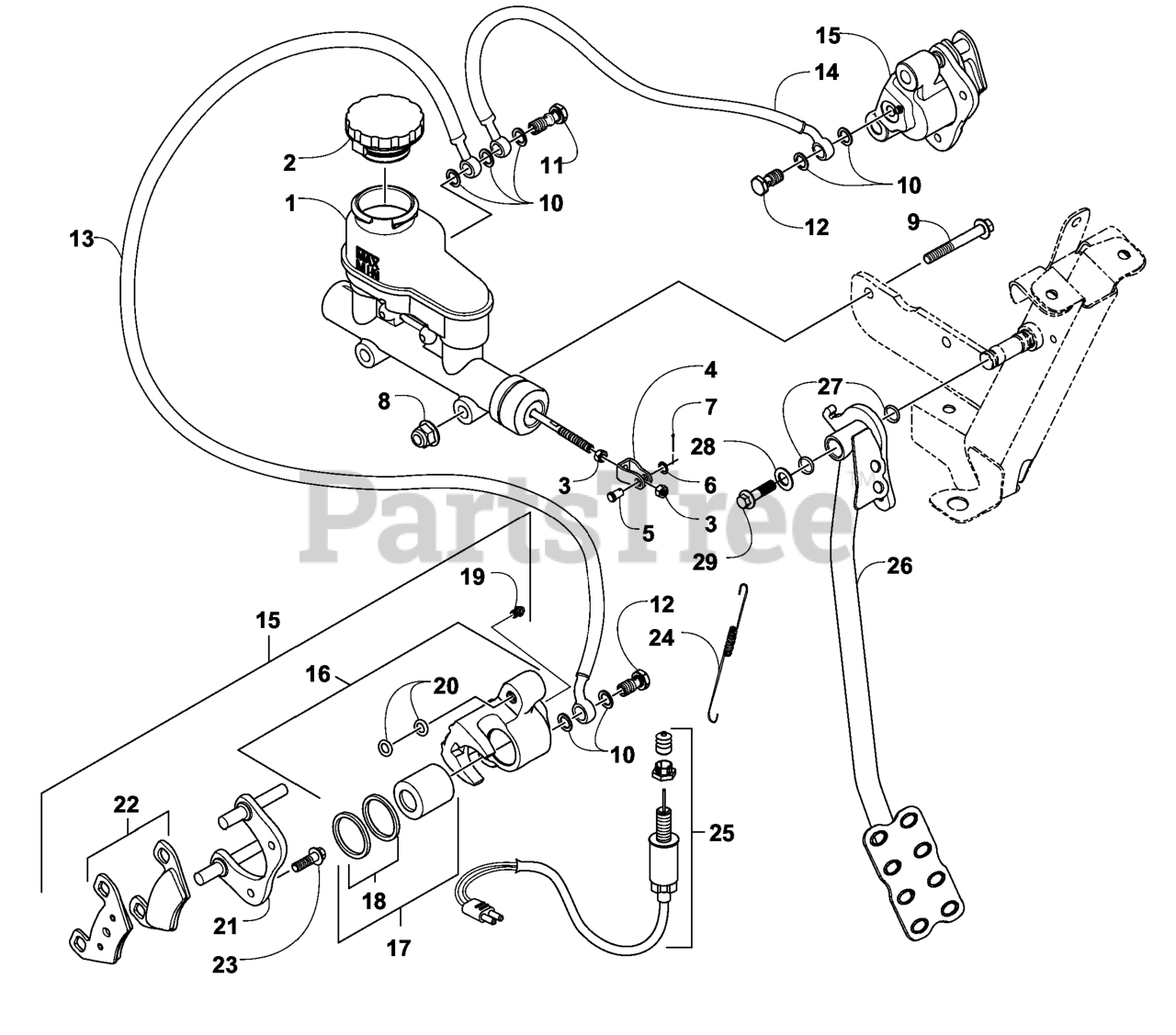

Front Brake Assembly Parts Diagram

  • Title

1

Exmark 132-2765

CYLINDER

Note: (inc. 2-4)

$438.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2766

KIT-SERVICE CAP, TANDEM M

$72.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1783

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 132-2591

CLEVIS

$65.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2588

PIN-CLEVIS

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 132-3049

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 132-1752

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 132-3085

NUT-HHF, LOCK, (NI)

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 132-3064

SCREW-HFH

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 132-1904

WASHER-CRUSH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1946

BOLT-BANJO FITTING, DOUBL

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1920

BOLT-BANJO FITTING

$6.49

$

Usually ships in 3-6 days

0

13

Exmark 132-2589

HOSE-BRAKE, FRONT

$234.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2586

HOSE-BRAKE, FRONT RH

$184.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2684

KIT-CALIPER, FULL ASM (RH

Note: (inc. 16-22) Front Right

$540.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2654

KIT-HOUSING (PISTONS, SEA

Note: (inc. 17-19) Front Right

$499.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2685

KIT-CALIPER, FULL ASM (LH

Note: (inc. 16-22) Front Left

$540.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2655

KIT-HOUSING (PISTONS, SEA

Note: (inc. 17-19) Front Left

$499.99

$

Usually ships in 3-6 days

0

17

Exmark 1-322034

1-302228
(Superseded to 1-302228)

Note: (inc. 18)

$

$

Not available

18

Exmark 132-2035

SEAL SET

$41.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2037

BLEEDER-CALIPER

$47.99

$

Usually ships in 3-6 days

0

20

Exmark 1-322036

1-302229
(Superseded to 1-302229)

$

$

Not available

21

Exmark 1-322040

ARM - IDLER

$34.99

$

In Stock, only 2 left!

0

22

Exmark 132-2662

KIT-BRAKE PAD (SET)

$84.99

$

Usually ships in 3-6 days

0

23

Exmark 132-3060

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 132-2039

SPRING-BRAKE SWITCH

$8.99

$

Usually ships in 3-6 days

0

25

Exmark 132-1830

SWITCH-BRAKE, FOOT

$107.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2683

PEDAL-BRAKE

$81.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2703

O-RING

$1.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2095

WASHER-FLAT, HARDENED

$1.49

$

Usually ships in 3-6 days

0

29

Exmark 132-3059

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0
