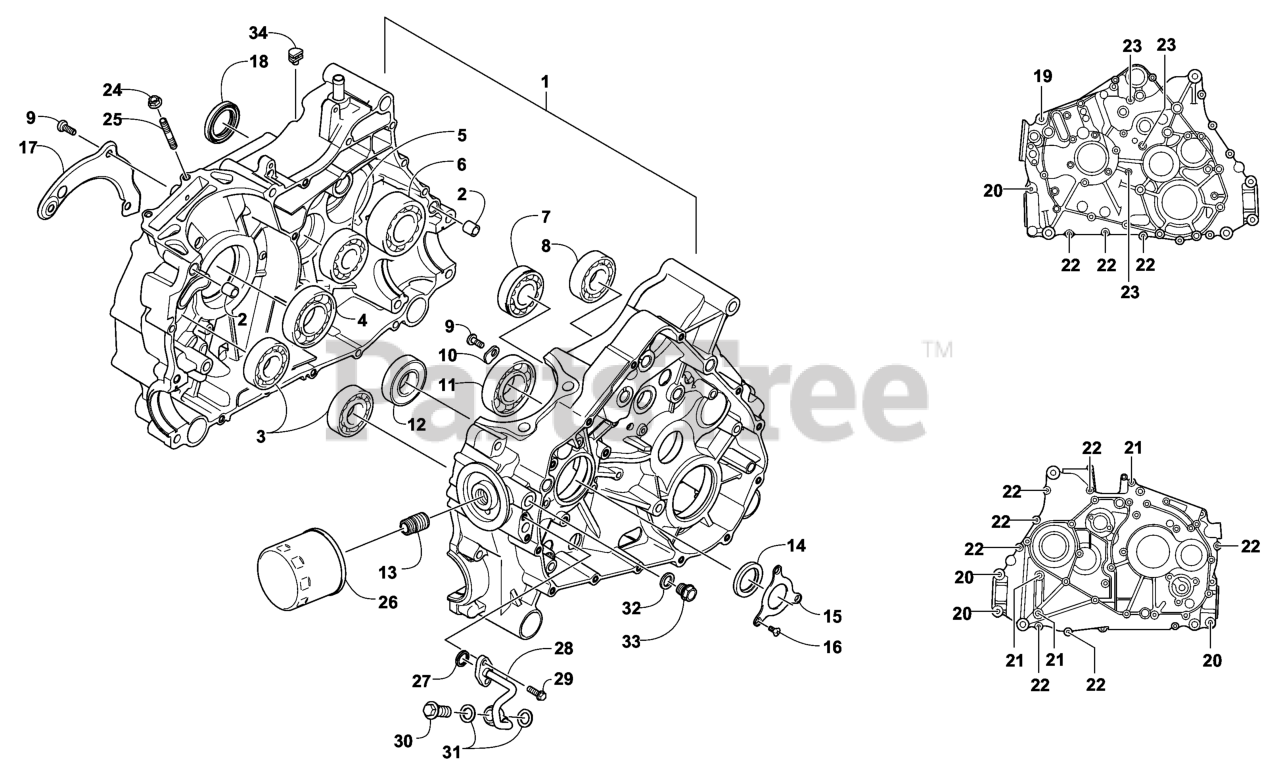

UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Crankcase Assembly Parts Diagram

500S Utility Vehicle

Crankcase Assembly Parts Diagram

  • Title

1

Exmark 1-322127

1-322171
(Superseded to 1-322171)

Note: (inc. 2-21)

$74.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2461

PIN-DOWEL

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 132-2932

BEARING-BALL, RADIAL

$87.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2561

BEARING-BALL, RADIAL

$93.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2839

BEARING-BALL, RADIAL

$37.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2557

BEARING-BALL

$181.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2838

BEARING-BALL, RADIAL

$27.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2843

BEARING-BALL, RADIAL

$27.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2384

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2299

RETAINER-BEARING

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 132-2540

BEARING

$147.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2541

BEARING-CONRAD

$204.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2228

UNION-OIL FILTER

$23.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2481

SEAL-OIL, CRANKSHAFT

$55.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2142

RETAINER-CROSS, OIL SEAL

$23.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2385

SCREW-PFH

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2118

PLATE-OIL GUIDE, RIGHT

$14.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2482

SEAL-DRIVESHAFT

$41.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2811

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2380

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2371

SCREW-HFH

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2816

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 132-2372

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2842

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 132-2928

BOLT-STUD

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 132-3207

Filter, Oil

$

$

Currently unavailable

27

Exmark 132-2501

O-RING

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2234

PIPE-COMP, OIL

$58.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2820

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 132-2232

BOLT

$6.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2233

SEALING-ASHER B OIL PIPE

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 132-2492

WASHER-COMPRESSION

$23.99

$

Usually ships in 3-6 days

0

33

Exmark 132-2563

PLUG-CASE

$9.99

$

Usually ships in 3-6 days

0

34

Exmark 132-2931

GROMMET

$5.49

$

Usually ships in 3-6 days

0
