UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Cooling Assembly Parts Diagram

500S Utility Vehicle

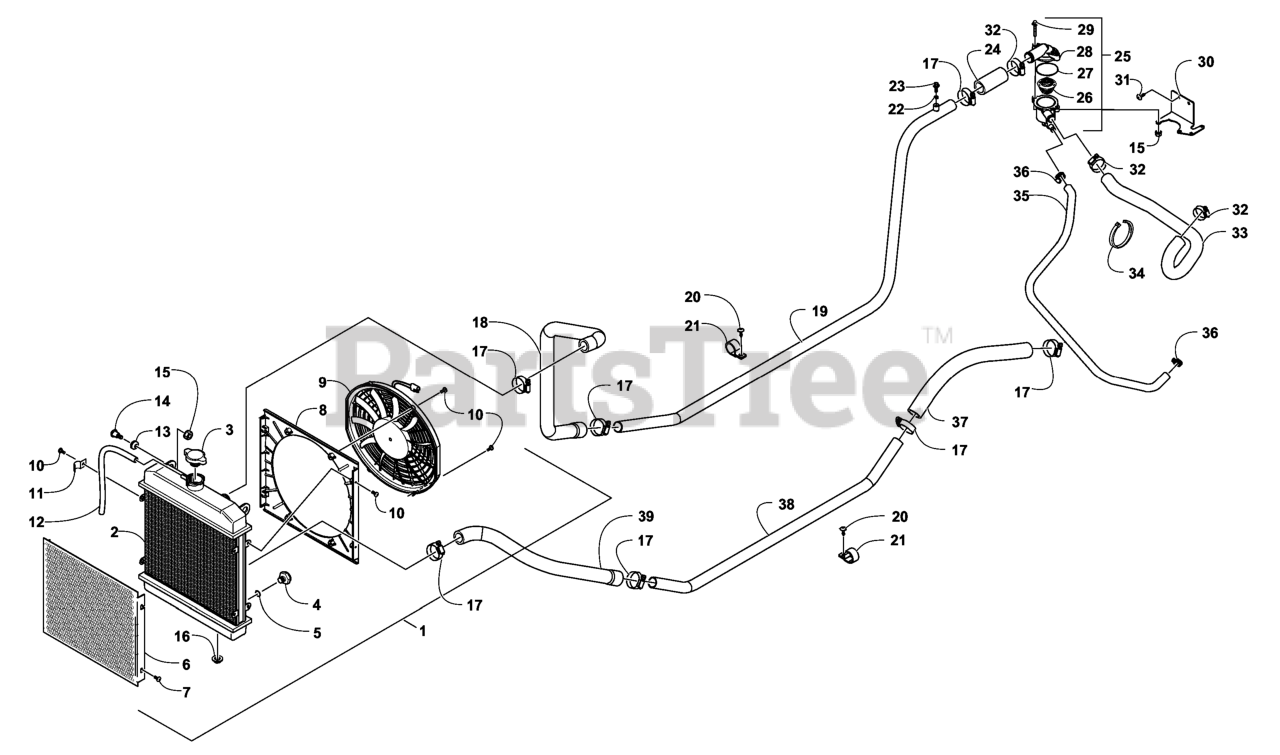

Cooling Assembly Parts Diagram

  • Title

1

Exmark 132-1877

RADIATOR ASM

Note: (inc. 2-13)

$929.99

$

Usually ships in 3-6 days

0

2

Exmark 132-1873

RADIATOR

$619.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1876

CAP-RADIATOR

$92.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1871

PLUG-DRAIN, RADIATOR

$36.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2703

O-RING

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 132-1867

SCREEN-RADIATOR

$117.99

$

Usually ships in 3-6 days

0

7

Exmark 132-3104

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 132-1872

SHROUD-FAN

$210.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1870

FAN-RADIATOR

$416.99

$

Usually ships in 3-6 days

0

10

Exmark 1-322102

103-0229
(Superseded to 103-0229)

$770.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1908

CLIP-HOSE

$6.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2090

HOSE-GAS

$157.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2089

HOSE-GAS

$411.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1893

GROMMET

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 132-1927

BOLT-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 132-2094

NUT-HH, SEMS

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 132-1892

BUSHING-STEM

$7.49

$

Usually ships in 3-6 days

0

17

Exmark 132-1930

CLAMP-WORM, HOSE

$14.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1845

HOSE-RADIATOR, UPPER COOL

$64.99

$

Usually ships in 3-6 days

0

19

Exmark 1-322075

103-0232
(Superseded to 103-0232)

$

$

Not available

20

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

In Stock, Qty 6

0

21

Exmark 132-1943

CLAMP-PIPE

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 132-1964

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 132-3201

Screw, Bleed

$

$

Currently unavailable

24

Exmark 132-1849

HOSE-COOLANT

$7.49

$

Usually ships in 3-6 days

0

25

Exmark 132-2912

HOUSING-THERMOSTAT

Note: (inc. 26-29)

$125.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2240

THERMOSTAT ASM

$167.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2511

O-RING

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2175

COVER-THERMOSTAT

$36.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2814

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 132-1882

BRACKET-MOUNT,THERMOSTAT/

$16.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2100

SCREW-HWH, SELFTAP

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 132-1928

CLAMP

$6.49

$

Usually ships in 3-6 days

0

33

Exmark 132-1847

HOSE-COOLANT, THERMOSTAT

$41.99

$

Usually ships in 3-6 days

0

34

Exmark 132-2106

CABLE TIE

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 132-1848

HOSE-COOLANT

$37.99

$

Usually ships in 3-6 days

0

36

Exmark 132-1949

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

37

Exmark 132-1846

HOSE-COOLANT, LOWER ENGIN

$33.99

$

Usually ships in 3-6 days

0

38

Exmark 132-1843

PIPE-COOLANT, LOWER

$47.99

$

Usually ships in 3-6 days

0

39

Exmark 132-1844

HOSE-RADIATOR, LOWER COOL

$41.99

$

Usually ships in 3-6 days

0
