UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Clutch/Drive Belt/Magneto Cover Assembly Parts Diagram

500S Utility Vehicle

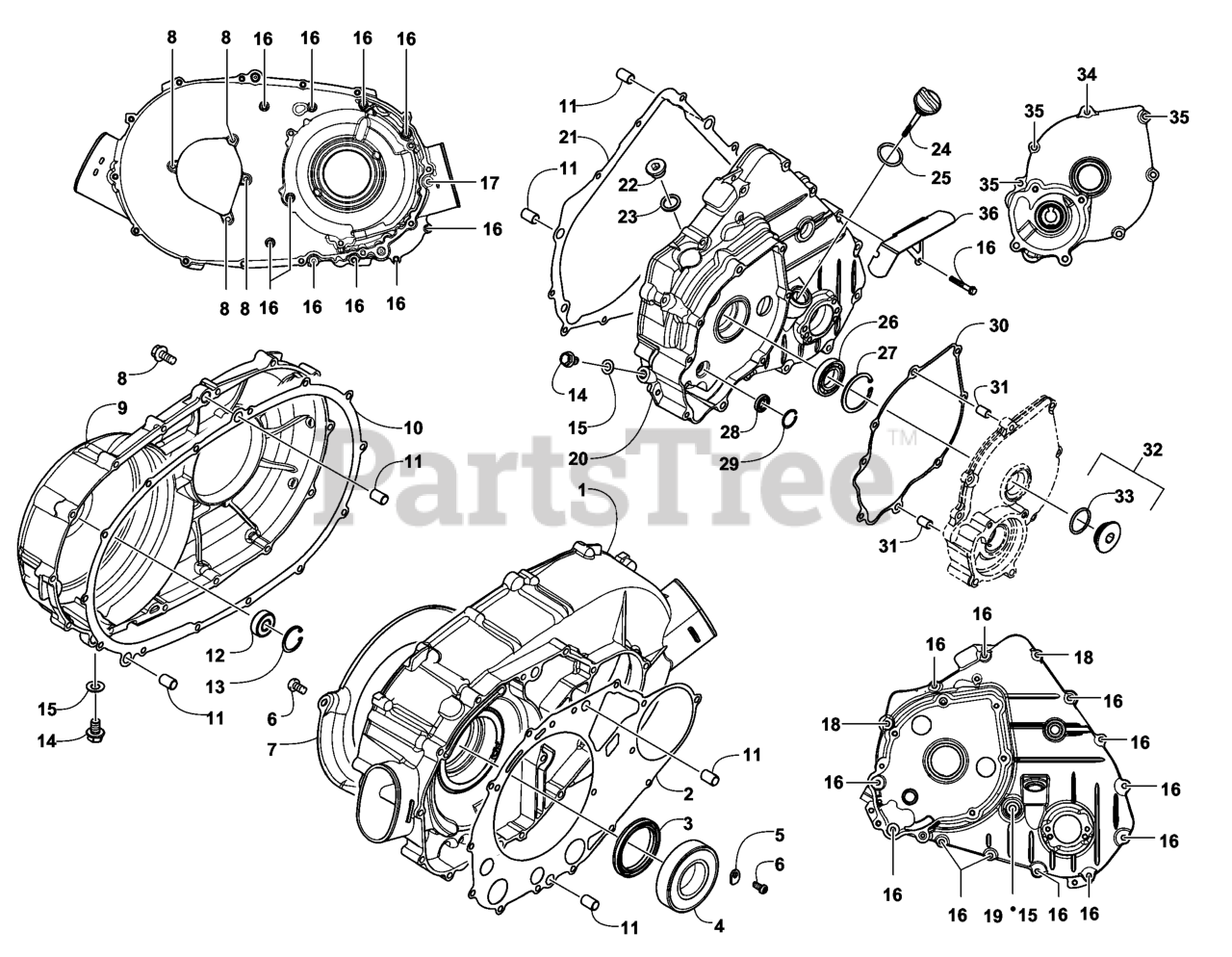

Clutch/Drive Belt/Magneto Cover Assembly Parts Diagram

  • Title

1

Exmark 1-322151

116-6131
(Superseded to 116-6131)

$948.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2478

GASKET

$41.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2498

SEAL-CLUTCH HOUSING, RH

$151.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2556

BEARING-BALL

$155.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2299

RETAINER-BEARING

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 132-2384

SCREW-PPH

$2.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2155

PLATE-AIR INTAKE

$47.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2815

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 1-322152

103-1606
(Superseded to 103-1606)

$54.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2479

GASKET-COVER, V-BELT

$166.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2459

PIN-DOWEL

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2542

BEARING-CONRAD

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2808

CLIP-CIR

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 132-2810

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 132-2818

WASHER

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 132-2844

BOLT-FLANGE

$3.49

$

In Stock, only 1 left!

0

17

Exmark 132-2373

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2837

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2374

BOLT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 1-322157

116-6331
(Superseded to 116-6331)

$54.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2480

GASKET-MAGNETO COVER

$73.99

$

Usually ships in 3-6 days

0

22

Exmark 1-322154

103-1236
(Superseded to 103-1236)

$207.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2491

WASHER-CRUSH

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 1-322153

CASTER/MOUNT ASM

Note: (inc. 25)

$

$

Not available

25

Exmark 132-2830

O-RING

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 132-2553

BEARING-CONRAD

$81.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2851

CLIP-CIR

$7.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2852

BEARING-BALL, RADIAL

$27.99

$

Usually ships in 3-6 days

0

29

Exmark 132-2850

CLIP-CIR

$5.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2512

GASKET-COVER, STARTING

$31.99

$

Usually ships in 3-6 days

0

31

Exmark 132-2801

PIN-DOWEL

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 1-322235

ARM-ASSIST, 32/36

Note: (inc. 33)

$54.99

$

Usually ships in 3-6 days

0

33

Exmark 132-2565

O-RING

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 132-2383

BOLT

$1.49

$

Usually ships in 3-6 days

0

35

Exmark 132-2813

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

36

Exmark 132-2722

SHIELD-SHIFT SENSOR

$19.99

$

Usually ships in 3-6 days

0
