UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Battery And Starter Motor Assembly Parts Diagram

500S Utility Vehicle

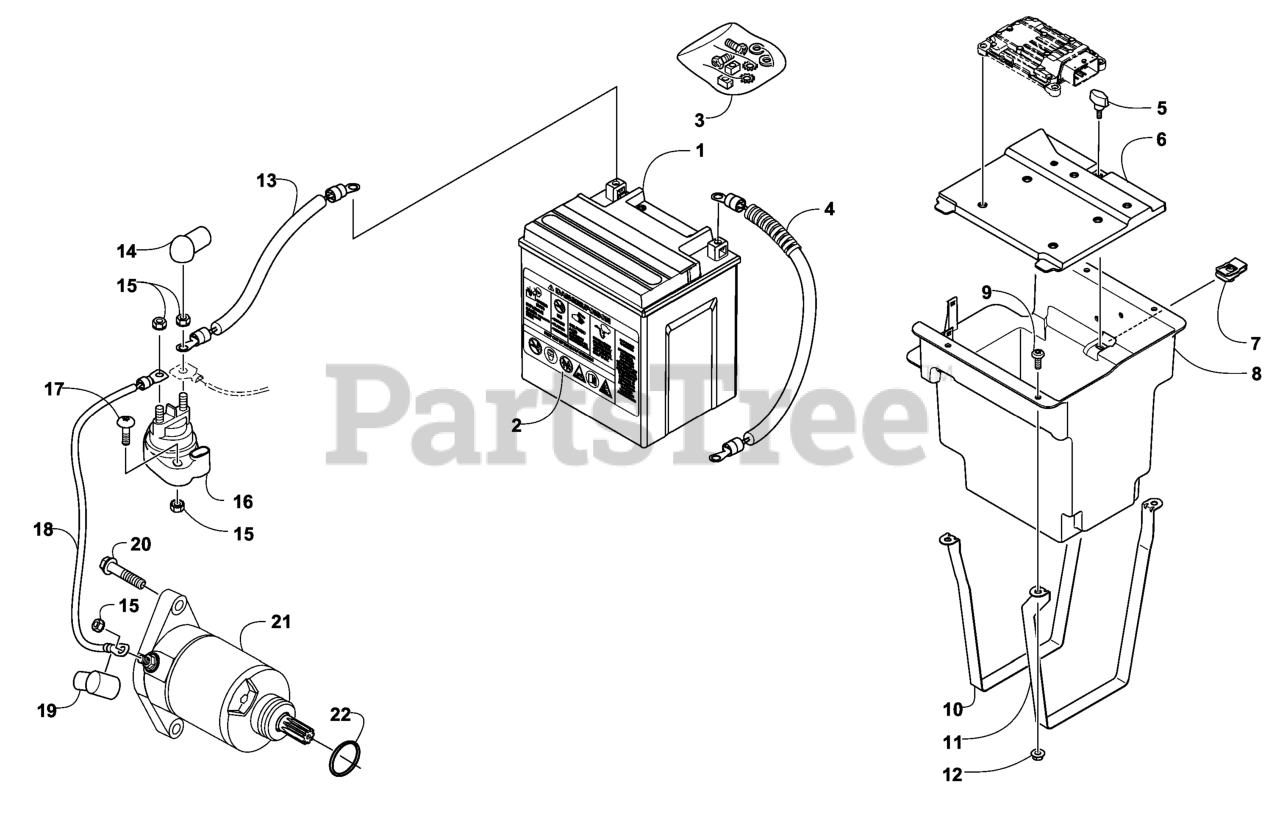

Battery And Starter Motor Assembly Parts Diagram

  • Title

1

Exmark 132-1996

BATTERY-AGM-30AH WET

Note: (inc. 2-3)

$329.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2114

LABEL-POISON/DANGER

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1995

HARDWARE-BATTERY PACK

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1992

CABLE-BATTERY

$58.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2668

KNOB-PLASTIC

$10.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2957

COVER-BATTERY

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 132-1942

CLIP-U NUT

$2.49

$

Usually ships in 3-6 days

0

8

Exmark 132-2728

BOX-BATTERY

$73.99

$

Usually ships in 3-6 days

0

9

Exmark 132-3105

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 1-322012

GUIDE - BELT, 32

$

$

Not available

11

Exmark 132-2013

STRAP-BATTERY BOX, LH

$73.99

$

Usually ships in 3-6 days

0

12

Exmark 132-3079

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 132-1991

CABLE-BATTERY, SOLENOID

$38.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2113

BOOT-TERMINAL, SOLENOID

$21.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2094

NUT-HH, SEMS

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 132-1993

SOLENOID-STARTER RELAY

$49.99

$

Usually ships in 3-6 days

0

17

Exmark 132-3107

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 132-1994

CABLE-SOLENOID, STARTER

$78.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2112

BOOT-TERMINAL, BATTERY

$7.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2854

BOLT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2856

MOTOR-STARTER

Note: (inc. 22)

$451.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2831

O-RING

$2.99

$

Usually ships in 3-6 days

0
