UT-9C5000 D - Homelite 5,000 Watt Generator Figure F (Cylinder Head Assembly) Parts Diagram

5,000 Watt Generator

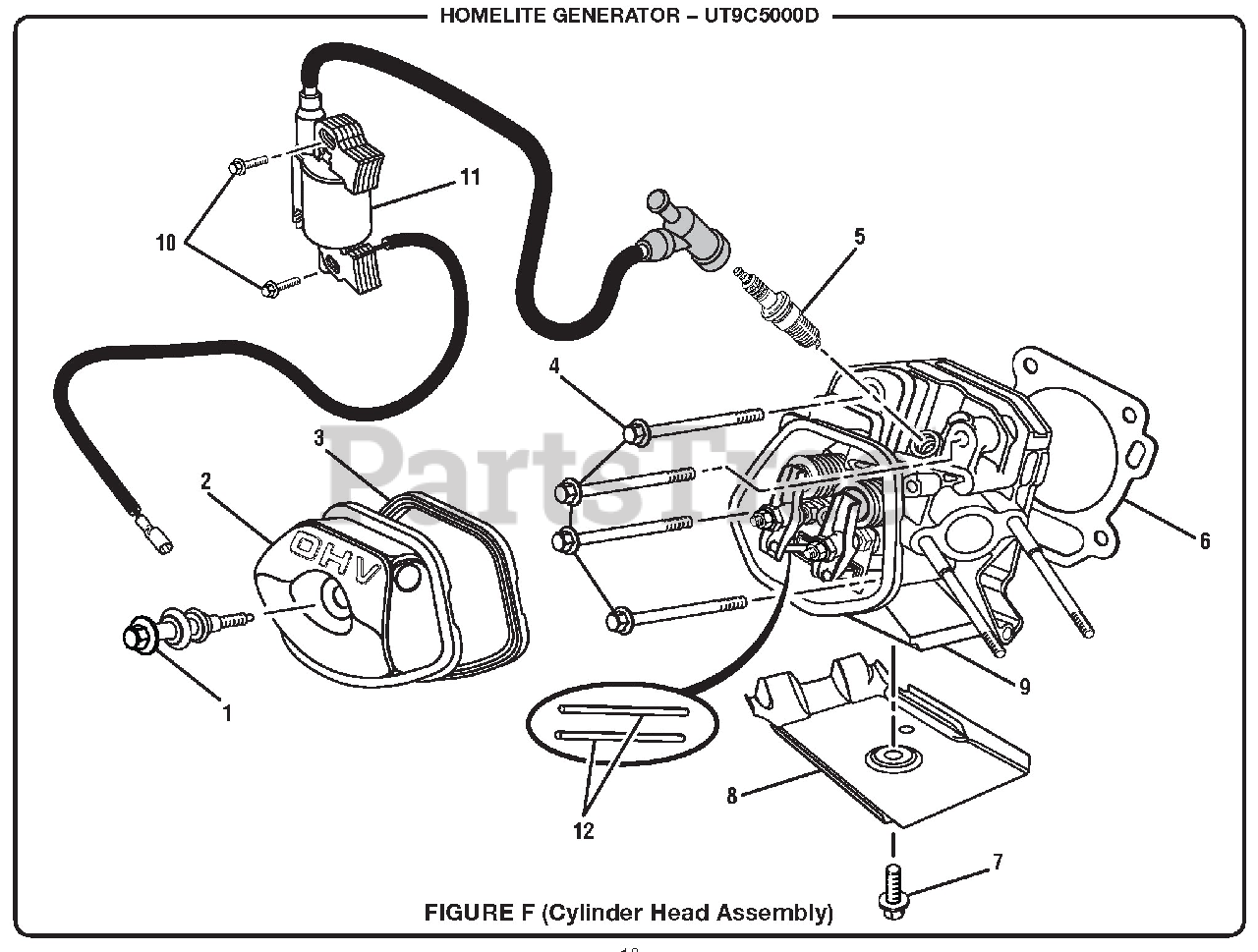

Figure F (Cylinder Head Assembly) Parts Diagram

  • Title
1

Homelite 099958001706

Bolt Assembly (Valve Cover)

$

$

Not available

2

Homelite 099958001015

Valve Cover

$

$

Not available

3

Homelite 099958001016

Valve Cover Gasket

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 099958001018

Bolt (M10 x 80 mm, Cylinder Head)

$

$

Not available

5

Homelite 099958001014

Spark Plug (Champion F7TC)
(Superseded to DJ168F-18500-A)

$8.49

$

In Stock, only 1 left!

0

6

Homelite 099947001059

Cylinder Head Gasket

$

$

Not available

7

Homelite 099958001020

Bolt (M6 x 12 mm, Flange Hd)

$

$

Not available

8

Homelite 099958001019

Lower Cover (Cylinder Head)

$

$

Not available

9

Homelite 099947001060

Cylinder Head Assembly

Note: (Incl Key Nos 1-8)

$183.99

$

Usually ships in 3-7 days

0

10

Homelite 099958001037

Bolt (M6 x 30)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 099958001712

Ignition Coil Assembly

$32.99

$

Usually ships in 3-7 days

0

12

$2.49

$

Usually ships in 3-7 days

0
