UT-9C5000 D - Homelite 5,000 Watt Generator Figure A (Generator Head Assembly) Parts Diagram

5,000 Watt Generator

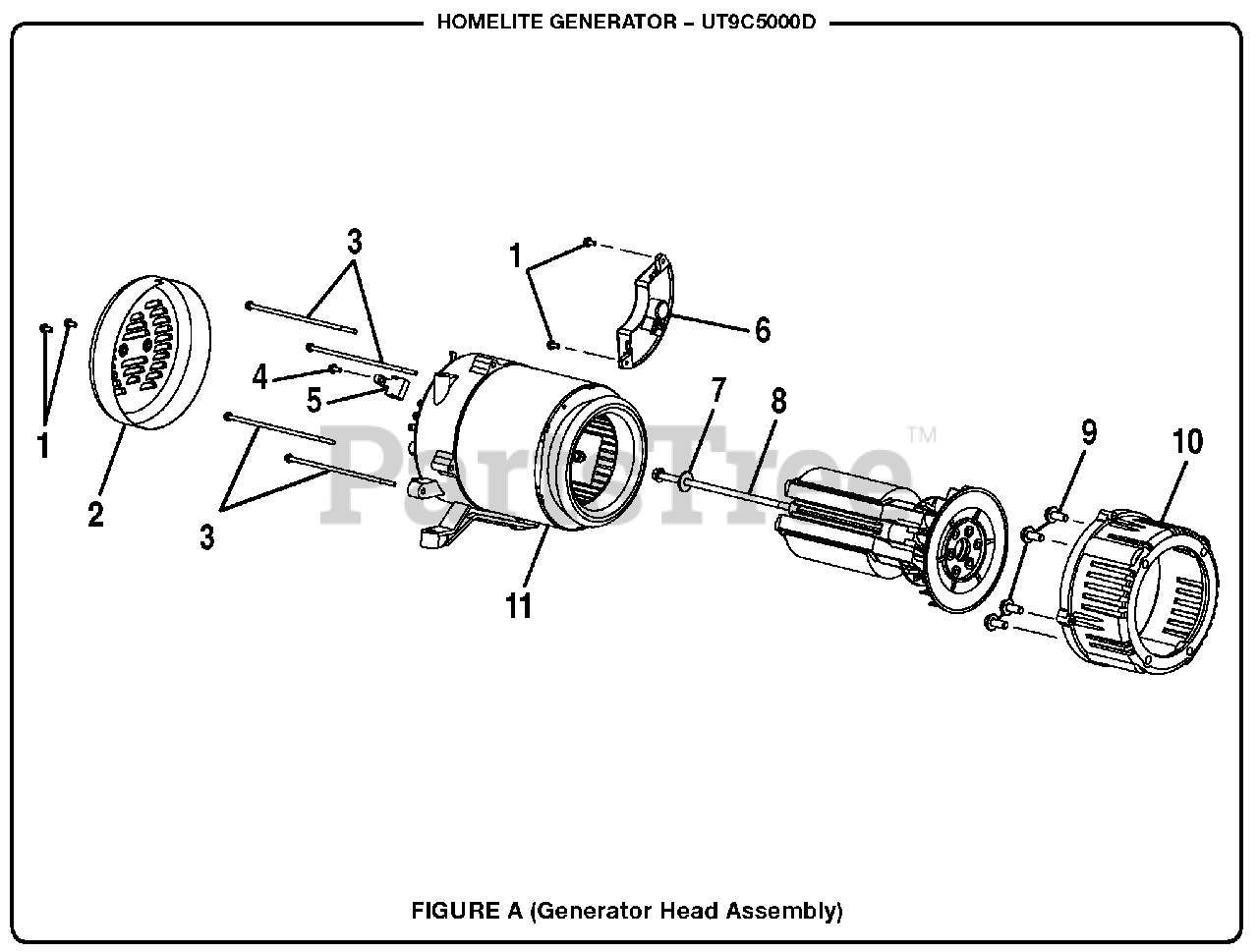

Figure A (Generator Head Assembly) Parts Diagram

  • Title

Homelite 310227019

Generator Head Assembly

Note: (Incl Key Nos 1-10)

$754.99

$

Usually ships in 3-7 days

0

1

Homelite 661603005

Bolt (M5 x 14 mm)

$

$

Not available

2

Homelite 678296003

Brush Cover
(Superseded to 678296004)

$

$

Not available

3

Homelite 660972010

Bolt (M6 x 175 mm)

$

$

Not available

4

Homelite 660938005

Bolt (M5 x 18 mm, Brush Assembly)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 290441003

Brush Assembly

$

$

Not available

6

Homelite 290440004

Automatic Voltage Regulator

$51.99

$

Usually ships in 3-7 days

0

7

Homelite 678389002

Washer (M5)

$

$

Not available

8

Homelite 660971003

Bolt (M10 x 270 mm)

$

$

Not available

9

Homelite 660596002

Bolt (3/8-18 x 1-1/4 in)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 640331003

Engine Adapter

$

$

Not available

11

Homelite 638545002

Stator Cover

$

$

Not available
