UT-906800 S - Homelite 6,800 Watt Generator General Assembly Parts Diagram

6,800 Watt Generator

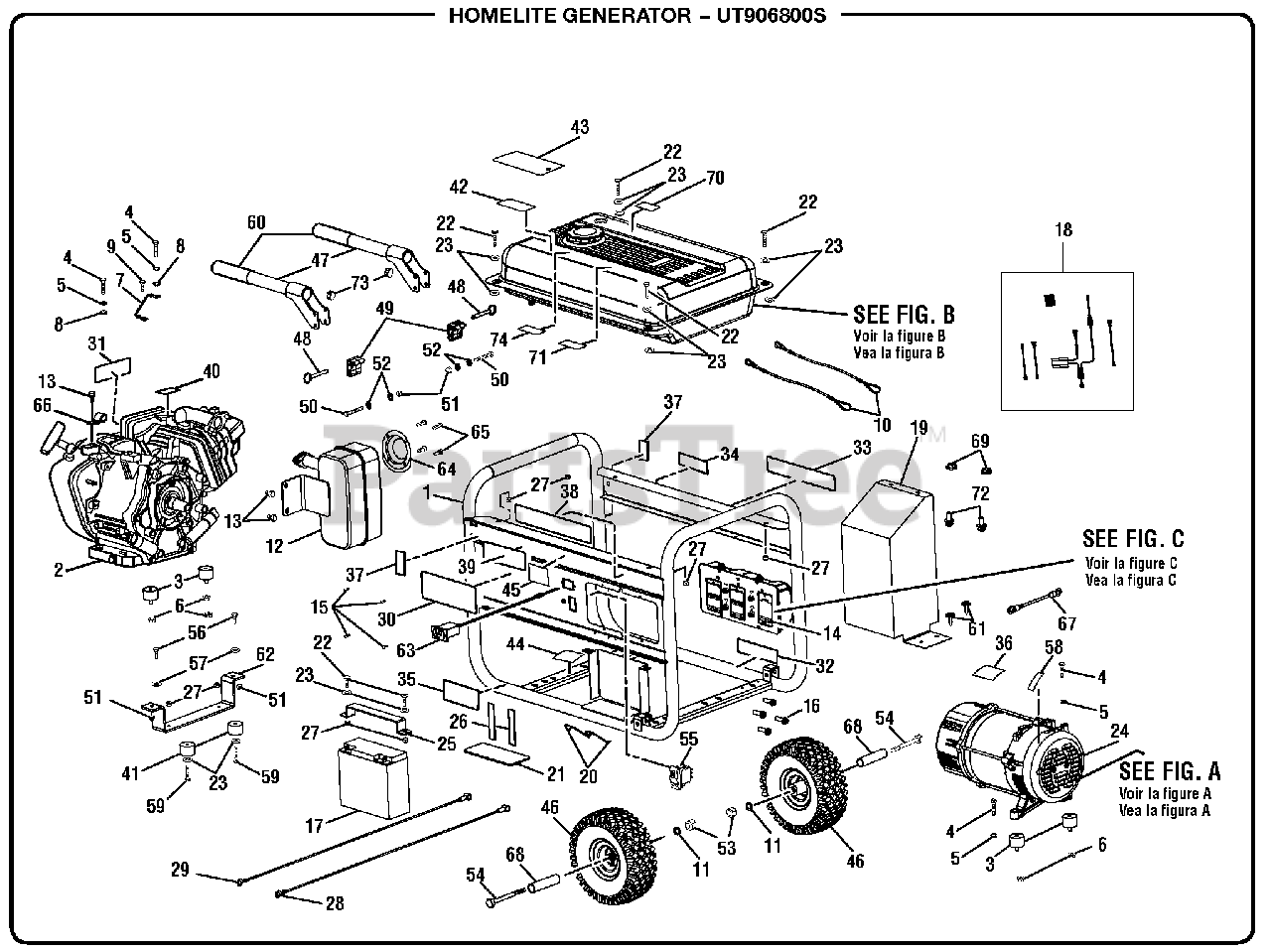

General Assembly Parts Diagram

  • Title

1

Homelite 310222028

Carrier Assembly

$

$

Not available

2

Engine (Yamaha MZ360)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in., Hex Hd.)

$2.49

$

In Stock, only 3 left!

0

5

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290404001

Ground Wire Assembly

$

$

Not available

8

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

11

Homelite 638386003

Washer (3/8 in)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 309322002

Muffler

$

$

Not available

13

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 310714036

Control Panel Assembly

$

$

Not available

15

Homelite 660598001

Screw (6-20 x 3/8 in.)

$2.99

$

In Stock, only 2 left!

0

16

Homelite 660596002

Bolt (3/8-16 x1.25 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 750400001

Battery
(Superseded to 750400009)

$186.99

$

Usually ships in 3-7 days

0

18

Homelite 290435008

Wire Harness

$

$

Not available

19

Homelite 638497009

Heat Shield

$

$

Not available

20

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 570631002

Battery Box Gasket

$

$

Not available

22

Homelite 661503005

Bolt (1/4-20 x 1 in., Hex Hd.)

$2.49

$

In Stock, only 2 left!

0

23

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

24

Homelite 310227001

Generator Head w/AVR

$

$

Not available

25

Homelite 308681002

Battery Hold Down Bracket

$

$

Not available

26

Homelite 570631002

Gasket (Battery Hold Down Bracket)

$

$

Not available

27

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 290418001

Battery Cable (Red)

$

$

Not available

29

Homelite 290419001

Battery Cable (Black)

$

$

Not available

30

Homelite 940705174

Logo Label

$

$

Not available

31

Homelite 940617106

Electric Start Label

$

$

Not available

32

Homelite 940680015

Hot Surface Label

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 940707013

Danger Label

$

$

Not available

34

Homelite 940974007

Fire Danger Label

$

$

Not available

35

Homelite 940708019

Engine Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 940678267

Data Plate Label

$

$

Not available

37

Homelite 940514001

Locking Pin Label

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 940608009

Yamaha Label

$

$

Not available

39

Homelite 940617079

Electric Start Label

$

$

Not available

40

Homelite 940647035

Choke Label

$

$

Not available

41

Homelite 570355001

Rubber Feet

$

$

Not available

42

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

43

Homelite 940971058

Danger Hang Tag

$

$

Not available

44

Homelite 941731001

Inquires Label

$

$

Not available

45

Homelite 940947003

Combustion Warning Label

$

$

Not available

46

Homelite 308451043

Wheel

$

$

Not available

47

Homelite 310224002

Handle Assembly

$

$

Not available

48

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

49

519728001

Handle Bracket Spacer

$

$

Not available

50

Homelite 660591004

Bolt (5/16-18 x 1-1/2 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 678259003

Lock Nut (5/16)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 638675003

Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 678659001

Lock Nut (3/18-16 )

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 661558002

Axle

$5.49

$

Usually ships in 3-7 days

0

55

Homelite 270290007

Start Switch w/Lock

$61.99

$

In Stock, only 1 left!

0

56

Homelite 660599001

Bolt (5/16-18 x 1 in., Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

57

Homelite 638675004

Flat Washer (5/16 in.)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940513001

Ground Label Icon

$10.99

$

Usually ships in 3-7 days

0

59

Homelite 661503003

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

60

Homelite 570357001

Handle Grip
(Superseded to 310224002)

$

$

Not available

61

Homelite 661306004

Screw (8 x .75 in.)

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 638706001

Front Foot

$17.99

$

Usually ships in 3-7 days

0

63

Homelite 290492001

Voltage Meter

$39.99

$

In Stock, only 2 left!

0

64

Homelite 638147003

Spark Arrestor

$

$

Not available

65

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

66

Homelite 519729001

J-Clamp (1/2 in.)

$

$

Not available

67

Homelite 290455001

Bonding Wire

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 638498001

Spacer

$5.49

$

Usually ships in 3-7 days

0

69

Homelite 678610005

Flange Nut (M6)

$

$

Not available

70

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

71

Homelite 941486007

Mexico Support Label

$

$

Not available

72

Homelite 661314003

Bolt (M6 x 12 mm)

$

$

Not available

73

Homelite 519712001

End Cap

$

$

Not available

74

Homelite 940974089

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

Homelite 988000967

Operator's Manual

Note: Not Shown

$

$

Not available
