UT-905011 - Homelite 5,000 Watt Generator General Assembly Parts Diagram

5,000 Watt Generator

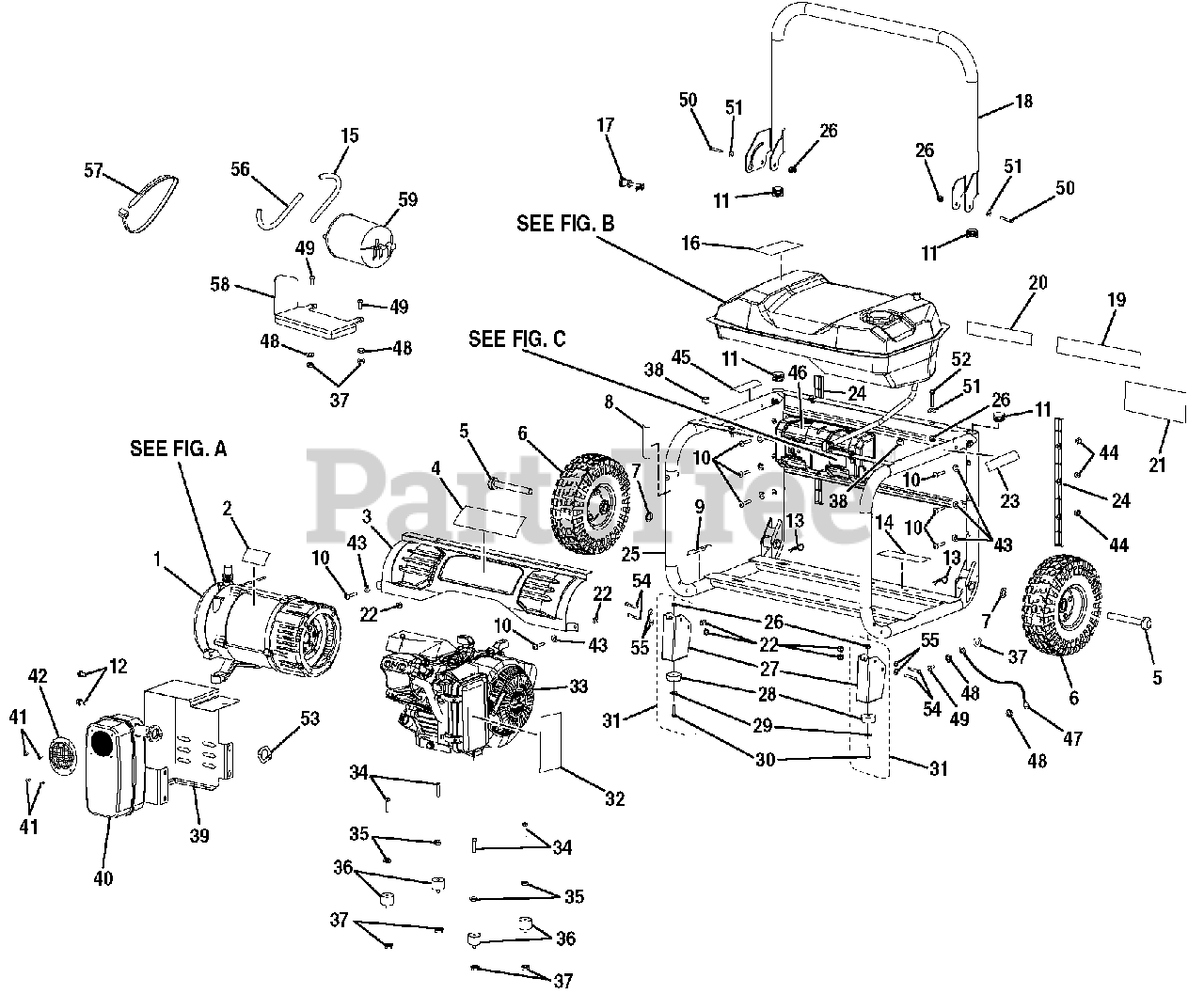

General Assembly Parts Diagram

  • Title

1

Homelite 310227016

Generator Head Assembly (See Figure A)

$533.99

$

In Stock, only 1 left!

0

2

Homelite 940678209

Data Label

$

$

Not available

3

Homelite 308444002

Back Panel Assembly

Note: (Incl. Key No. 4)

$

$

Not available

4

Homelite 940705111

Back Panel Logo Label

$

$

Not available

5

Homelite 620599011

Axle

$

$

Not available

6

Homelite 308451010

Wheel

$

$

Not available

7

Homelite 638581001

Washer (5/8 in.)

$2.49

$

In Stock, only 3 left!

0

8

Homelite 940680021

Hot Surface Label

$

$

Not available

9

Homelite 940654103

Label (UL fire warning)
(Superseded to 940947003)

$

$

Not available

10

Homelite 661400003

Bolt (1/4-20 x 42.5 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 519712001

End Cap

$

$

Not available

12

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 940708007

Lubricant Label

$

$

Not available

15

Homelite 570358030

Purge Hose

$

$

Not available

16

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

17

Homelite 308449002

Handle Release Pin Assembly

$

$

Currently unavailable

18

Homelite 310224015

Handle Assembly

$

$

Not available

19

Homelite 940707089

Danger Label

$

$

Not available

20

Homelite 940513008

Ground Warning Label

$

$

Not available

21

Homelite 940705112

Logo Label

$

$

Currently unavailable

22

Homelite 678074002

Lock Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940974007

Fire Danger Label

$

$

Not available

24

Homelite 519812004

Frame Slide Rails

$

$

Not available

25

Homelite 308471021

Frame Assembly

$

$

Not available

26

Homelite 678774001

Lock Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 638706006

Foot

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 570554001

Wear Pad

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

30

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 310739004

Foot Assembly

Note: (Incl. Key Nos. 26-30)

$

$

Not available

32

Homelite 940617032

Starting Instruction Label

$

$

Not available

33

Engine (Subaru EX30)

$

$

Not available

34

Homelite 660591006

Bolt (5/16-18 x 1.5 in.)

$2.49

$

In Stock, only 3 left!

0

35

Homelite 638678002

Lock Washer (5/16)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 570356001

Isolator (Generator)

$

$

Not available

37

Homelite 678145002

Hex Nut (5/16-18, Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 570371003

Rubber Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 638539002

Back Muffler Cover

$

$

Not available

40

Homelite 309322010

Muffler (Subaru EX30)

$

$

Not available

41

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 638147003

Spark Arrestor

$

$

Not available

43

Homelite 678823001

Lock Washer (M6)

$

$

Not available

44

Homelite 678810002

Hex Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940514007

Pin Release Label

$

$

Not available

46

Homelite 290403012

Control Panel (See Figure C)

$

$

Not available

47

Homelite 290404001

Ground Wire Assembly

$

$

Not available

48

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 660962001

Bolt (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 661503005

Bolt (1/4-20 x 1 in.)

$2.49

$

In Stock, only 2 left!

0

53

Homelite 638499003

Muffler Gasket

$

$

Currently unavailable

54

Homelite 661501008

Bolt (1/4-20 x 2 in., T30 Torx Hd.)
(Superseded to 661555002)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 570466002

Rollover Hose

$

$

Not available

57

Homelite 900333012

Cable Tie (18.6 in.)

$3.49

$

Usually ships in 3-7 days

0

58

Homelite 638708004

Bracket (Carb. Canister)

$

$

Not available

59

Homelite 310723003

Canister

$

$

Not available

60

Homelite 940971058

Danger Hang Tag

$

$

Not available

61

Homelite 940947003

Combustion Label

$

$

Not available

Homelite 988000481

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 940040017

Control Panel Logo Label

Note: Not Shown

$

$

Not available
