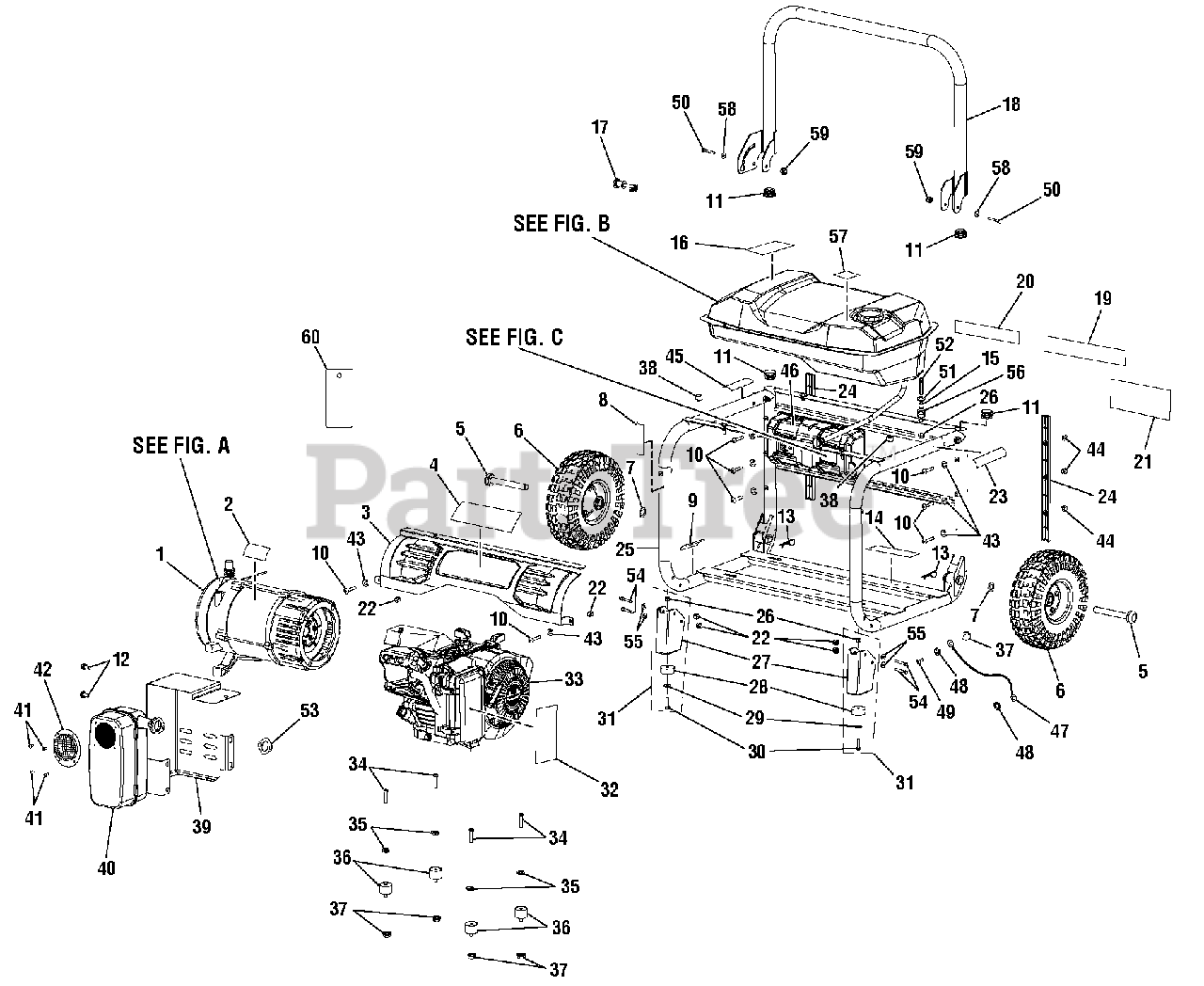

UT-905000 S - Homelite 5,000 Watt Generator General Assembly Parts Diagram

5,000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227016

Generator Head Assembly (See Figure A)

$533.99

$

In Stock, only 1 left!

0

2

Homelite 940678221

Data Label

$

$

Not available

3

Homelite 308444002

Back Panel Assembly

Note: (Incl. Key No. 4)

$

$

Not available

4

Homelite 940705073

Back Panel Logo Label

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 620599011

Axle

$

$

Not available

6

Homelite 308451010

Wheel

$

$

Not available

7

Homelite 638581001

Washer (5/8 in.)

$2.49

$

In Stock, only 3 left!

0

8

Homelite 940680021

Hot Surface Label

$

$

Not available

9

Homelite 940947003

Label (UL fire warning)

$

$

Not available

10

Homelite 661400003

Bolt (1/4-20 x 42.5 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 519712001

End Cap

$

$

Not available

12

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 940708007

Lubricant Label

$

$

Not available

15

Homelite 518528002

Spacer (Fuel Tank Isolator)

$

$

Not available

16

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

17

Homelite 308449001

Handle Release Pin Assembly

$24.99

$

Usually ships in 3-7 days

0

18

Homelite 310224015

Handle Assembly

$

$

Not available

19

Homelite 940707089

Danger Label

$

$

Not available

20

Homelite 940513008

Ground Warning Label

$

$

Not available

21

Homelite 940040017

Logo Label

$

$

Not available

22

Homelite 678074002

Lock Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 940974007

Fire Danger Label

$

$

Not available

24

Homelite 519812004

Frame Slide Rails

$

$

Not available

25

Homelite 308471021

Frame Assembly

$

$

Not available

26

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 638706006

Foot

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 570554001

Wear Pad

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

30

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 310739004

Foot Assembly

Note: (Incl. Key Nos. 26-30)

$

$

Not available

32

Homelite 940617032

Starting Instruction Label

$

$

Not available

33

Engine (Subaru EX30)

Note: NOTE A: Homelite Consumer Products, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

34

Homelite 660591006

Bolt (5/16-18 x 1.5 in.)

$2.49

$

In Stock, only 3 left!

0

35

Homelite 638678002

Lock Washer (5/16)

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 570356001

Isolator (Generator)

$

$

Not available

37

Homelite 678145002

Hex Nut (5/16-18, Flange)

$2.49

$

Usually ships in 3-7 days

0

38

Homelite 570371003

Rubber Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 638539002

Back Muffler Cover

$

$

Not available

40

Homelite 309322010

Muffler (Subaru EX30)

$

$

Not available

41

Homelite 661306001

Screw (8-32 x 3/8 in.)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 638147003

Spark Arrestor

$

$

Not available

43

Homelite 678823001

Lock Washer (M6)

$

$

Not available

44

Homelite 678810002

Hex Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 940514007

Pin Release Label

$

$

Not available

46

Homelite 290403017

Control Panel (See Figure C)

$

$

Not available

47

Homelite 290404001

Ground Wire Assembly

$

$

Not available

48

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 660962001

Bolt (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

51

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

52

Homelite 661503005

Bolt (1/4-20 x 1 in.)

$2.49

$

In Stock, only 2 left!

0

53

Homelite 638499003

Muffler Gasket

$

$

Currently unavailable

54

Homelite 661400004

Bolt (1/4-20 x 2 in., T30 Torx Hd.)
(Superseded to 661555002)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

56

Homelite 519832003

Isolator (Fuel Tank)

$3.49

$

Usually ships in 3-7 days

0

57

Homelite 940872001

E85 Label

$

$

Not available

58

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

59

Homelite 678774001

Hex Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

60

Homelite 940971058

Danger Hang Tag

$

$

Not available

Homelite 988000625

Operator's Manual

Note: Not Shown

$

$

Not available
