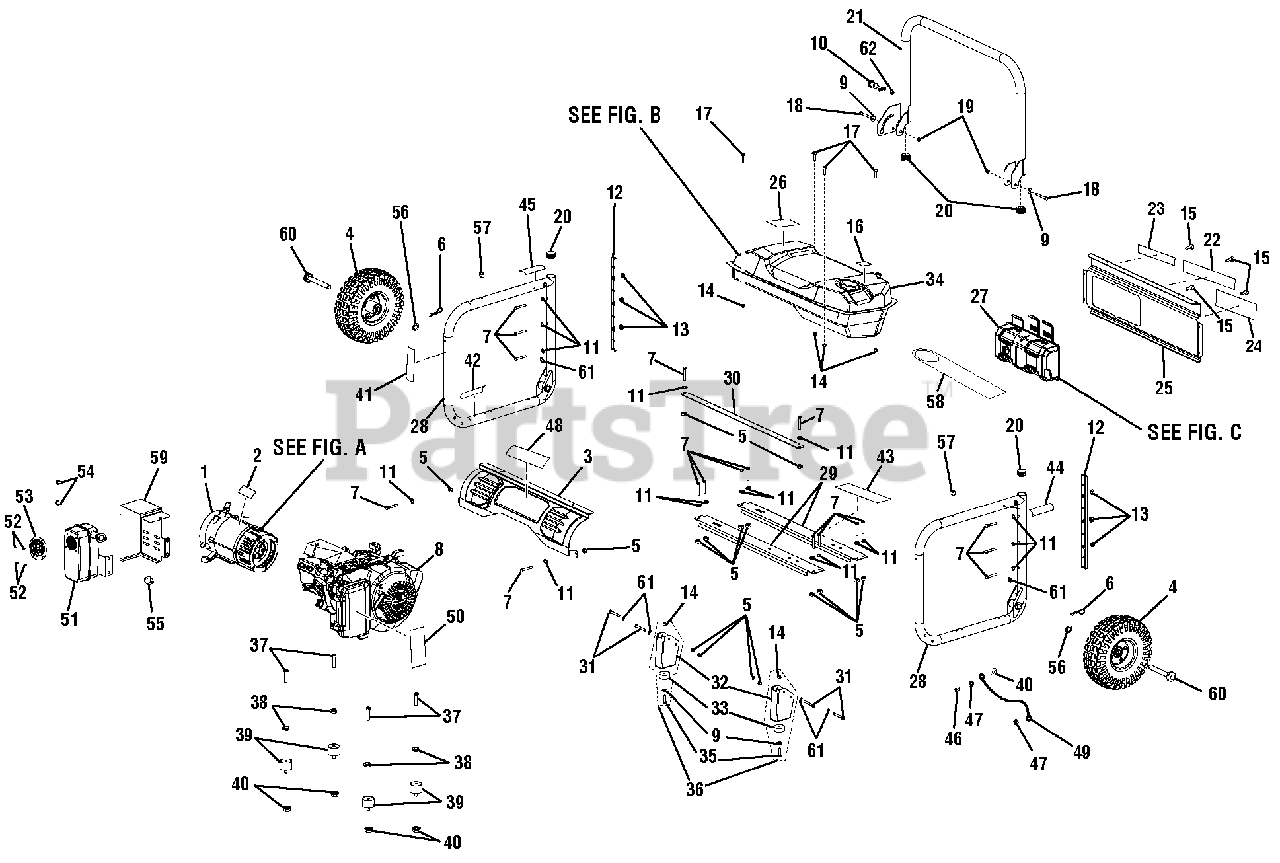

UT-905000 P - Homelite 5,000 Watt Generator General Assembly Parts Diagram

5,000 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227016

Generator Head w/AVR

$533.99

$

In Stock, only 1 left!

0

2

Homelite 940678217

Data Label

$

$

Currently unavailable

3

Homelite 308444002

Back Panel Assembly

Note: (Inc. Key No. 48)

$

$

Not available

4

Homelite 308451010

Wheels

$

$

Not available

5

Homelite 678074002

Lock Nut (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 678238001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 661400003

Bolt (1/4-20 x 42.5 mm, Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

8

Engine (EX30 Subaru)

$

$

Not available

9

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

10

Homelite 308449003

Handle Release Pin Assembly

Note: (Inc. Key No. 62)

$10.99

$

Usually ships in 3-7 days

0

11

Homelite 678823001

Lock Washer (M6)

$

$

Not available

12

Homelite 519812004

Frame Slide Rails

$

$

Not available

13

Homelite 678016007

Hex Nut (1/4-20)

$

$

Not available

14

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

15

Homelite 660598001

Screw (6-20 x 3/8 in., Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

16

Homelite 940872003

E-85 Label

$1.99

$

In Stock, only 2 left!

0

17

Homelite 660901015

Bolt (1/4-14 x 1.25 in., Hex Hd.)

$

$

Not available

18

Homelite 660962001

Bolt (M8 x 55 mm, Hex Hd.)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 678774001

Lock Nut (M8)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 519712001

End Cap

$

$

Not available

21

Homelite 310224015

Handle Assembly

$

$

Not available

22

Homelite 940707089

Danger Label

$

$

Not available

23

Homelite 940513008

Ground Warning Label

$

$

Not available

24

Homelite 940040017

Logo Label

$

$

Not available

25

Homelite 638700015

Control Panel

$

$

Not available

26

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

27

Homelite 290403017

Control Box (Front and Rear Assembly)

$

$

Not available

28

Homelite 308581012

Frame Assembly

$

$

Not available

29

Homelite 638493007

Frame Cross Brace

$

$

Not available

30

Homelite 638236010

Back Frame Bracket

$

$

Not available

31

Homelite 661400004

Bolt (1/4-20 x 2 in., T30 Torx Hd.)
(Superseded to 661555002)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 638706006

Foot

$10.99

$

Usually ships in 3-7 days

0

33

Homelite 570554001

Wear Pad

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 310711051

Fuel Tank Assembly

$

$

Not available

35

Homelite 661503001

Bolt (1/4-20 x 1 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 310739004

Foot Assembly

$

$

Not available

37

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in.)

$2.49

$

In Stock, only 3 left!

0

38

Homelite 638678002

Lock Washer (5/16)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 570356001

Isolator (Generator)

$

$

Not available

40

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite 940680021

Hot Surface Label

$

$

Not available

42

Homelite 940947003

Combustion Label

$

$

Not available

43

Homelite 940708007

Lubricant Label

$

$

Not available

44

Homelite 940974007

Fire Danger Label

$

$

Not available

45

Homelite 940514007

Pin Release Label

$

$

Not available

46

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

48

Homelite 940705111

Back Panel Logo Label

$

$

Not available

49

Homelite 290404001

Ground Wire Assembly

$

$

Not available

50

Homelite 940617032

Starting Instruction Label

$

$

Not available

51

Homelite 309322010

Muffler

$

$

Not available

52

Homelite 661306001

Spark Arrestor Screw

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 638147003

Spark Arrestor

$

$

Not available

54

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$2.99

$

Usually ships in 3-7 days

0

55

Homelite 638499003

Muffler Gasket

$

$

Currently unavailable

56

Homelite 638581001

Washer (5/8 x 1 x 5/8 in.)

$2.49

$

In Stock, only 3 left!

0

57

Homelite 570371003

Rubber Handle Bumper

$2.49

$

Usually ships in 3-7 days

0

58

Homelite 940971058

Danger Hang Tag

$

$

Not available

59

Homelite 638539002

Back Muffler Cover

$

$

Not available

60

Homelite 620599011

Axle

$

$

Not available

61

Homelite 638387005

Washer (1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

62

Homelite 638356001

Washer (OD20 x ID8 x 1t)

$

$

Currently unavailable

Homelite 988000478

Operator's Manual

$

$

Not available
