UT-905000 P - Homelite 5,000 Watt Generator Figure A Parts Diagram

5,000 Watt Generator

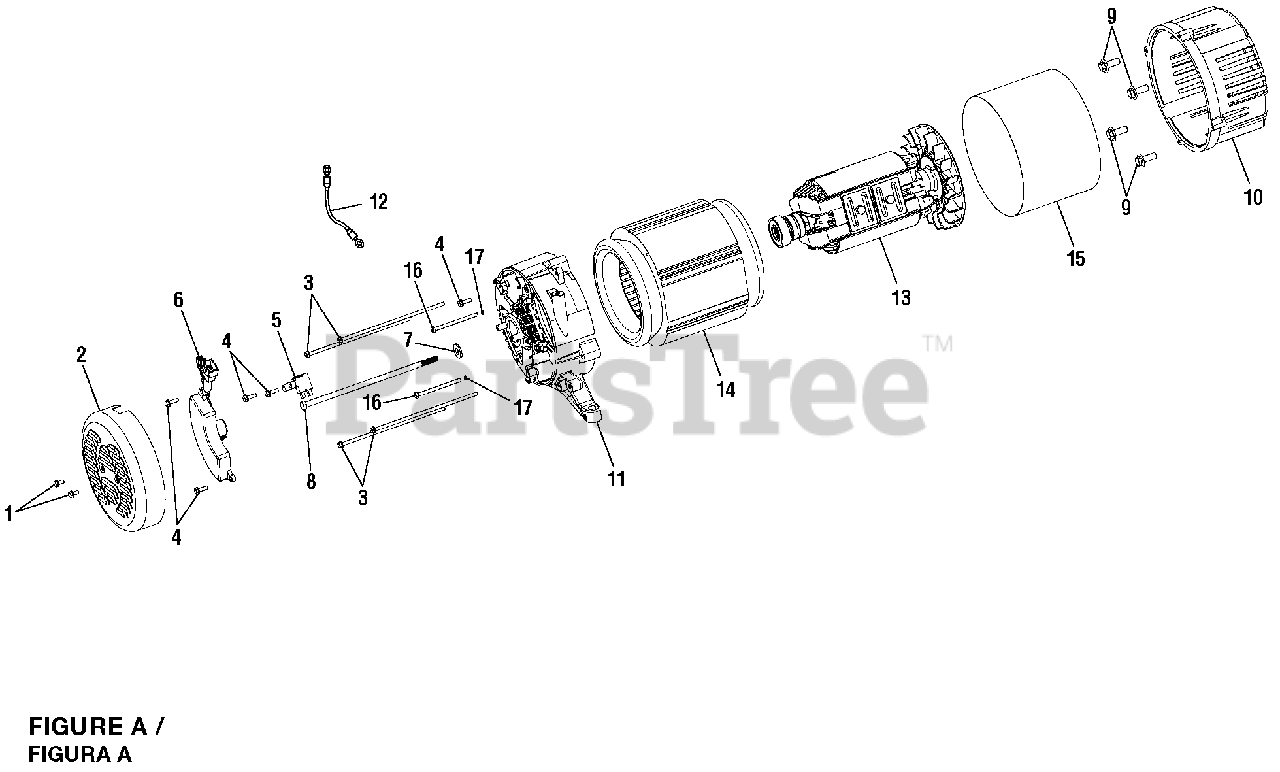

Figure A Parts Diagram

  • Title
1

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

2

Homelite 678296002

Brush Cover

$

$

Not available

3

Homelite 660869006

Bolt (M6 x 164 mm)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 661603002

Bolt (M5 x 16 mm, Flange Hex Hd.)

$

$

Not available

5

Homelite 290441001

Brush Assembly

$

$

Not available

6

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

7

Homelite 638128002

Washer ( 5/16 in.)

$

$

Not available

8

Homelite 661557009

Bolt (5/16-24 x 215 mm, Hex. Hd.)

$

$

Not available

9

Homelite 660596002

Bolt (3/8-18 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 640331002

Engine Adapter

$63.99

$

Usually ships in 3-7 days

0

11

Homelite 678289008

Bearing Support

$103.99

$

Usually ships in 3-7 days

0

12

Homelite 290455002

Bonding Wire

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 310771015

Rotor Assembly
(Superseded to 310227016)

$533.99

$

In Stock, only 1 left!

0

14

Homelite 310772014

Stator Assembly
(Superseded to 310227016)

$533.99

$

In Stock, only 1 left!

0

15

Homelite 638624006

Generator Head Cover

$

$

Currently unavailable

16

Homelite 661603010

Bolt (M5 x 75 mm)

$

$

Not available

17

Homelite 678263001

Lock Washer (M5)

$2.49

$

Usually ships in 3-7 days

0

Homelite 570766002

Rubber Boot

Note: Not Shown

$

$

Not available

Homelite 900333015

Wire Tie

Note: Not Shown

$

$

Not available
