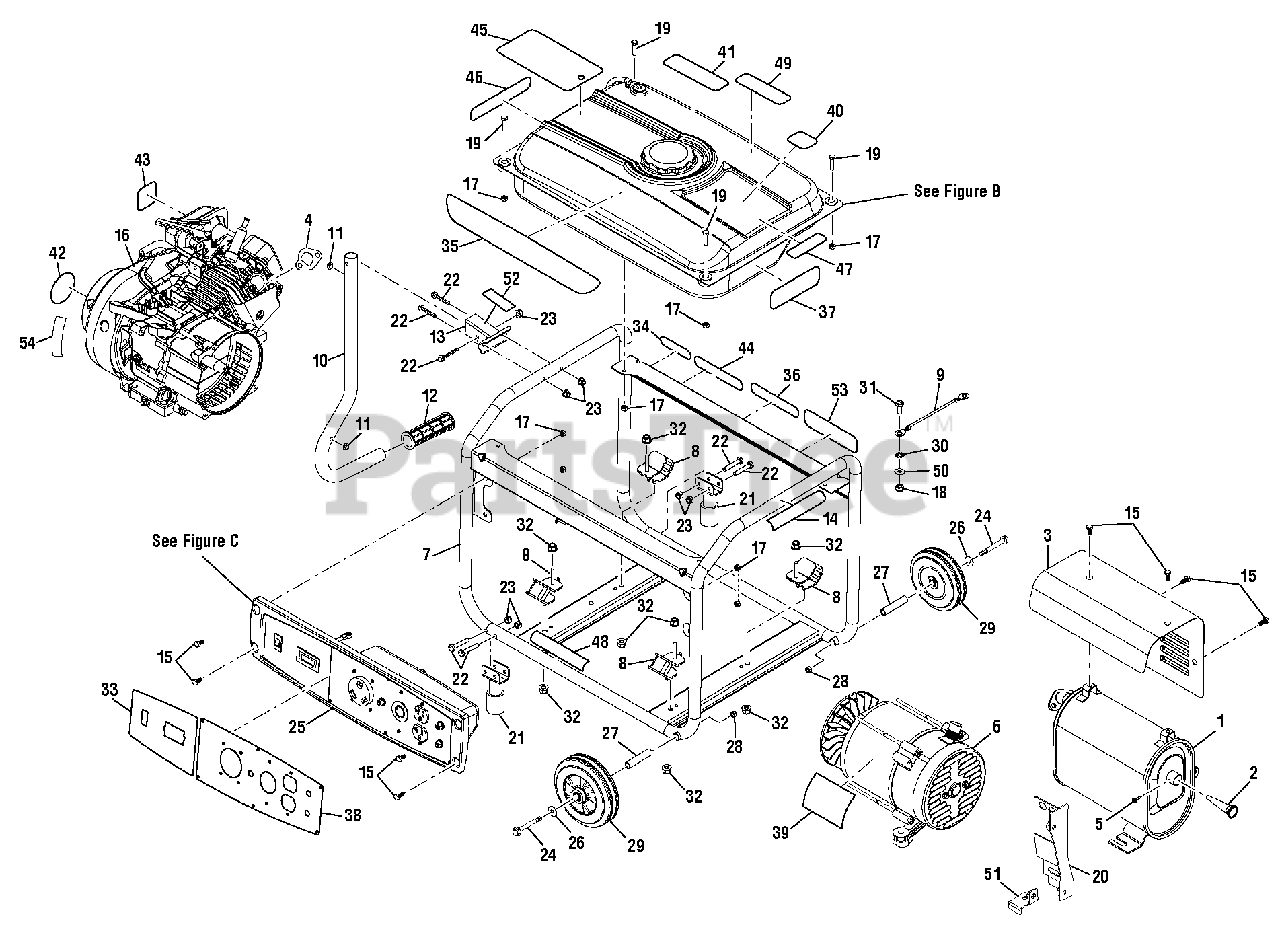

UT-903655 DA (990000674) - Homelite 3,500 Watt Generator Figure A Parts Diagram

3,500 Watt Generator

Figure A Parts Diagram

  • Title

1

Homelite 309322025

Muffler

$79.99

$

Usually ships in 3-7 days

0

2

Homelite 638147007

Spark Screen

$2.99

$

In Stock, only 1 left!

0

3

Homelite 638539004

Heat Shield

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 678728004

Exhaust Gasket

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 661404001

Set Screw (Spark Arrestor)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 310227047

Generator Head Assembly

$679.99

$

Usually ships in 3-7 days

0

7

Homelite 301459009

Carrier Assembly

$

$

Not available

8

Homelite 679940001

Isolators (45deg)

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 290404001

Ground Wire Assembly

$

$

Not available

10

Homelite 310224057

Handle Assembly

Note: (Inc. Key Nos. 11-13)

$

$

Not available

11

Homelite 570371008

Handle Bumper

$

$

Not available

12

Homelite 570371007

Handle Grip

$

$

Not available

13

Homelite 638702025

Handle Bracket

$10.99

$

Usually ships in 3-7 days

0

14

Homelite 940974089

Fire Distance Label

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 660481005

Screw (M6 x 14 mm)

$

$

Not available

16

Engine (Ducar DJ170F, 2014)

Note: NOTE A: Homelite Consumer Products, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

17

Homelite 411071001

Lock Nut (M6)

$

$

Currently unavailable

18

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 660154001

Bolt (M6 x 20 mm, Hex Hd.)

$2.99

$

In Stock, only 4 left!

0

20

Homelite 638777012

Muffler Bracket

$6.49

$

Usually ships in 3-7 days

0

21

Homelite 310739010

Foot Assembly

$

$

Not available

22

Homelite 661503003

Bolt (1/4-20 x 1.5 in.)

$2.99

$

In Stock, only 4 left!

0

23

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

24

Homelite 661558002

Bolt (3/8-16 x 4.25 in.)

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 290403052

Panel Assembly

$

$

Not available

26

Homelite 638386003

Washer (3/8 in.)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 638498001

Spacer

$5.49

$

Usually ships in 3-7 days

0

28

Homelite 678659001

Lock Nut (3/8-16)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 308451030

Wheel (7 in.)

$

$

Not available

30

Homelite 638704001

Star Washer (5/16 in.)

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 661502005

Bolt (5/16-18 x 19 mm)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 678774002

Flange Nut (M8)

$

$

Not available

33

Homelite 940040038

Control Panel Label (Left)

$

$

Not available

34

Homelite 941486007

Homelite Label

$

$

Not available

35

Homelite 940705209

Logo Label

$

$

Not available

36

Homelite 940680034

Hot Surface Label
(Superseded to 940680027)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 940947003

Combustion Label (Eng/Fr/Sp)

$

$

Not available

38

Homelite 940040039

Control Panel Label (Right)

$

$

Not available

39

Homelite 940678346

Data Label

$

$

Currently unavailable

40

Homelite 940872003

E85 Label

$1.99

$

In Stock, only 2 left!

0

41

Homelite 940515020

CPSC Label

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 940633013

Recoil Housing Label

$4.49

$

Usually ships in 3-7 days

0

43

Homelite 940633031

Choke Label

$

$

Not available

44

Homelite 940513027

Ground Warning Label

$

$

Not available

45

Homelite 940971087

Danger hangtag

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940617128

Engine Start Label

$

$

Not available

47

Homelite 940974007

Fire Danger Label

$

$

Not available

48

Homelite 940708019

Lubricant Label

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 940707103

Warning Label

$

$

Not available

50

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

51

Homelite 638777011

Muffler Bracket (Gen Head)

$2.99

$

Usually ships in 3-7 days

0

52

Homelite 940514001

Lock Pin Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 941731001

Homelite Click Label

$

$

Not available

54

Homelite 940803161

Evaporative Label

$

$

Currently unavailable

Homelite 990000672

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
