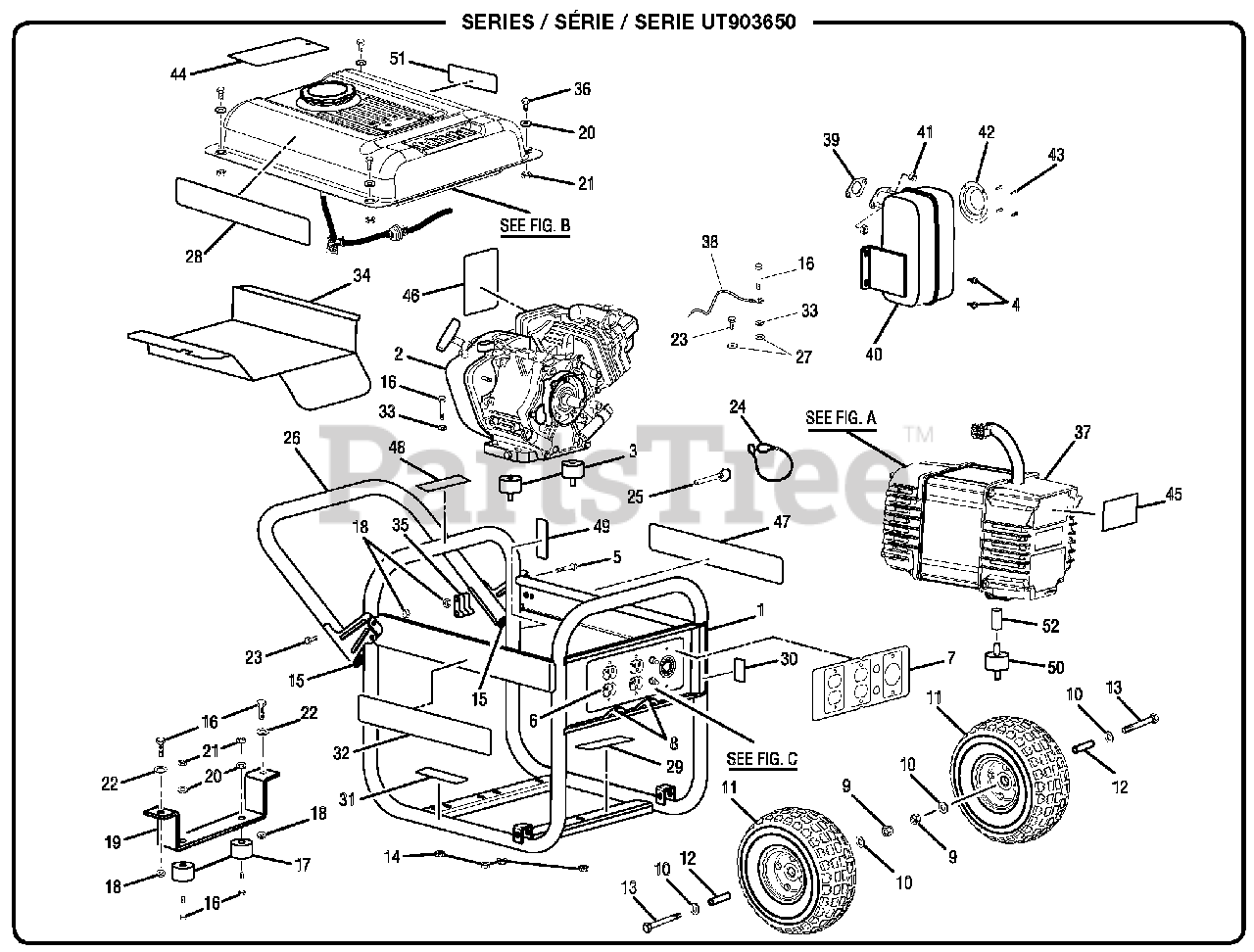

UT-903650 - Homelite 3,650 Watt Generator General Assembly Parts Diagram

3,650 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310222003

Carrier Assembly

$

$

Not available

2

Engine (Subaru OHC)

Note: NOTE A: Homelite Consumer Products, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

3

Homelite 570356001

Isolator

$

$

Not available

4

Homelite 660599002

Bolt (5/16-24 x 5/8 in)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 660591004

Bolt (5/16-18 x 2-1/4 in, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 290403024

Control Panel (See Fig C)

$114.99

$

Usually ships in 3-7 days

0

7

Homelite 940780045

Control Panel Label

$

$

Currently unavailable

8

Homelite 678655001

Cord Retainer

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678457003

Lock Nut (3/8-16)

$

$

Not available

10

Homelite 638386003

Washer (3/8 in)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 310223002

Wheel

$

$

Not available

12

Homelite 678672002

Spacer (3/8 in ID)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 678259003

Lock Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 519712001

End Cap

$

$

Not available

16

Homelite 660591006

Bolt (5/16-18 x 1-1/2 in)

$2.49

$

In Stock, only 3 left!

0

17

Homelite 570355001

Rubber Foot

$

$

Not available

18

Homelite 678145002

Flange Nut (5/16-18)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 678505003

Foot Bracket

$11.99

$

Usually ships in 3-7 days

0

20

Homelite 638387002

Washer (1/4 in)

$

$

Not available

21

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

22

Homelite 638675004

Washer (5-16 in)
(Superseded to 638675003)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 661502005

Bolt (5/16-18 x 3/4 in, Hex Hd)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 310715001

Lanyard

$

$

Not available

25

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

26

Homelite 310224003

Handle

$

$

Not available

27

Homelite 638704001

External Star Washer (5/16 in)

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 940515016

CPSC Label

$11.99

$

Usually ships in 3-7 days

0

29

Homelite 940513008

Ground Warning Label

$

$

Not available

30

Homelite 940680021

Hot Surface Label

$

$

Not available

31

Homelite 940708007

Engine Lubricant Label

$

$

Not available

32

Homelite 940705143

Logo Label

$

$

Not available

33

Homelite 638578002

Lock Washer (5/16 in)

$7.99

$

Usually ships in 3-7 days

0

34

Homelite 638497002

Heat Shield

$

$

Not available

35

519728001

Handle Bracket Spacer

$

$

Not available

36

Homelite 661503005

Bolt (1/4-20 x 1 in)

$2.49

$

In Stock, only 2 left!

0

37

Homelite 310227008

Generator Head Assembly (See Fig A)

$

$

Not available

38

Homelite 290404001

Ground Wire Assembly

$

$

Not available

39

Homelite 901687001

Gasket

$

$

Not available

40

Homelite 309323001

Muffler

$

$

Not available

41

Homelite 678654001

Hex Nut (8 mm)

$

$

Currently unavailable

42

Homelite 638147003

Spark Screen

$

$

Not available

43

Homelite 661300001

Screw (#8 x 3/8 in)

$

$

Not available

44

Homelite 961030006

Danger Hang Tag

$

$

Not available

45

Homelite 940678207

Data Label

$

$

Not available

46

Homelite 940617032

Start Label

$

$

Not available

47

Homelite 940707081

Danger Label

$

$

Not available

48

Homelite 940974007

Fire Danger Label

$

$

Not available

49

Homelite 940514005

Lock Pin Label
(Superseded to 940514001)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 570356002

Isolator

$

$

Not available

51

Homelite 940947003

Combustion Label

$

$

Not available

52

Homelite 678672001

Spacer (3/8 in ID)

$2.49

$

Usually ships in 3-7 days

0

Homelite 988000457

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable
