UT-902250 - Homelite 2,250 Watt Generator Figure A Parts Diagram

2,250 Watt Generator

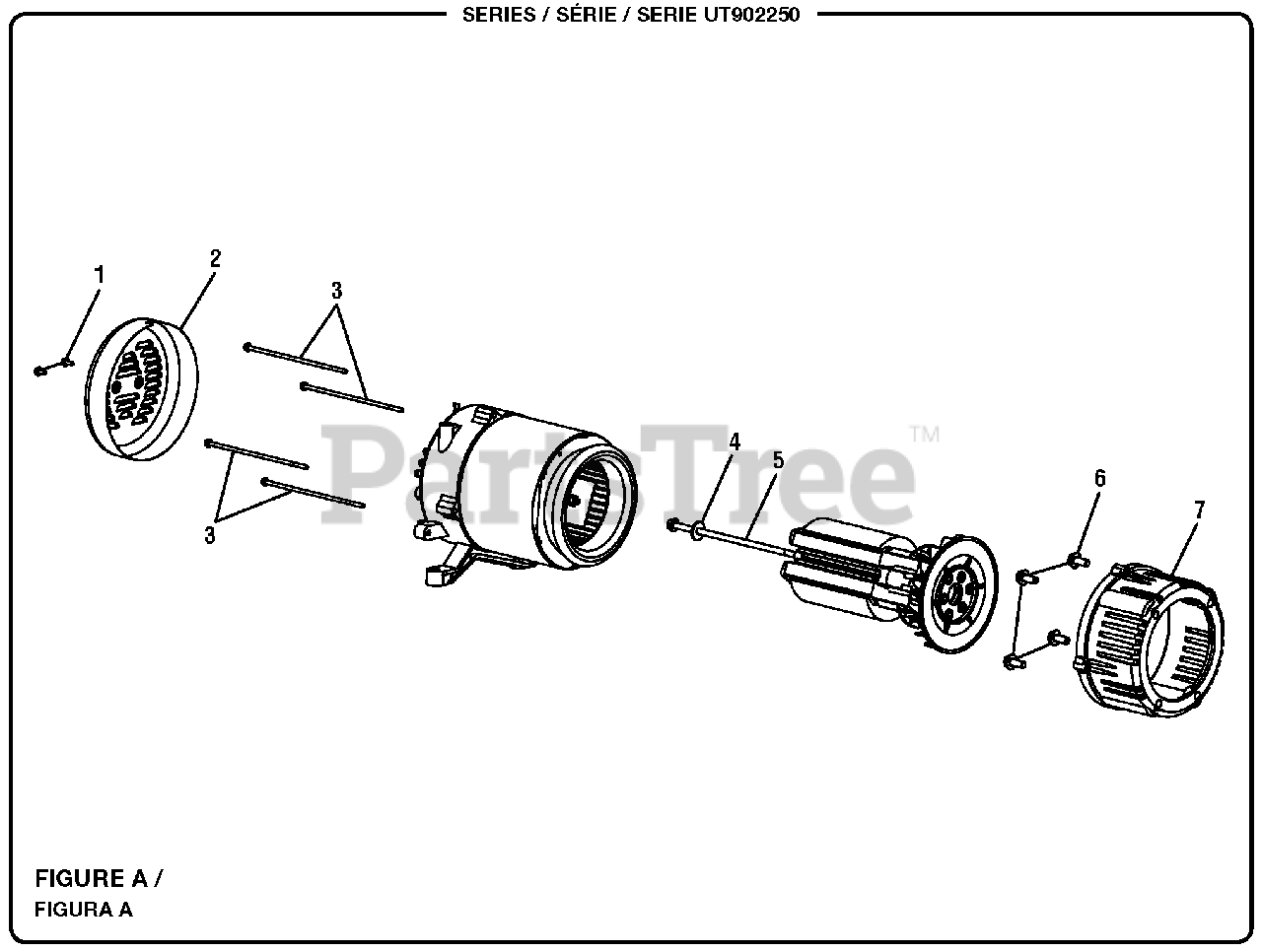

Figure A Parts Diagram

  • Title
1

Homelite 661603001

Bolt (M5 x 10 mm, Flange Hex Hd.)

$

$

Not available

2

Homelite 678296002

Brush Cover

$

$

Not available

3

Homelite 660869006

Bolt (1/4-20 x 6 in., Hex. Hd.)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 638678002

Lock Washer (5/16 in.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 661557003

Bolt (5/16-24 x 6-5/8 in., Hex. Hd.)

$

$

Not available

6

Homelite 660596002

Bolt (3/8-16 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 640331002

Engine Adapter

$63.99

$

Usually ships in 3-7 days

0
