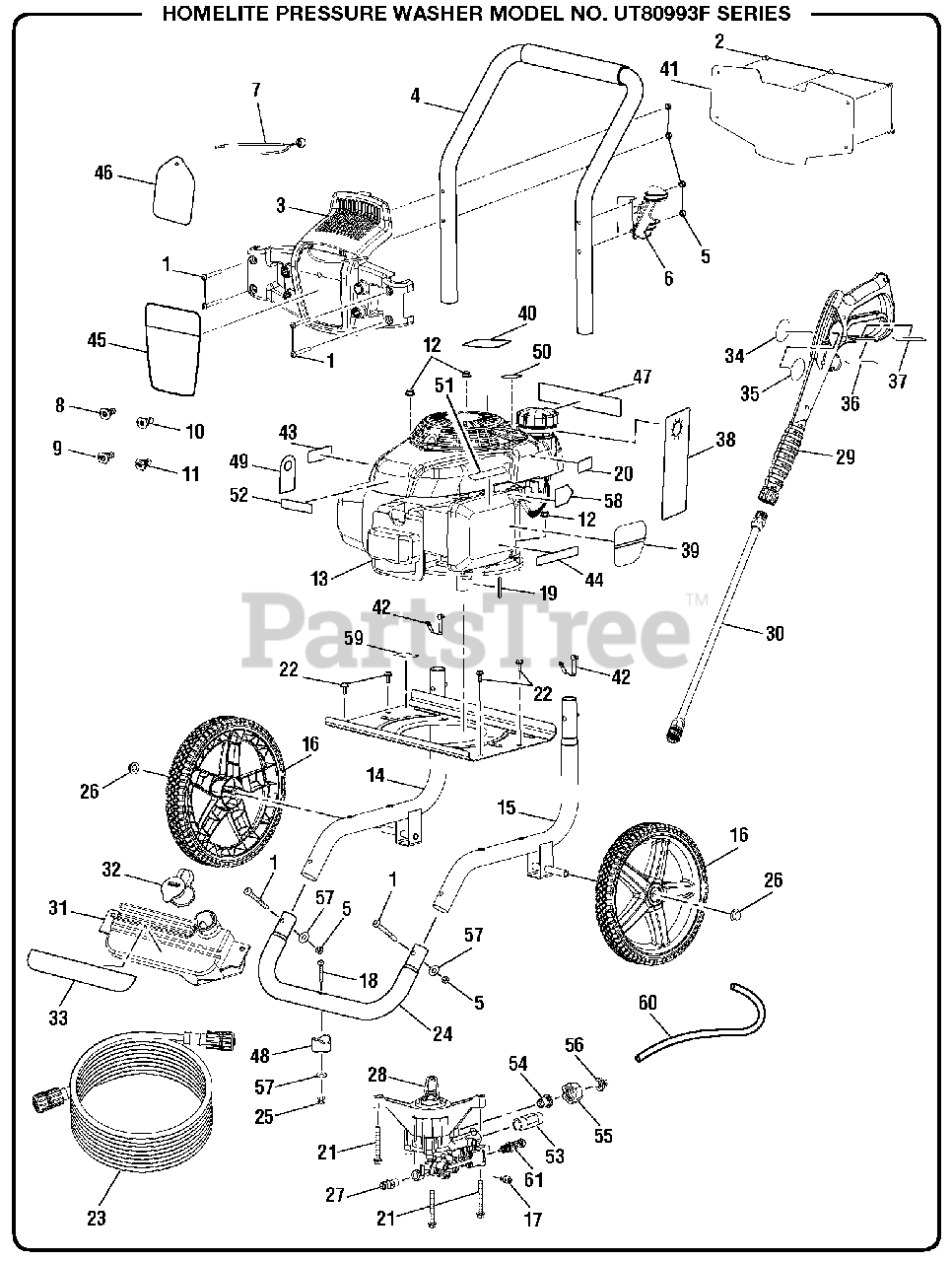

UT-80993 F - Homelite Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 660923016

Screw (#6-20)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 310673006

Hose and Nozzle Holder

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$47.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313009

Wand Holder

$

$

Not available

7

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

8

Homelite 308700030

40deg Nozzle

$18.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

10

Homelite 308699029

25deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

11

Homelite 308697029

0deg Nozzle

$8.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Engine (Honda GCV 160, 160cc OHC Vertical)

Note: Homelite Consumer Products, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

14

Homelite 310703012

Main Frame Assembly A

Note: (Includes Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310704013

Main Frame Assembly B

Note: (Includes Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

16

Homelite 308451053

Wheel
(Superseded to 308451067)

$24.99

$

Usually ships in 3-7 days

0

17

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

18

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 940899003

Do Not Mix Label

$

$

Not available

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 661505020

Bolt (M6 x 16 mm)

$

$

Not available

23

Homelite 308835006

Hose (25 ft., 3100 psi)

$58.99

$

Usually ships in 3-7 days

0

24

Homelite 310742011

Front Frame

Note: (Includes Key No. 18, 25, 48 and 57)

$20.99

$

Usually ships in 3-7 days

0

25

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

26

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653052

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 580875008

Soap Tank

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

33

Homelite 941608001

Soap Dilution Label

$2.99

$

In Stock, Qty 5

0

34

Homelite 940786016

Label (Wand Logo)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Label (Wand Warning)

$2.99

$

In Stock, only 1 left!

0

36

Homelite 940654228

Warning Label (Fr/Sp)

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 940786006

Label (Wand Rating)

$

$

Not available

38

Homelite 940473002

Danger Hangtag

$

$

Not available

39

Homelite 940698019

Engine Control Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940947010

Combustion Label

$21.99

$

Usually ships in 3-7 days

0

41

Homelite 524408007

Quick Start Panel

$4.49

$

Usually ships in 3-7 days

0

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940779073

Performance Label

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 961039005

Nozzle Hangtag

$

$

Not available

47

Homelite 940894012

Danger Label

$15.99

$

Usually ships in 3-7 days

0

48

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 961454001

Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 940324014

Inquiries Label

$

$

Not available

52

Homelite 941714004

Honda Brand Label

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

54

Homelite 642058001

Inlet Filter Connector

$4.49

$

Usually ships in 3-7 days

0

55

Homelite 310993003

Collar

$5.49

$

Usually ships in 3-7 days

0

56

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

57

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

58

Homelite 941550005

Engine On/Off Label

$

$

Not available

59

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

61

Homelite 310924003

Unloader Valve Assembly

$30.99

$

In Stock, only 1 left!

0

Homelite 120900147

Pump Protector (4 oz., Not Included)

Note: Not Shown

$

$

Not available

Homelite 990000739

Operator's Manual

$

$

Currently unavailable

Homelite 990000741

Quick Start Guide

$

$

Currently unavailable
