UT-80993 D - Homelite Pressure Washer General Assembly Parts Diagram

Pressure Washer

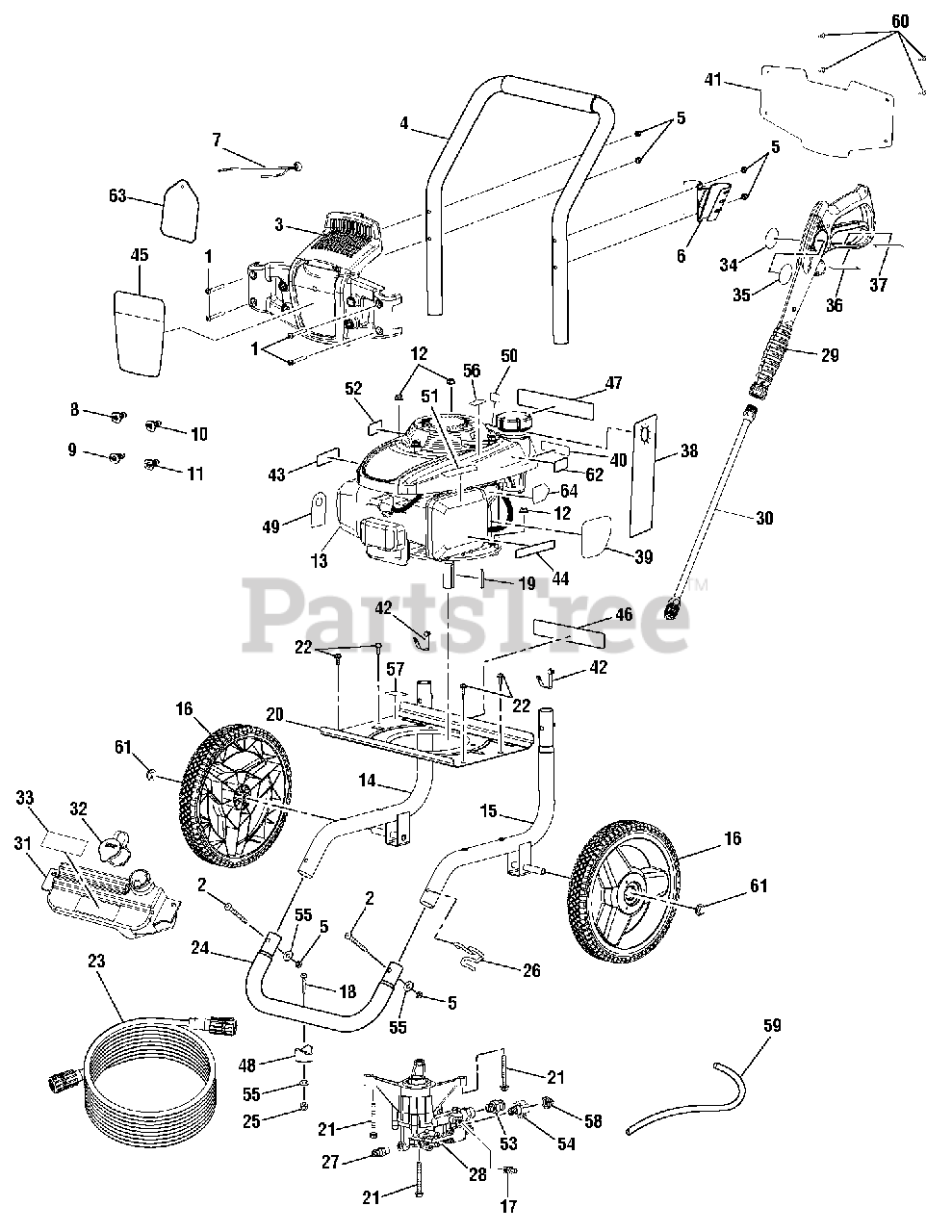

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 48 mm, T30 Torx Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 661834002

Bolt (M6 x 55 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 310673014

Hose and Nozzle Holder Assembly

Note: (Includes Key No. 7)

$

$

Not available

4

Homelite 308638042

Handle w/Foam

$47.99

$

Usually ships in 3-7 days

0

5

Homelite 678610006

Lock Nut (M6)

$

$

Not available

6

Homelite 519313007

Wand Holder

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

8

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

10

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

11

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Engine (Honda GCV 160, 160cc OHC Vertical)

$

$

Not available

14

Homelite 310703012

Main Frame Assembly

Note: (Left, Includes Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

15

Homelite 310704013

Main Frame Assembly

Note: (Right, Includes Key No. 42)

$39.99

$

Usually ships in 3-7 days

0

16

Homelite 308451039

Wheel

$

$

Not available

17

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

18

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638662027

Engine Plate

$31.99

$

In Stock, only 1 left!

0

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 661505020

Bolt (M6 x 16 mm)

$

$

Not available

23

Homelite 308835006

Hose (25 ft., 3100 psi)

$58.99

$

Usually ships in 3-7 days

0

24

Homelite 310742011

Front Frame

Note: (Includes Key No. 1, 25, 48 and 55)

$20.99

$

Usually ships in 3-7 days

0

25

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

26

Homelite 678243014

Wand Holder Loop

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653045

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 580875008

Soap Tank

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

33

Homelite 941608001

Soap Dilution Label

$2.99

$

In Stock, Qty 5

0

34

Homelite 940786016

Label (Wand Logo)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Label (Wand Warning)

$2.99

$

In Stock, only 1 left!

0

36

Homelite 940654089

Fr/Sp Label (Wand Warning)

$1.49

$

In Stock, only 1 left!

0

37

Homelite 940786006

Label (Wand Rating)

$

$

Not available

38

Homelite 940473002

Danger Hangtag

$

$

Not available

39

Homelite 940698019

Engine Control Label

$2.49

$

Usually ships in 3-7 days

0

40

Homelite 940947003

Combustion Label

$

$

Not available

41

Homelite 524408007

Quick Start Panel

$4.49

$

Usually ships in 3-7 days

0

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940779073

Performance Label

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 941531025

Data Label

Note: (UT80993B)

$

$

Currently unavailable

Homelite 941531045

Data Label

Note: (UT80993D)

$

$

Currently unavailable

47

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 961454001

Dipstick Hangtag

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 940324014

Inquiries Label

$

$

Not available

52

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

54

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

55

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

56

Homelite 941613003

Release Water Label

$

$

Not available

57

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

59

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

60

Homelite 660923015

Screw (M3)

$2.49

$

Usually ships in 3-7 days

0

61

Homelite 679957001

Push Cap Nut (1/2 in.)

$

$

Not available

62

Homelite 940899002

Do Not Mix Label

$

$

Not available

63

Homelite 961039005

Nozzle Hangtag

$

$

Not available

64

Homelite 941550005

Engine On/Off Label

$

$

Not available

Homelite 310764004

Air Filter

Note: Not Shown

$

$

Currently unavailable

Homelite 120900147

Pump Protector (4 oz., Not Included)

Note: Not Shown

$

$

Not available

Homelite 987823001

Pump Protector (12 oz., Not Included)
(Superseded to AGPWP04)

Note: Not Shown

$

$

Not available

Homelite 120900148

Fuel Stabilizer (Not Included)

Note: Not Shown

$

$

Currently unavailable

Homelite 990000135

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 990000136

Quick Start Guide

Note: Not Shown

$

$

Not available
