UT-80993 A - Homelite Pressure Washer General Assembly Parts Diagram

Pressure Washer

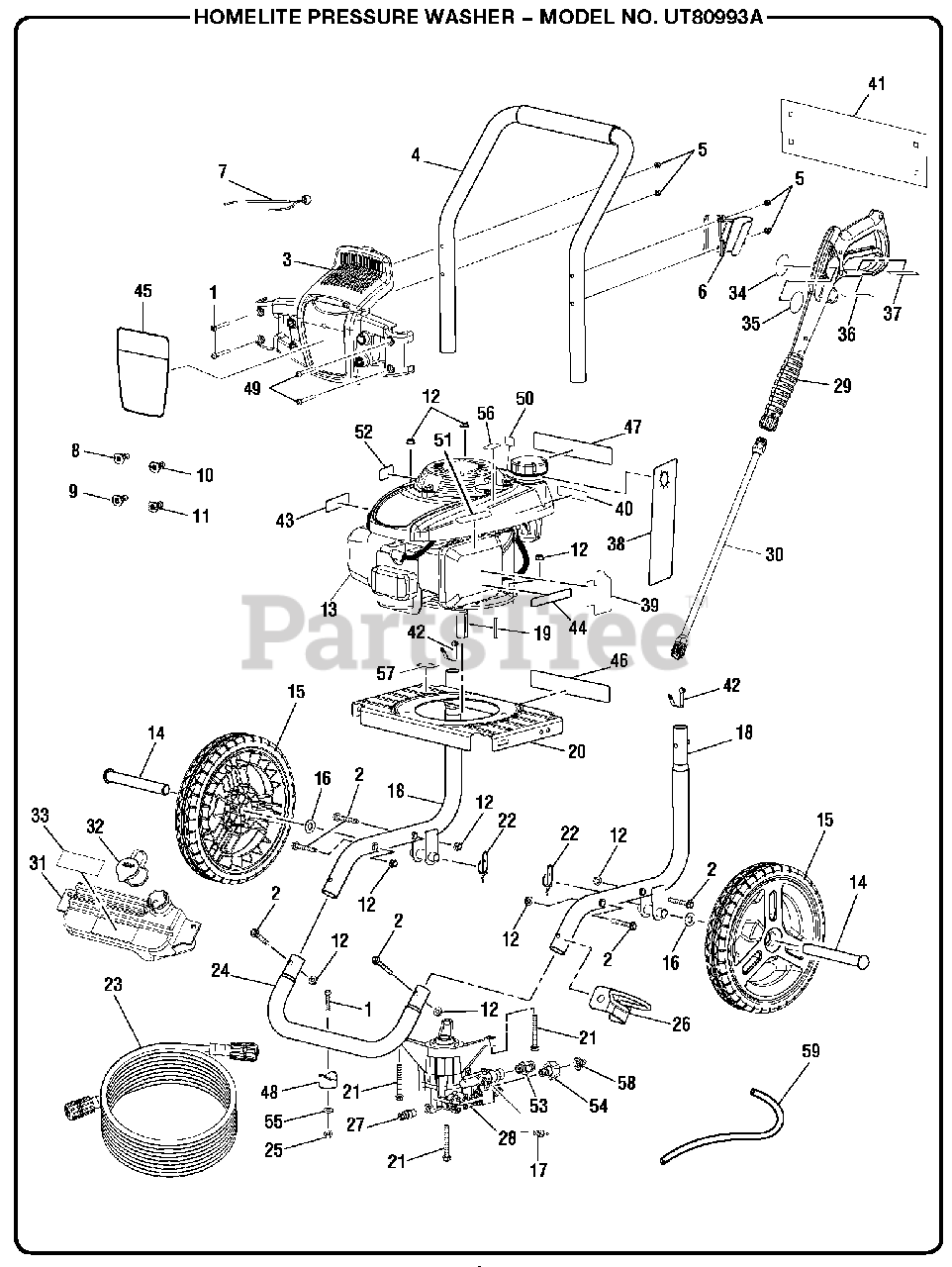

General Assembly Parts Diagram

  • Title

1

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

2

Homelite 660962001

Bolt (M8 x 55 mm)
(Superseded to 660969001)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 310673006

Hose and Nozzle Holder Assembly

Note: (Includes Key No. 7)

$

$

Not available

4

Homelite 308638034

Handle w/Foam
(Superseded to 308638042)

$47.99

$

Usually ships in 3-7 days

0

5

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 310664001

Bungee Cord Assembly

$3.99

$

In Stock, only 3 left!

0

8

Homelite 308700012

40deg Nozzle

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 308706011

Soap Nozzle

$5.49

$

In Stock, only 2 left!

0

10

Homelite 308699012

25deg Nozzle

$7.99

$

Usually ships in 3-7 days

0

11

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$15.99

$

Usually ships in 3-7 days

0

12

Homelite 678774001

Flange Nut (M8 x 1.25)

$2.49

$

Usually ships in 3-7 days

0

13

Engine (Honda GCV 160, 161cc OHC Vertical)

$

$

Not available

14

Homelite 620599007

Axle

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 308451019

Wheel

$

$

Not available

16

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, Qty 5

0

17

Homelite 308452002

Detergent Suction Kit

$5.99

$

In Stock, Qty 5

0

18

Homelite 308471035

Main Frame Assembly

Note: (Includes Key No. 42)

$33.99

$

Usually ships in 3-7 days

0

19

Homelite 678041007

Output Shaft Key (40 mm)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638662003

Engine Plate

$55.99

$

Usually ships in 3-7 days

0

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 678899001

Axle Clip

$

$

Not available

23

Homelite 308907005

Hose (25 ft., 3100 psi)
(Superseded to 308835006)

$58.99

$

Usually ships in 3-7 days

0

24

Homelite 310742011

Front Frame

Note: (Includes Key No. 1, 25, 48 and 55)

$20.99

$

Usually ships in 3-7 days

0

25

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

26

Homelite 678243005

Wand Holder Loop

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653025

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$46.99

$

Usually ships in 3-7 days

0

30

Homelite 308494003

Extension Wand
(Superseded to 308494004)

$

$

Not available

31

Homelite 580875008

Soap Tank

$

$

Not available

32

Homelite 310650004

Soap Tank Cap

$2.99

$

In Stock, only 3 left!

0

33

Homelite 941608001

Soap Dilution Label

$2.99

$

In Stock, Qty 5

0

34

Homelite 940786016

Label (Wand Logo)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 940654084

Label (Wand Warning)

$2.99

$

In Stock, only 1 left!

0

36

Homelite 940654089

Fr/Sp Label (Wand Warning)

$1.49

$

In Stock, only 1 left!

0

37

Homelite 940786020

Label (Wand Rating)
(Superseded to 940786006)

$

$

Not available

38

Homelite 940473002

Danger Hangtag

$

$

Not available

39

Homelite 940617097

Engine Control Label

$

$

Currently unavailable

40

Homelite 940947003

Combustion Label

$

$

Not available

41

Homelite 524408002

Quick Start Panel

$

$

Not available

42

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940803018

EMC Label

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940779073

Performance Label

$3.49

$

Usually ships in 3-7 days

0

46

Homelite 941531019

Data Label

$

$

Currently unavailable

47

Homelite 940894004

Danger Label

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 570554002

Wear Pad

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 661501007

Screw (1/4-20 x 2 in., T30 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 940324014

Inquiries Label

$

$

Not available

52

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

54

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 3 left!

0

55

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

56

Homelite 941613003

Release Water Label

$

$

Not available

57

Homelite 940871002

Oil Fill Location Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

59

Homelite 570728006

Chemical Siphon Tube

$

$

Not available

Homelite 120900147

Pump Protector (4 oz., Not Included)

Note: Not Shown

$

$

Not available

Homelite 987823001

Pump Protector (12 oz., Not Included)
(Superseded to AGPWP04)

Note: Not Shown

$

$

Not available

Homelite 120900148

Fuel Stabilizer (Not Included)

Note: Not Shown

$

$

Currently unavailable

Homelite 988000721

Operator's Manual

Note: Not Shown

$

$

Not available
