UT-80953 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

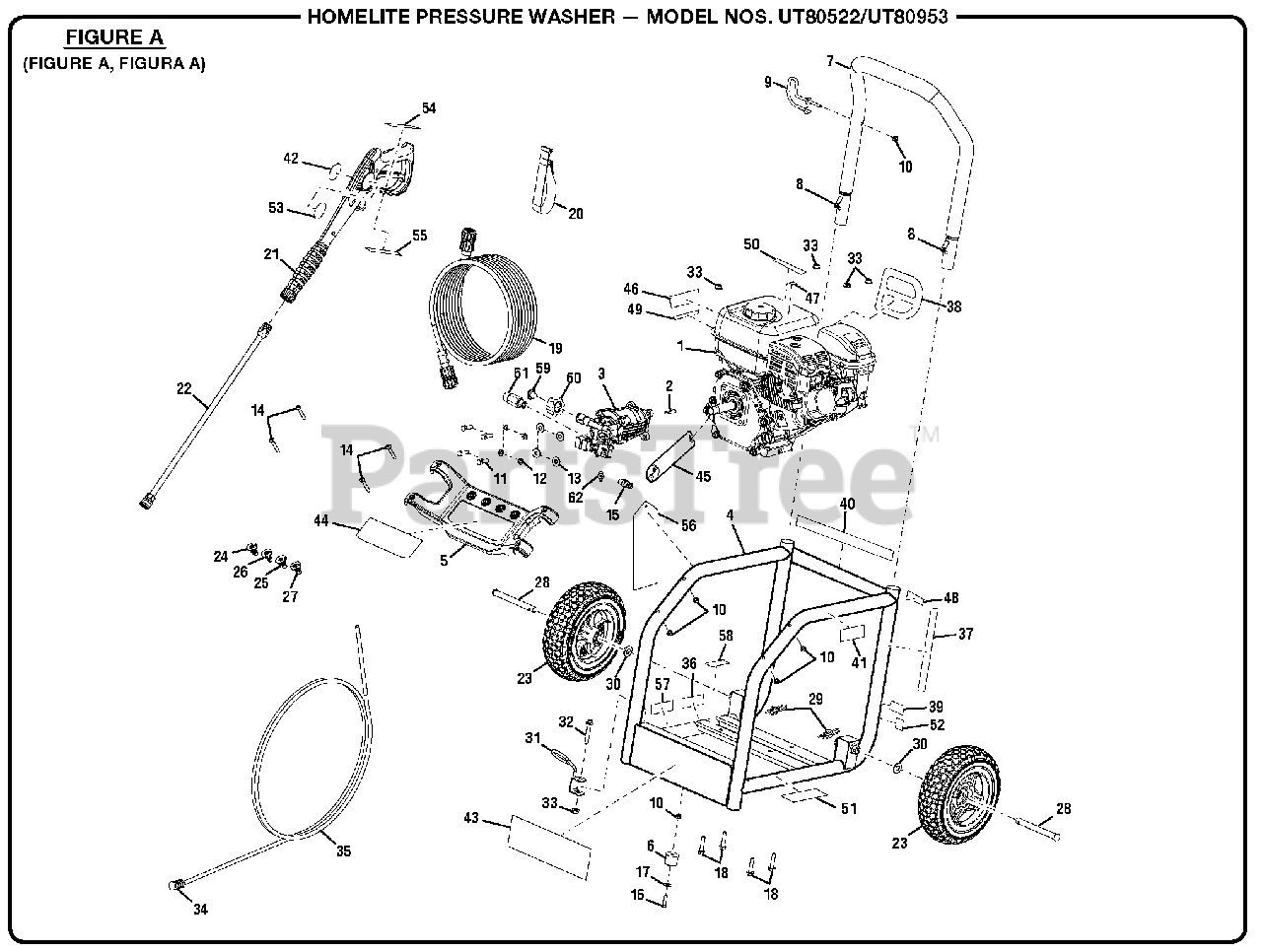

Figure A Parts Diagram

  • Title

1

Homelite 309591066

Engine

$

$

Not available

2

Homelite 678041002

Output Shaft Key (3/16 x 35 mm)
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308418005

Pump
(Superseded to 308418007)

$

$

Not available

4

Homelite 308582026

Main Frame

$

$

Not available

5

Homelite 518790009

Nozzle Holder

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 561307003

Rubber Foot

$

$

Not available

7

Homelite 308638023

Handle Assembly

Note: (Inc. Key No. 8)

$

$

Not available

8

Homelite 308421004

Lock Button w/Spring Clip

$

$

Not available

9

Homelite 308316002

Wand Holder (Upper)

$

$

Not available

10

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 661557011

Bolt (5/16-24 x 27 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638678001

Lock Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

13

Homelite 638675002

Washer (5/16 in.)

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 661503013

Screw (1/4-20 x 2.0 in., Torx)

$

$

Not available

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 661503001

Bolt (1/4-20 x 1-1/4 in.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

18

Homelite 660764002

Bolt (M8 x 40 mm, Hex Flange Hd.)

$

$

Not available

19

Homelite 308835006

Hose

$58.99

$

Usually ships in 3-7 days

0

20

Homelite 310801001

Hook and Loop Strap

$3.49

$

In Stock, only 1 left!

0

21

Homelite 308760019

Trigger Handle

$46.99

$

Usually ships in 3-7 days

0

22

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

23

Homelite 308451018

Wheel Assembly (10 in. x 3 in.)

$

$

Not available

24

Homelite 308697013

Nozzle, 0deg

$18.99

$

In Stock, only 1 left!

0

25

Homelite 308700013

Nozzle 40deg

$8.99

$

Usually ships in 3-7 days

0

26

Homelite 308699013

Nozzle 25deg

$11.99

$

Usually ships in 3-7 days

0

27

Homelite 308706006

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

28

Homelite 620599014

Axle

$

$

Not available

29

Homelite 678899001

Hitch Pin

$

$

Not available

30

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, only 1 left!

0

31

Homelite 678243008

Wand Holder (Lower)

$2.99

$

Usually ships in 3-7 days

0

32

Homelite 661505003

Bolt (M8 x 50 mm, Flange Hd.)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 678774001

Lock Nut (M8 x 1.25)

$2.49

$

Usually ships in 3-7 days

0

34

Homelite 518391001

Filter

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 561399003

Chemical Siphon Tube

$2.99

$

Usually ships in 3-7 days

0

36

Homelite 940617071

Pump Start Label

$

$

Not available

37

Homelite 940617072

Engine Start Label

$

$

Not available

38

Homelite 940633005

Recoil Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940647049

Choke Label

$

$

Not available

40

Homelite 940678136

Data Label

$

$

Not available

41

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940705095

Trigger Handle Logo Label
(Superseded to 940786016)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940748005

Homelite Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940779038

Performance Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940871002

Add Oil Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940894001

Danger Label

$

$

Not available

47

Homelite 940895001

E85 Label

$

$

Not available

48

Homelite 940896001

Homelite Inquiries Label
(Superseded to 940324014)

$

$

Not available

49

Homelite 940898001

EMC Compliance Label

$

$

Not available

50

Homelite 940899001

No Oil to Gas Label

$

$

Not available

51

Homelite 940901001

Combustion Label

$

$

Not available

52

Homelite 941494006

Fuel Label

$

$

Not available

53

Homelite 940748006

Trigger Handle Warning Label (French and Spanish)
(Superseded to 940748005)

$1.49

$

Usually ships in 3-7 days

0

54

Homelite 940654137

Warning Label (English)
(Superseded to 940654084)

$2.99

$

In Stock, only 1 left!

0

55

Homelite 940897001

Wand Label (Max Rating)
(Superseded to 940786006)

$

$

Not available

56

Homelite 940473002

Danger Hangtag

$

$

Not available

57

Homelite 940517007

Lubricant Label

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 940871002

Dip Stick Label

$1.99

$

Usually ships in 3-7 days

0

59

Homelite 308662001

Filter Screen

$

$

Not available

60

Homelite 308861003

Inlet Tube

$21.99

$

In Stock, only 2 left!

0

61

Homelite 308862003

Outlet Tube

$8.99

$

Usually ships in 3-7 days

0

62

Homelite 308452002

Detergent Suction Kit

$5.99

$

Usually ships in 3-7 days

0

Homelite 988000351

Operator's Manual (960957010)

Note: Not Shown

$

$

Not available

Homelite 988000352

Replacement Parts List (961032113)

Note: Not Shown

$

$

Not available

Homelite 988000353

Assembly Guide (960459005)

Note: Not Shown

$

$

Not available

Homelite 120900147

Pump Protector (4 oz.)

Note: Not Shown

$

$

Not available

Homelite 987823001

Pump Protector (12 oz.)
(Superseded to AGPWP04)

Note: Not Shown

$

$

Not available
